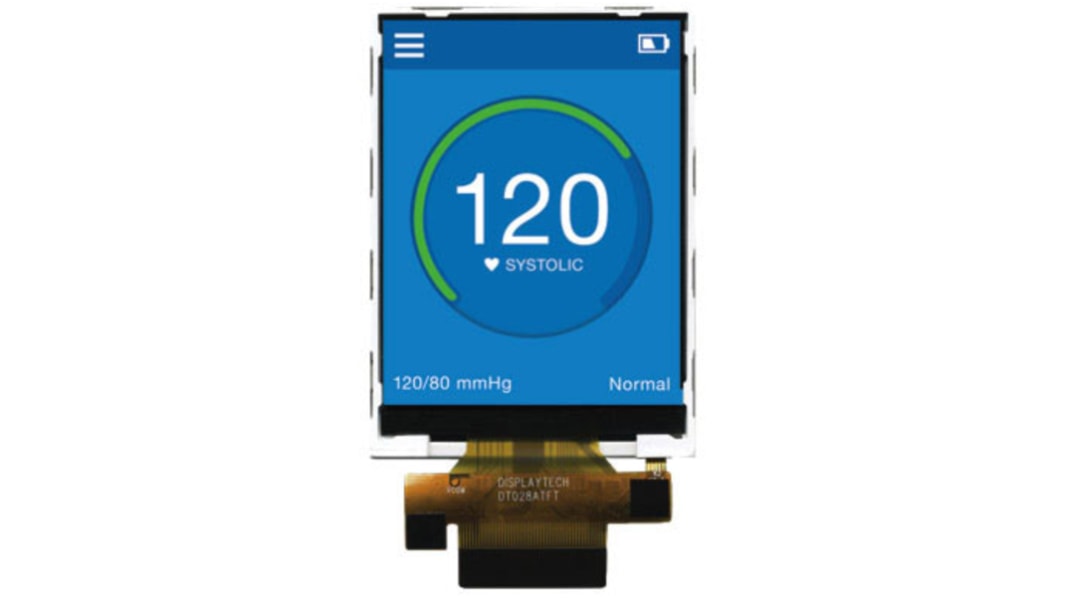

Displaytech DT028ATFT-TS TFT LCD Colour Display / Touch Screen, 2.8in QVGA, 240 x 320pixels

  • RS Stock No. 171-1715
  • Mfr. Part No. DT028ATFT-TS
  • Brand Displaytech
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Displaytech TFT LCD Display Modules

Displaytech's TFT LCD display modules are designed to combine performance with value. These reliable TFT LCD modules are suitable for a wide variety of industrial, medical and consumer applications. The driver ICs are mounted directly on to the glass and are as follows:
1.8" TFT (128x160) - driver IC ILI9163C
2.2", 2.4" and 2.8" TFT (240x320) - driver IC ILI9341
3.5" TFT (320x240) - driver IC NT39016D
4.3" TFT (480x272) - driver IC HX8257-A
The DT024DTFT 2.4" module (135-9775) has an IPS display offering improved colour accuracy, a wider viewing angle, and high refresh rate.

• Transmissive TFT LCD display modules
• LED backlight
• DC voltage input
• Connection to drive the display module is via FPC (Flexible Printed Circuit)
• Operating temperature range: -20 to +70°C
• Viewing direction: 6 o’clock (DT035TFT and DT035TFT-TS are: 12 o’clock)
• Touch screen versions come fitted with a 4 wire resistive touch screen

Note

Suitable 45-way, 0.5mm pitch, 0.3mm thickness (with stiffener) FFC/FPC connectors for use with these Displaytech TFT LCD display modules are: 738-8950, 772-7027 or 772-6756.

Displaytech Colour LCD Graphic Dispalys

Specifications
Attribute Value
Diagonal Display Size 2.8in
Interface Type Parallel, RGB
Resolution 240 x 320pixels
Touch Screen Yes
Viewing Area Dimensions 57.6 x 43.2mm
Supply Voltage -0.3 +4.6 V dc
Touch Screen Type Resistive
Backlight Type LED
Display Mode Transmissive
AC or DC Input Voltage Dc
Dimensions 69.2 x 50 x 4.55mm
Display Matrix Technology TFT
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Graphics Array Type QVGA
Operating Temperature Range -20 +70°C
Height 69.2mm
Viewing Area Width 43.2mm
Response Time 25ms
Depth 4.55mm
Contrast Ratio 500:1
Width 50mm
Brightness 200cd/m²
Aspect Ratio 4:3
Viewing Area Height 57.6mm
Number of Colours 262,144
Available to back order for despatch 23/06/2021
Price Each (In a Box of 225)
£ 19.793
(exc. VAT)
£ 23.752
(inc. VAT)
Units
Per unit
Per Box*
225 +
£19.793
£4,453.425
*price indicative
