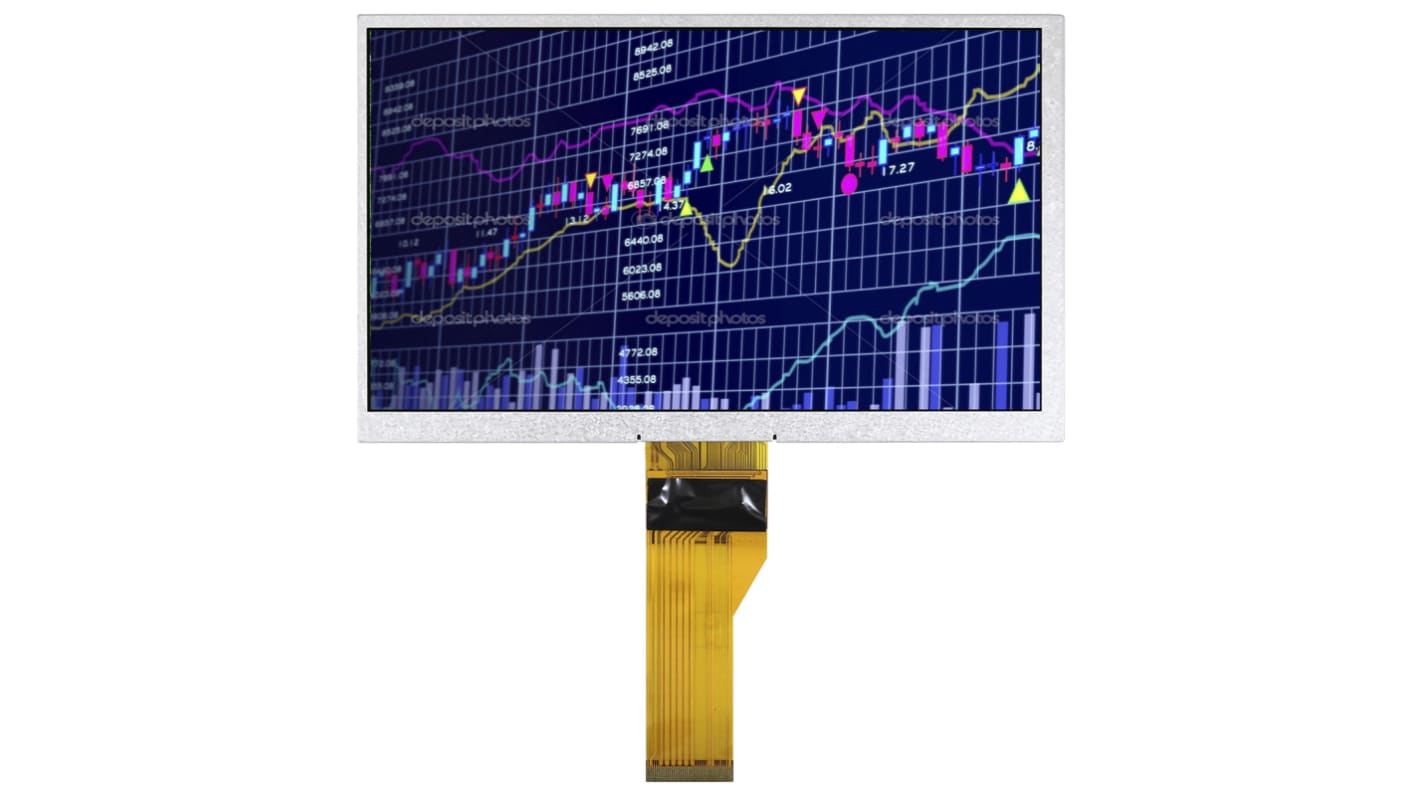

Midas 7in Red, Green, Blue OLED Display 800 x 480pixels Matrix LVDS Interface

  • RS Stock No. 168-8567
  • Mfr. Part No. MCT070LA12W1024600LML
  • Brand Midas
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

These full colour (RGB) displays are available in various resolutions. Orientation includes landscape or portrait versions. Operating temperature ranges include standard (0 to +50 deg C) and wide (-20 to +70 deg C). To meet the demands of customer applications these displays are available with viewing angles of 6 and 12 o'clock. Standard TFTs are transmissive mode but we can also offer hyper amorphous silicon (HAST) modules which are sunlight readable. All of our TFT products include backlighting using either LED or CCFL.

This product is composed of a TFT LCD panel, Driver IC'S, FPC, control board and a backlight unit.

Specifications
Attribute Value
Diagonal Display Size 7in
Viewing Area Dimensions 95.04 x 53.85mm
Display Colours Blue, Green, Red
Resolution 800 x 480pixels
Number of Colours 16.7 Million
Contrast Ratio 500 (Typ.)
Driver Mounting Matrix
Interface Ports LVDS
Dimensions 105.5 x 3.75 x 67.2mm
Depth 3.75mm
Height 67.2mm
Maximum Operating Temperature +70°C
Width 105.5mm
Viewing Area Width 95.04mm
Viewing Area Height 53.85mm
Minimum Operating Temperature -20°C
Series L
Operating Temperature Range -20 +70°C
27 In stock for FREE next working day delivery
Price Each
£ 38.40
(exc. VAT)
£ 46.08
(inc. VAT)
Units
Per unit
1 - 4
£38.40
5 - 9
£35.45
10 - 49
£32.91
50 - 99
£31.56
100 +
£30.72
