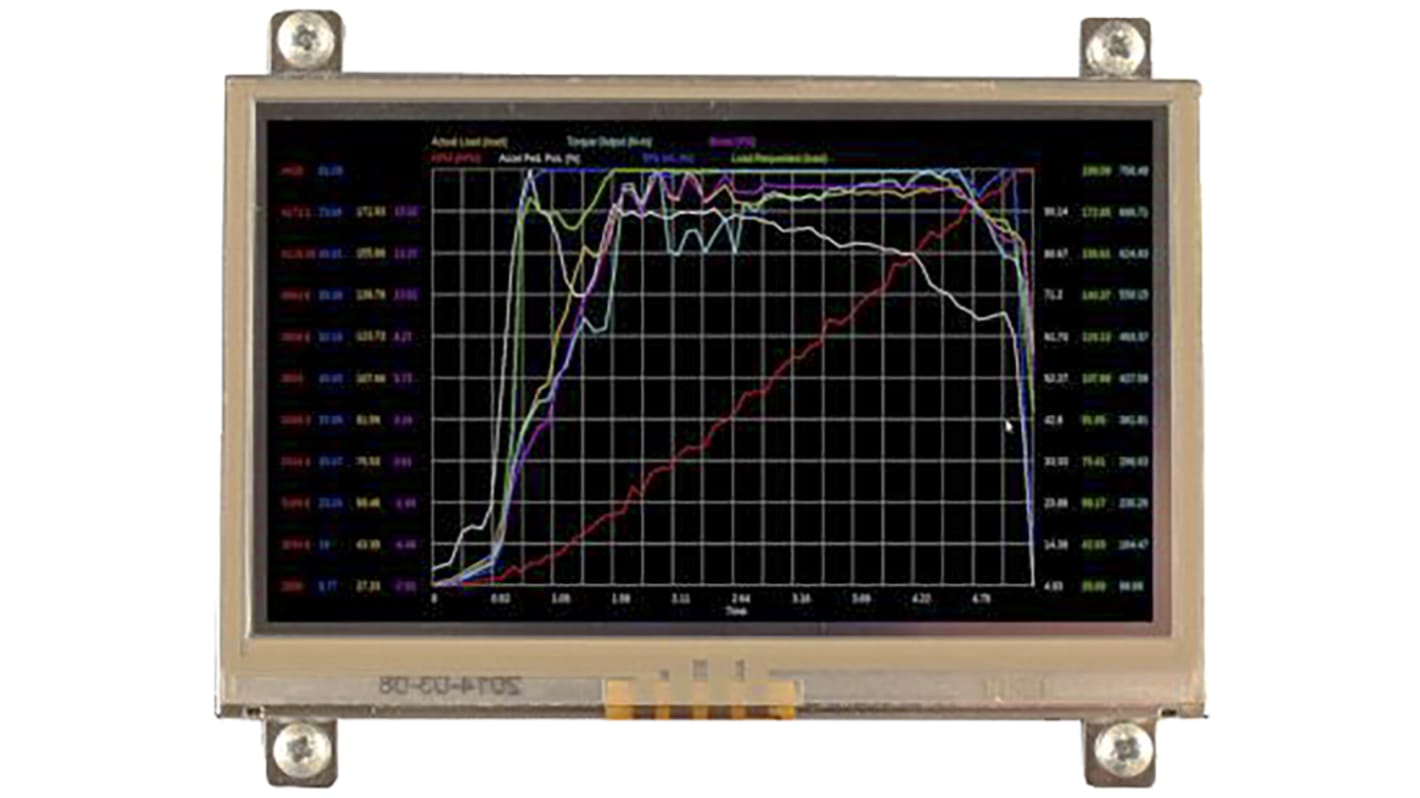

Midas MCT043C12W480272LML LCD Colour Display, 4.3in, 480 x 272pixels

  • RS Stock No. 168-8564
  • Mfr. Part No. MCT043C12W480272LML
  • Brand Midas
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

These full colour (RGB) displays are available in various resolutions. Orientation includes landscape or portrait versions. Operating temperature ranges include standard (0 to +50 deg C) and wide (-20 to +70 deg C). To meet the demands of customer applications these displays are available with viewing angles of 6 and 12 o'clock. Standard TFTs are transmissive mode but we can also offer hyper amorphous silicon (HAST) modules which are sunlight readable. All of our TFT products include backlighting using either LED or CCFL.

This product is composed of a TFT LCD panel, Driver IC'S, FPC, control board and a backlight unit.

Specifications
Attribute Value
Diagonal Display Size 4.3in
Resolution 480 x 272pixels
Viewing Area Dimensions 95.04 x 53.85mm
Dimensions 105.5 x 3.75 x 67.2mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Operating Temperature Range -20 → +70°C
Contrast Ratio 500 (Typ.)
Depth 3.75mm
Viewing Area Width 95.04mm
Width 105.5mm
Series C
Height 67.2mm
Viewing Area Height 53.85mm
Number of Colours 16.7 Million
31 In stock - FREE next working day delivery available
Price Each
£ 27.43
(exc. VAT)
£ 32.92
(inc. VAT)
Units
Per unit
1 - 4
£27.43
5 - 9
£25.32
10 - 49
£23.51
50 - 99
£22.85
100 +
£21.72
