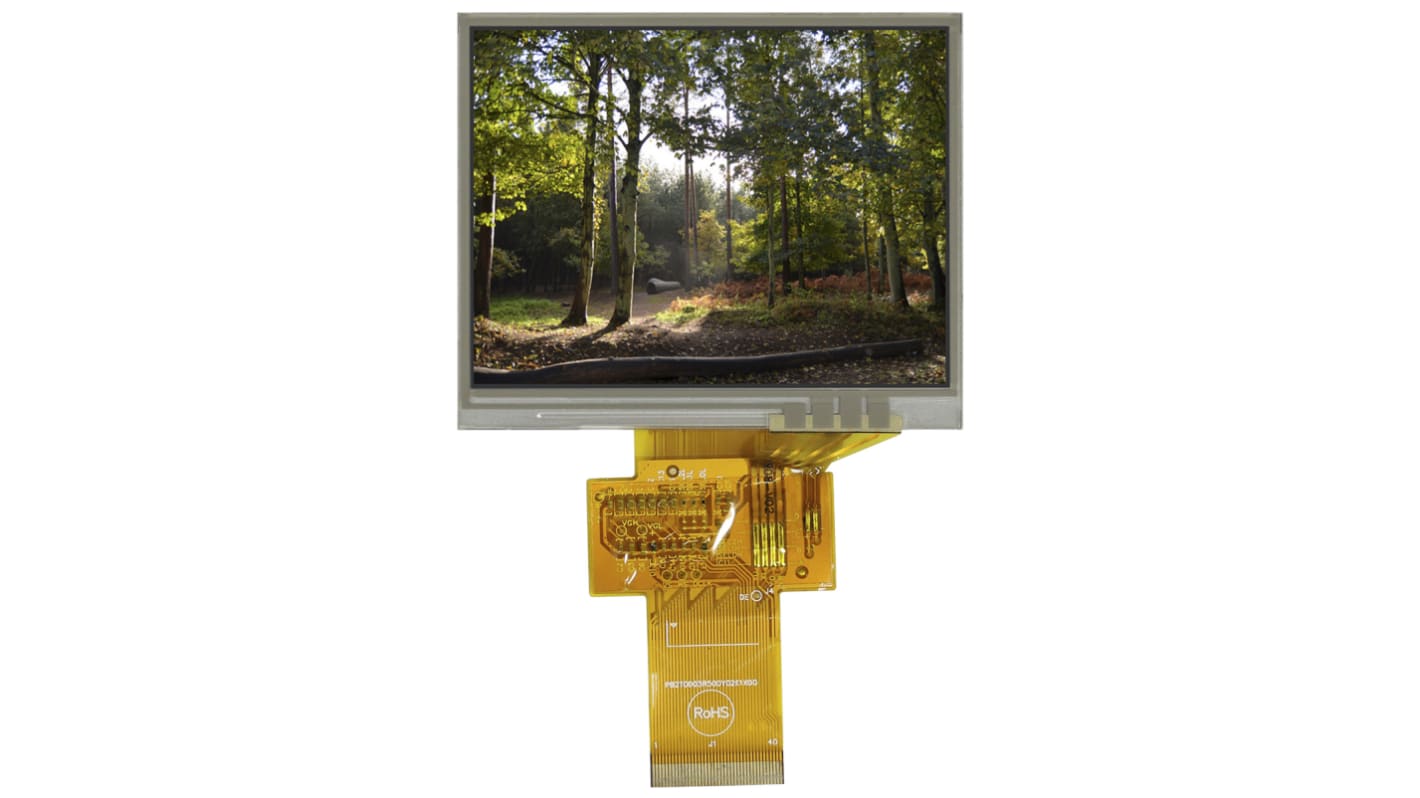

Midas MCT035G12W320240LML LCD Colour Display, 3.5in, 320 x 240pixels

  • RS Stock No. 168-8563
  • Mfr. Part No. MCT035G12W320240LML
  • Brand Midas
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Amphenol range of Thin Film Transistor (TFT) LCD panels in sizes ranging from 1.4" to 12.1". These full colour (RGB) displays are available in various resolutions including 128x128, QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), SVGA (800x600), XGA (1024x768), and SXGA (1280x1024). Orientation includes landscape or portrait versions. Touch screen are optional and are available in resistive and capacitive technology. Operating temperature ranges include standard (0 to +50 deg C) and wide (-20 to +70 deg C). To meet the demands of customer applications these displays are available with viewing angles of 6 and 12 o'clock. Standard TFTs are transmissive mode but we can also offer hyper amorphous silicon (HAST) modules which are sunlight readable.

Specifications
Attribute Value
Diagonal Display Size 3.5in
Resolution 320 x 240pixels
Viewing Area Dimensions 70.08 x 52.56mm
Touch Screen Type None
Dimensions 76.9 x 63.9 x 4.3mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Series G
Contrast Ratio 300
Viewing Area Height 52.56mm
Height 4.3mm
Operating Temperature Range -20 +70°C
Depth 63.9mm
Width 76.9mm
Viewing Area Width 70.08mm
17 In stock for FREE next working day delivery
Price Each
£ 15.84
(exc. VAT)
£ 19.01
(inc. VAT)
Units
Per unit
1 +
£15.84
