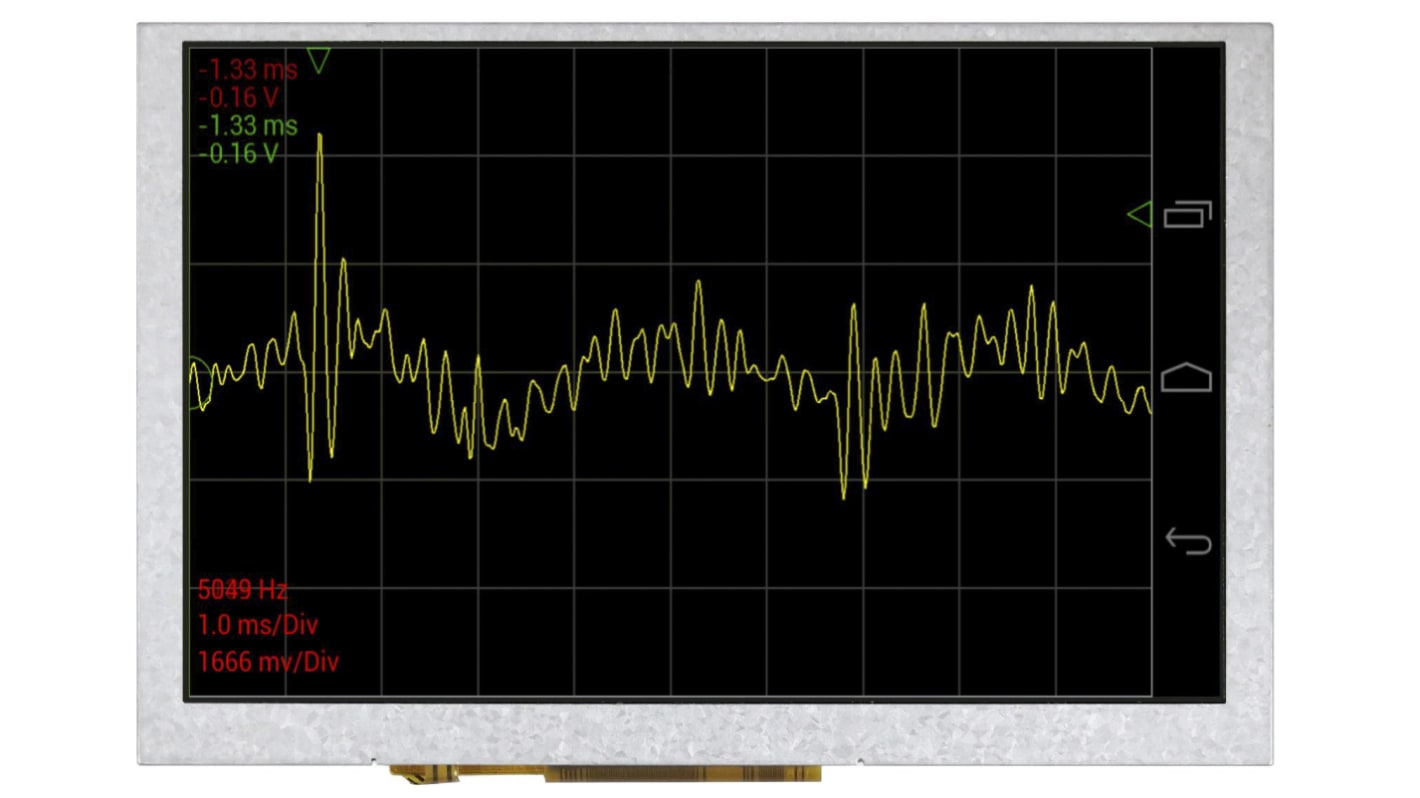

Midas MCT050ACA0CW800480LML TFT LCD Colour Display / Touch Screen, 5in, 800 x 480pixels

  • RS Stock No. 168-5710
  • Mfr. Part No. MCT050ACA0CW800480LML
  • Brand Midas
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

These full colour (RGB) displays are available in various resolutions. Orientation includes landscape or portrait versions. Operating temperature ranges include standard (0 to +50 deg C) and wide (-20 to +70 deg C). To meet the demands of customer applications these displays are available with viewing angles of 6 and 12 o'clock. Standard TFTs are transmissive mode but we can also offer hyper amorphous silicon (HAST) modules which are sunlight readable. All of our TFT products include backlighting using either LED or CCFL.

This product is composed of a TFT LCD panel, Driver IC'S, FPC, control board and a backlight unit.

Specifications
Attribute Value
Diagonal Display Size 5in
Resolution 800 x 480pixels
Touch Screen Yes
Viewing Area Dimensions 117.9 x 89.1mm
Touch Screen Type Capacitive
Supply Voltage 30 V
Backlight Type CCFL, LED
Dimensions 141.12 x 101.55 x 6.3mm
Display Matrix Technology TFT
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Brightness 1500cd/m²
Response Time 30 ms, 50 ms
Viewing Area Width 117.9mm
Depth 101.55mm
Voltage Rating 30V
Width 141.12mm
Operating Temperature Range -20 → +70°C
Contrast Ratio 350
Viewing Area Height 89.1mm
Power Supply Included Yes
Current Rating 8mA
Series A
Height 6.3mm
8 In stock for FREE next working day delivery
Price Each
£ 50.09
(exc. VAT)
£ 60.11
(inc. VAT)
Units
Per unit
1 +
£50.09
