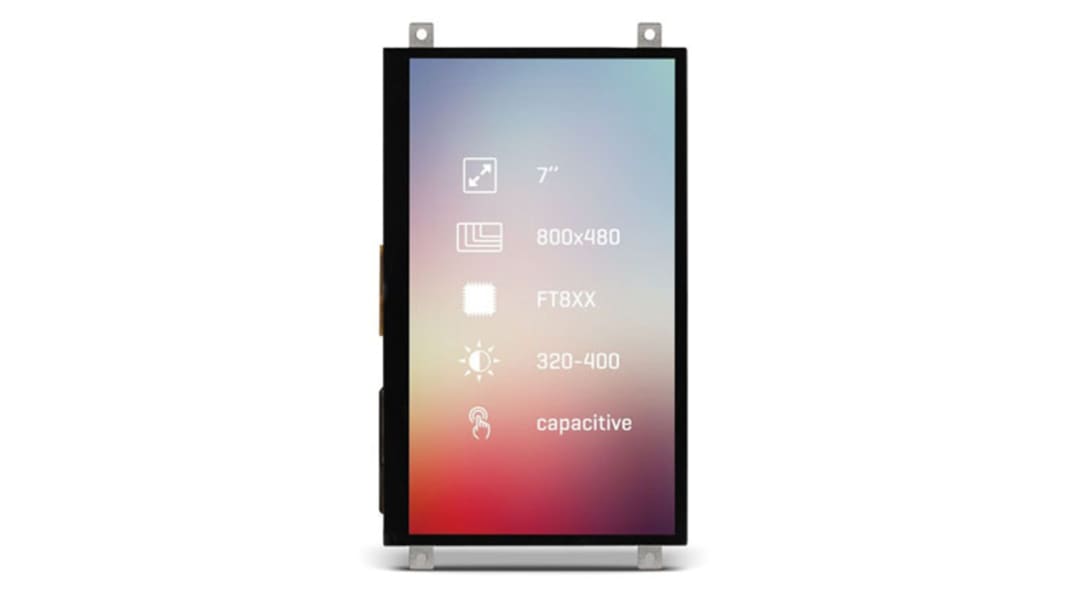

MikroElektronika MIKROE-2176 TFT LCD Colour Display / Touch Screen, 7in, 800 x 480pixels

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CS
Product Details

Riverdi Colour TFT LCD Displays

A range of high quality, cost effective Riverdi colour TFT LCD displays from MikroElektronika. These portrait format displays are suitable for a wide range of industrial and consumer applications and are available in basic or capacitive touch screen versions. Most of the displays are available with a white or black protective bezel. The interface type is I2C/SPI for the 2.8, 3.5 and 4.3 inch displays, and SPI/QSPI for the 5 and 7 inch displays. A MikroElektronika Riverdi click adapter board is available to allow use of the displays with various items of MikroElektronika hardware, see RS 136-0795.

2.82" Displays, 320 x 240 pixels
MIKROE-2156 (139-3629) – Non touchscreen
MIKROE-2158 (139-3630) – Capacitive Touch
MIKROE-2159 (139-3631) – Capacitive Touch with White Bezel
MIKROE-2160 (139-3632) – Capacitive Touch with Black Bezel

3.5" Displays, 320 x 240 pixels
MIKROE-2161 (139-3633) – Non touchscreen
MIKROE-2163 (139-3635) – Capacitive Touch

4.3" Displays, 480 x 272 pixels
MIKROE-2164 (139-3636) – Non touchscreen
MIKROE-2166 (139-3637) – Capacitive Touch
MIKROE-2167 (139-3638) – Capacitive Touch with White Bezel
MIKROE-2168 (139-3639) – Capacitive Touch with Black Bezel

5.0" Displays, 800 x 480 pixels
MIKROE-2169 (139-3641) – Non touchscreen
MIKROE-2171 (139-3642) – Capacitive Touch
MIKROE-2172 (139-3643) – Capacitive Touch with White Bezel
MIKROE-2173 (139-3644) – Capacitive Touch with Black Bezel

7.0" Displays, 800 x 480 pixels
MIKROE-2174 (139-3645) – Non touchscreen
MIKROE-2176 (139-3646) – Capacitive Touch
MIKROE-2177 (139-3647) – Capacitive Touch with White Bezel
MIKROE-2178 (139-3648) – Capacitive Touch with Black Bezel

MikroElektronika Industrial Displays

Specifications
Attribute Value
Diagonal Display Size 7in
Interface Type QSPI, SPI
Resolution 800 x 480pixels
Touch Screen Yes
Viewing Area Dimensions 154.08 x 85.92mm
Supply Voltage 3 → 3.6 V
Touch Screen Type Capacitive
Backlight Type LED
Display Mode Transmissive
AC or DC Input Voltage Dc
Dimensions 165.6 x 100.6 x 11.54mm
Display Matrix Technology TFT
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Depth 11.54mm
Number of Colours 16,777,216
Viewing Area Width 154.08mm
Width 165.6mm
Operating Temperature Range -20 → +70°C
Contrast Ratio 500:1
Viewing Area Height 85.92mm
Current Rating 540mA
Height 100.6mm
Response Time 35ms
Brightness 350cd/m²
3 In stock for FREE next working day delivery
Price Each
£ 123.80
(exc. VAT)
£ 148.56
(inc. VAT)
Units
Per unit
1 - 9
£123.80
10 - 49
£116.18
50 +
£102.05
