- RS Stock No.:
- 615-0858
- Brand:
- RS PRO
- RS Stock No.:
- 615-0858
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

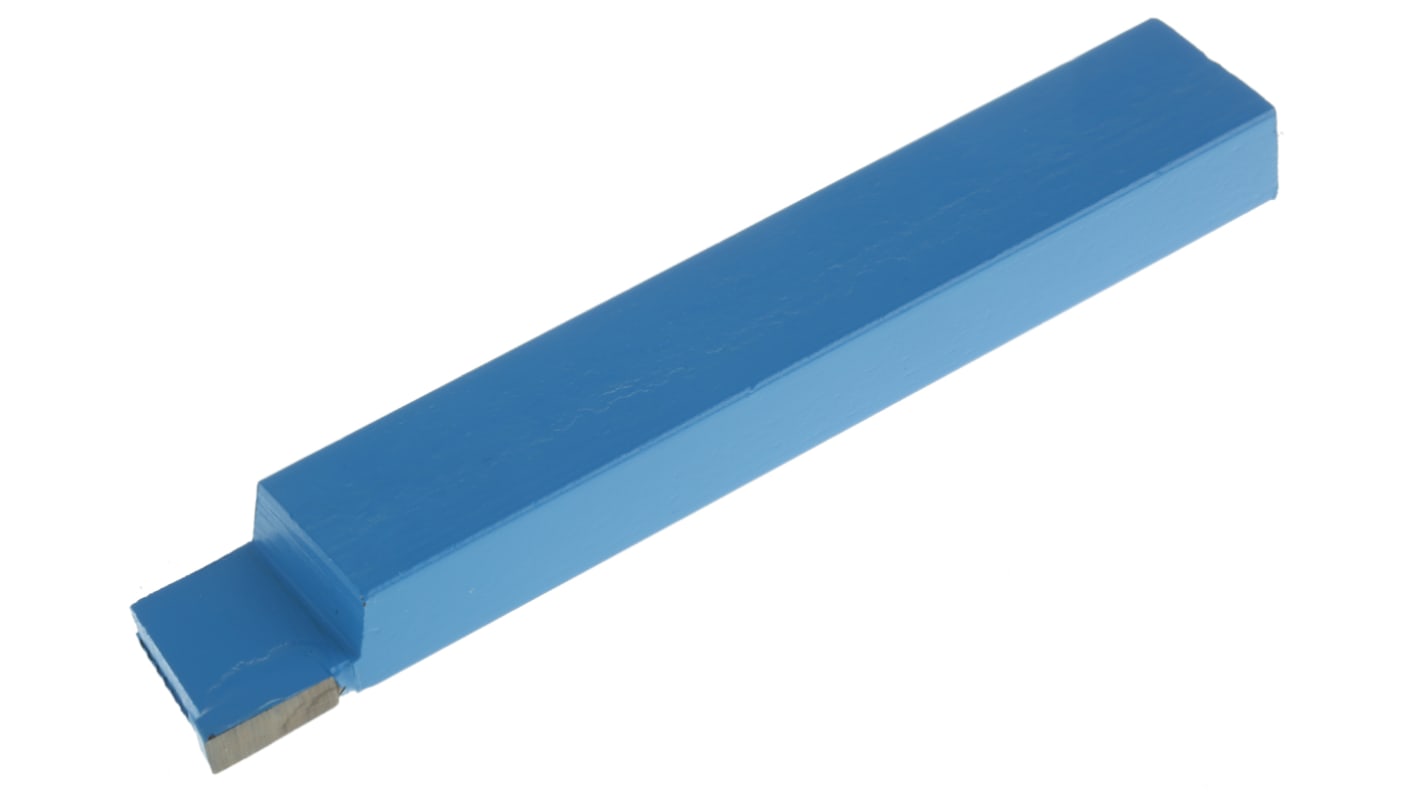

Carbide Brazed Tip Turning Tools
A selection of carbide tipped brazed turning tools manufactured in 2 standard grades
P30 - Blue - A general purpose grade for small workshops where a variety of steels are machined. Suitable for roughing of steel and castings using moderate feeds and moderate to low cutting speeds
K20 - Red - For finishing and light roughing of cast iron and other short chip materials using fine to moderate feeds and moderate to high cutting speeds
Also suitable for milling operations
All dimensions are approximate
P30 - Blue - A general purpose grade for small workshops where a variety of steels are machined. Suitable for roughing of steel and castings using moderate feeds and moderate to low cutting speeds
K20 - Red - For finishing and light roughing of cast iron and other short chip materials using fine to moderate feeds and moderate to high cutting speeds
Also suitable for milling operations
All dimensions are approximate
Note
Parting off tools are ISO 7
Cranked Knife tools are ISO 3 except 615-0915 which is ISO 6
Cranked Knife tools are ISO 3 except 615-0915 which is ISO 6
Specifications
Attribute | Value |
---|---|
Lathe Part | Lathe Tool Bit |
Type | Parting Off Turning Tool |
Overall Length | 125 mm |
Rake Angle | 5° |
Material | Carbide Brazed Tip |
Grade | P30 |
Thickness | 20mm |
