1260-02-000 Laser Module, 635nm 3mW, Modulating, TTL control Dot pattern +3 → +6 V
- RS Stock No.:
- 442-3299
- Mfr. Part No.:
- 1260-02-000
- Brand:
- Global Laser
3 In stock - FREE next working day delivery available
Added
Price Each
£159.09
(exc. VAT)
£190.91
(inc. VAT)
| Units | Per unit |
| 1 - 1 | £159.09 |
| 2 + | £144.33 |
- RS Stock No.:
- 442-3299
- Mfr. Part No.:
- 1260-02-000
- Brand:
- Global Laser
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

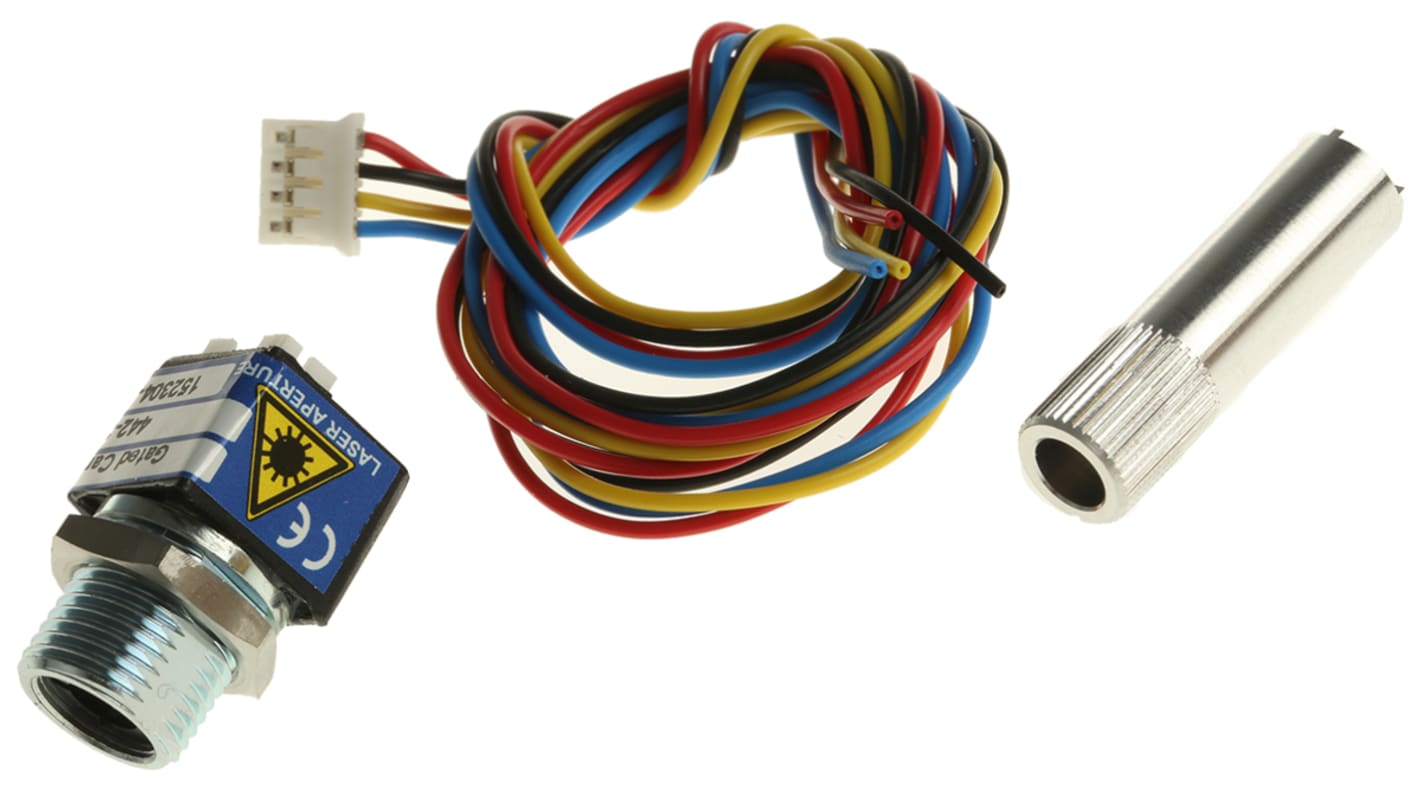

Cameo Industrial Laser Module
Simple thread-mounted industrial laser modules.
Cameo 1250 Standard Series:
Isolated metal case with M12 thread
Size: 24 x 14 x 14mm
User focusable
Spot size: Less than 50 micron
Divergence: Less than 0.5 mRad
Designed for continuous cool running
Wide range of focus distances
JST 2-way connector
Size: 24 x 14 x 14mm
User focusable
Spot size: Less than 50 micron
Divergence: Less than 0.5 mRad
Designed for continuous cool running
Wide range of focus distances
JST 2-way connector
Cameo 1260 Gated Series - additional features:
TTL input facilitates rapid switching/gating
Switching speeds up to 100kHz
Controlled chopping minimises power consumption and extends life
True ON/OFF pulsed control
Low-speed enable input
Low power consumption
JST 4-way connector
Switching speeds up to 100kHz
Controlled chopping minimises power consumption and extends life
True ON/OFF pulsed control
Low-speed enable input
Low power consumption
JST 4-way connector
Note
Lens type is either Circular (C2) spot, or Elliptical (S) spot
Standards
Complies with BS (EN) 60825
Warning
These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.
Laser Modules, Global Laser
Specifications
Attribute | Value |
|---|---|
| Laser Type | Modulating |
| Laser Colour | Red |
| Emission Pattern | Dot |
| Laser Wavelength | 635nm |
| Optical Output Power | 3mW |
| Control Type | TTL |
| Laser Class | 3R |
| Dimensions | 24 (Dia.) x 14mm |
| Application | Alignment |
| Diameter | 24mm |
| Length | 14mm |
| Maximum Supply Voltage | +6V |
| Minimum Supply Voltage | +3V |
| Supply Voltage Range | +3 → +6 V |
| Series | Cameo |
- RS Stock No.:
- 442-3299
- Mfr. Part No.:
- 1260-02-000
- Brand:
- Global Laser
