- RS Stock No.:
- 174-6534
- Mfr. Part No.:
- 864420
- Brand:
- Leica
6 In stock - FREE next working day delivery available
Added
Price Each
£382.12
(exc. VAT)
£458.54
(inc. VAT)
Units | Per unit |
1 + | £382.12 |
- RS Stock No.:
- 174-6534
- Mfr. Part No.:
- 864420
- Brand:
- Leica
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

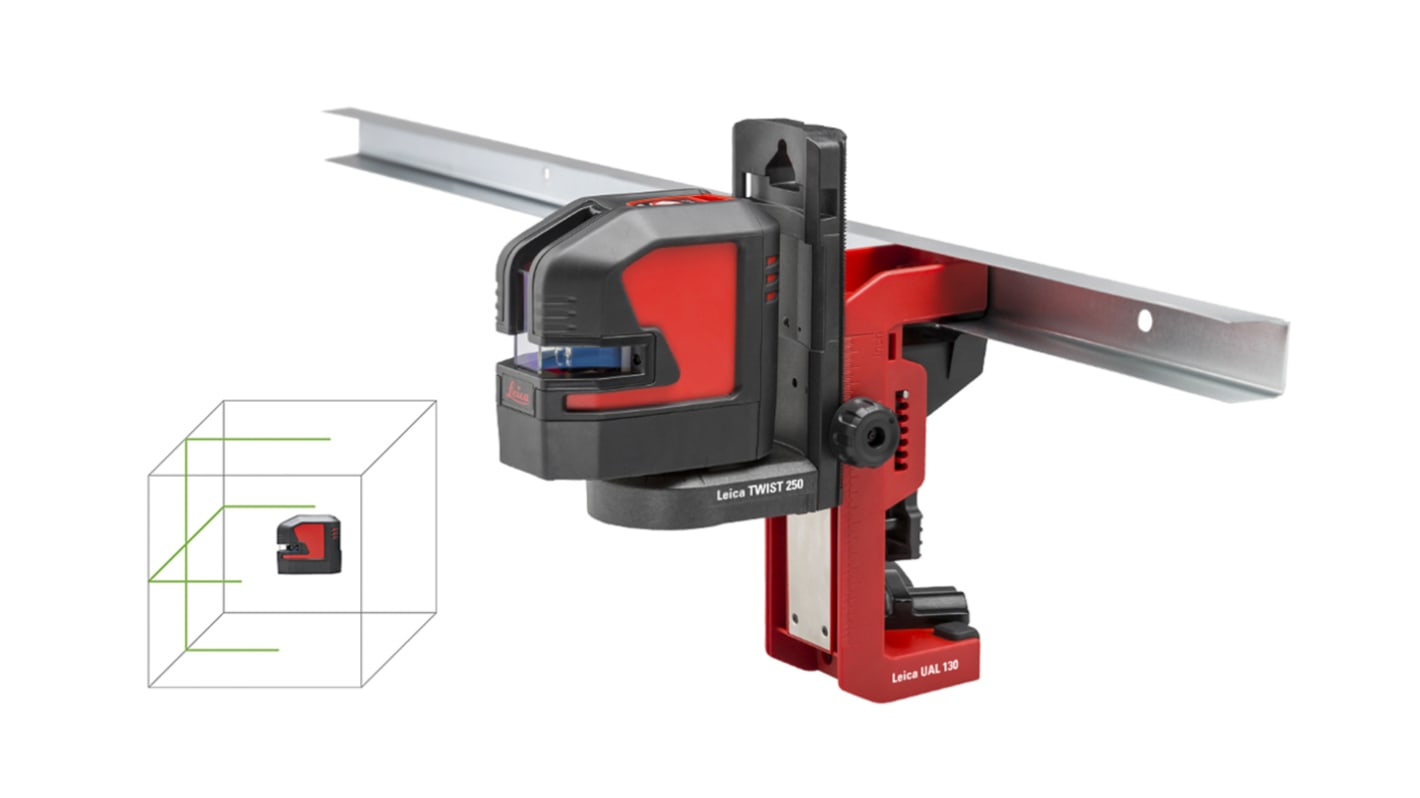

Leica clamp Line & Laser Level
The Leica line and laser level is a level and angular measurement tool has a 525nm laser wavelength, class2 control tool with a laser beam projector. It has horizontal and vertical laser lines and two-centred plumb points with optimal visibility. The laser has 2 lines projection with ± 0.2 mm/m levelling accuracy. The self-levelling range is ±4°. Smart adapters to position the laser level quickly and with absolute precision.
Features and Benefits
High levelling accuracy
Li-Ion rechargeable power source
High work efficiency with two directions laser beam
Tripod thread size is 1/4in
Working range is 80m (without receiver)
Levelling time is 4sec
Safe transport due to pendulum lock
Green beam high visibility of cross line laser
Bluetooth connection for remote control
Self-levelling laser level
Can be fitted on Tripod
Dust and splash protection
Li-Ion rechargeable power source
High work efficiency with two directions laser beam
Tripod thread size is 1/4in
Working range is 80m (without receiver)
Levelling time is 4sec
Safe transport due to pendulum lock
Green beam high visibility of cross line laser
Bluetooth connection for remote control
Self-levelling laser level
Can be fitted on Tripod
Dust and splash protection
Applications
Interior fitting work
Used in work suspended ceiling
Used in work suspended ceiling
Specifications
Attribute | Value |
---|---|
Levelling Accuracy | ±0.2mm/m |
Working Environment | Indoor |
Number of Laser Lines | 2 |
Alignment Level | Yes |
Number of Laser Dots | 0 |
Self Levelling | Yes |
Laser Class | Class 2 |
Laser Colour | Green |
Laser Wavelength | 525nm |
Power Source | Battery |
Dimensions | 60 x 110 x 100mm |
Weight | 500 g, 530g |
Height | 100mm |
Maximum Operating Temperature | +50°C |
Minimum Operating Temperature | -10°C |
Model Number p | L2G |
Length | 60mm |
Width | 110mm |
- RS Stock No.:
- 174-6534
- Mfr. Part No.:
- 864420
- Brand:
- Leica
