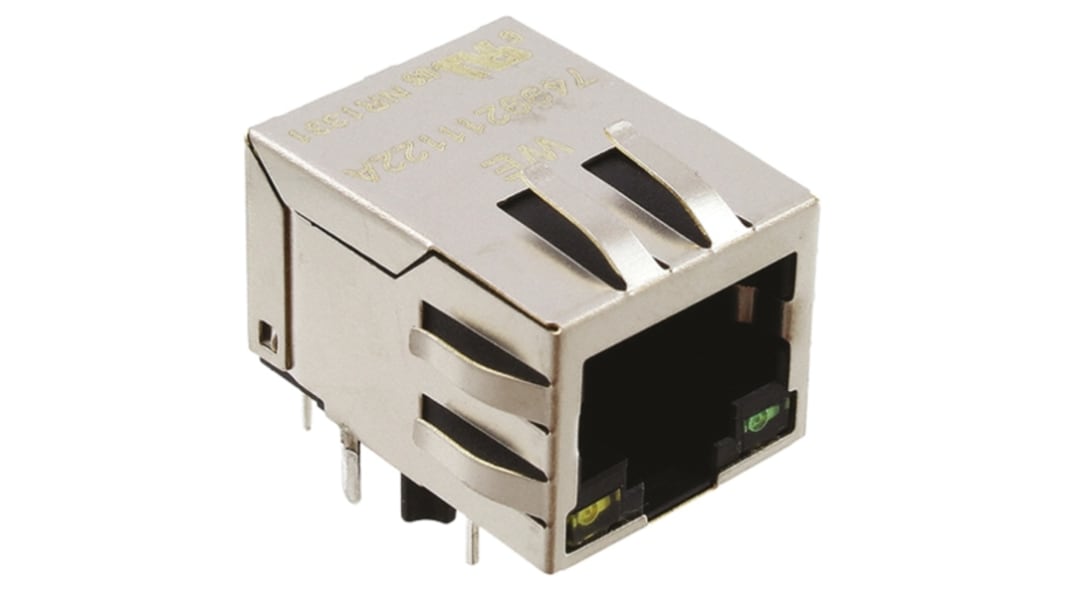

Through Hole Lan Ethernet Transformer, 13.74 x 15.88 x 21.84mm
- RS Stock No.:
- 814-9954
- Mfr. Part No.:
- 7499211122A
- Brand:
- Wurth Elektronik
Available to back order for despatch 13/09/2024
Added
Price Each
£6.85
(exc. VAT)
£8.22
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £6.85 |
| 5 - 9 | £6.51 |
| 10 - 28 | £6.17 |
| 29 - 57 | £5.86 |
| 58 + | £5.57 |
- RS Stock No.:
- 814-9954
- Mfr. Part No.:
- 7499211122A
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Würth RJ Data Sockets with integrated transformer/ common mode choke
A range of RJ connectors with integrated transformer/common mode choke. Perfect for various networking applications which require a well built and functioning RJ connection. All models are highly reliable and excellent quality.
Features & Benefits
350 μH min. OCL with 8 mA bias
Complies with IEEE 802.3
Typical applications include ADSl modems, Embedded PC, LAN applications, HUB, routers and switches.
Specifications
Attribute | Value |
|---|---|
| Number of Output Ports | 1 |
| Insertion Loss | -1dB |
| Mounting Type | Through Hole |
| Dimensions | 13.74 x 15.88 x 21.84mm |
| Depth | 21.84mm |
| Length | 13.74mm |
| Width | 15.88mm |
| Minimum Temperature | 0°C |
| Maximum Operating Frequency | 100MHz |
| Maximum Temperature | +70°C |
| Minimum Operating Frequency | 1MHz |
| Turns Ratio | 1:1 |
- RS Stock No.:
- 814-9954
- Mfr. Part No.:
- 7499211122A
- Brand:
- Wurth Elektronik
