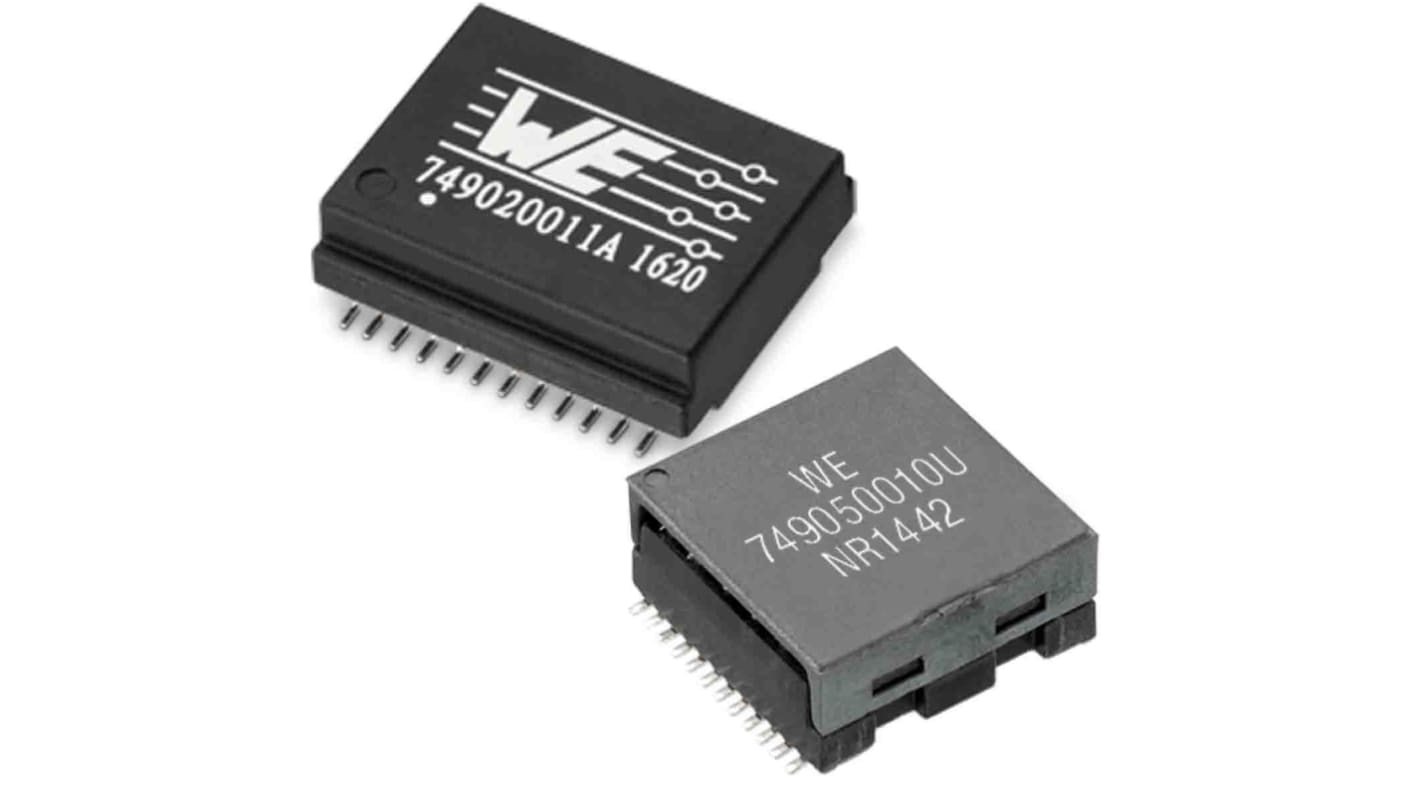

Surface Mount Lan Ethernet Transformer, 28.57 x 12.7 x 15.49mm
- RS Stock No.:
- 201-3636
- Mfr. Part No.:
- 7490240120
- Brand:
- Wurth Elektronik
Available to back order for despatch 05/09/2024
Added
Price Each
£22.45
(exc. VAT)
£26.94
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £22.45 |
| 10 - 99 | £22.00 |
| 100 + | £20.88 |
- RS Stock No.:
- 201-3636
- Mfr. Part No.:
- 7490240120
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Wurth Elektronik is a WE-LAN 1000 Base-T transformer. It is available in SMD with ferrite as the base material and the contact plating is Cu-Ni-Sn. The transformer is compliant for 1000 Base-T applications as per IEEE 802.3ab.
Designed to comply with IEC60601-1 with 4mm min. creepage and 3mm min. clearance distance for 1xMOOP
Industrial temperatures range: -40°C up to +105°C
Industrial temperatures range: -40°C up to +105°C
Specifications
Attribute | Value |
|---|---|
| Number of Output Ports | 1 |
| Mounting Type | Surface Mount |
| Dimensions | 28.57 x 12.7 x 15.49mm |
| Depth | 12.7mm |
