Startech 2 Port Dual Monitor USB DisplayPort KVM Switch - 3.5 mm Stereo

  • RS Stock No. 179-8057
  • Mfr. Part No. SV231DPDDUA2
  • Brand Startech
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

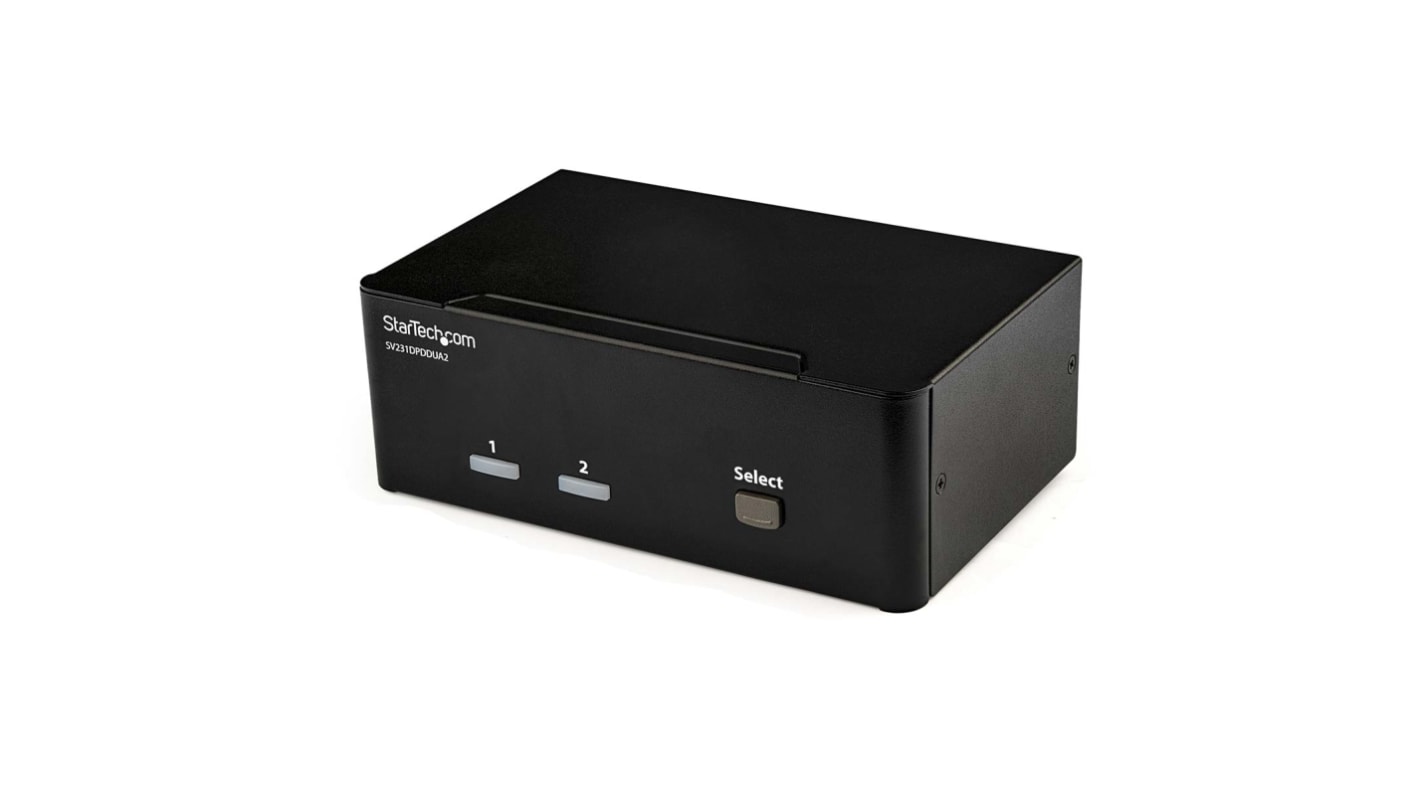

SV231DPDDUA2 Dual Monitor DisplayPort KVM Switch

The 2-port DisplayPort KVM switch features audio and USB peripheral support along with dual-display capability which makes it easy to create a multimedia workstation that can switch between two dual-head or twin DisplayPort systems.

Maximise productivity with dual video
With support for two DisplayPort video inputs and two different computers, this KVM switch helps maximise productivity. You can access multiple computers, giving you the freedom to multitask and increase your productivity. Each of the DP ports supports resolutions up to 4K for maximum screen viewing space. You can also use low-cost adapters to achieve a dual-monitor setup using your computer's secondary HDMI or DVI port.

Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to Ultra HD 4K at 60Hz, and can drive two large DP displays with ease. This makes it the ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that let you share independent analog audio, from each of your connected computers, with your desktop speaker set. With independent audio support, along with dual 4K DP video, you get full multimedia control between different computers which makes this the perfect KVM switch for creative professional applications such as video and sound design or editing.

Convenient peripheral sharing
This KVM switch offers a built-in 2-port USB hub that's separate from your HID keyboard and mouse. This enables you to share USB peripherals between each connected computer and avoid the expense of separate equipment. The USB hub automatically switches your connected USB devices to the selected computer, saving you the hassle and cost of outfitting each of your computers with their own peripherals.

The SV231DPDDUA2 is backed by a 2-year StarTech.com warranty.

Features & Benefits

• Maximum productivity with dual-display, multi-computer access
• Full multimedia control with separate 3.5 mm auxiliary support
• Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
• Share your USB peripheral devices with built-in 2-port USB hub

Applications

• Control two computers, each with dual-head video cards, from a single workstation
• Work with multimedia such as 4K video and photo editing
• Operate multiple computers in manufacturing lines
• Install in your server room, for multi-computer access
• Perform high-resolution tasks such as graphic design or CAD drawing

What’s in the package?

• KVM switch
• universal power adapter (NA/JP, EU, UK, ANZ)
• rubber feet
• instruction manual

Specifications
Attribute Value
Number of Ports 2
Number of Displays Supported 2
Number of Video Outputs 2
Video Connection Type DisplayPort
Keyboard/Mouse Connection Type USB
Audio Connection Type 3.5 mm Stereo
Dimensions 161 x 100 x 57.5mm
Maximum Resolution 3840 x 2160
Depth 100mm
Height 57.5mm
Width 161mm
