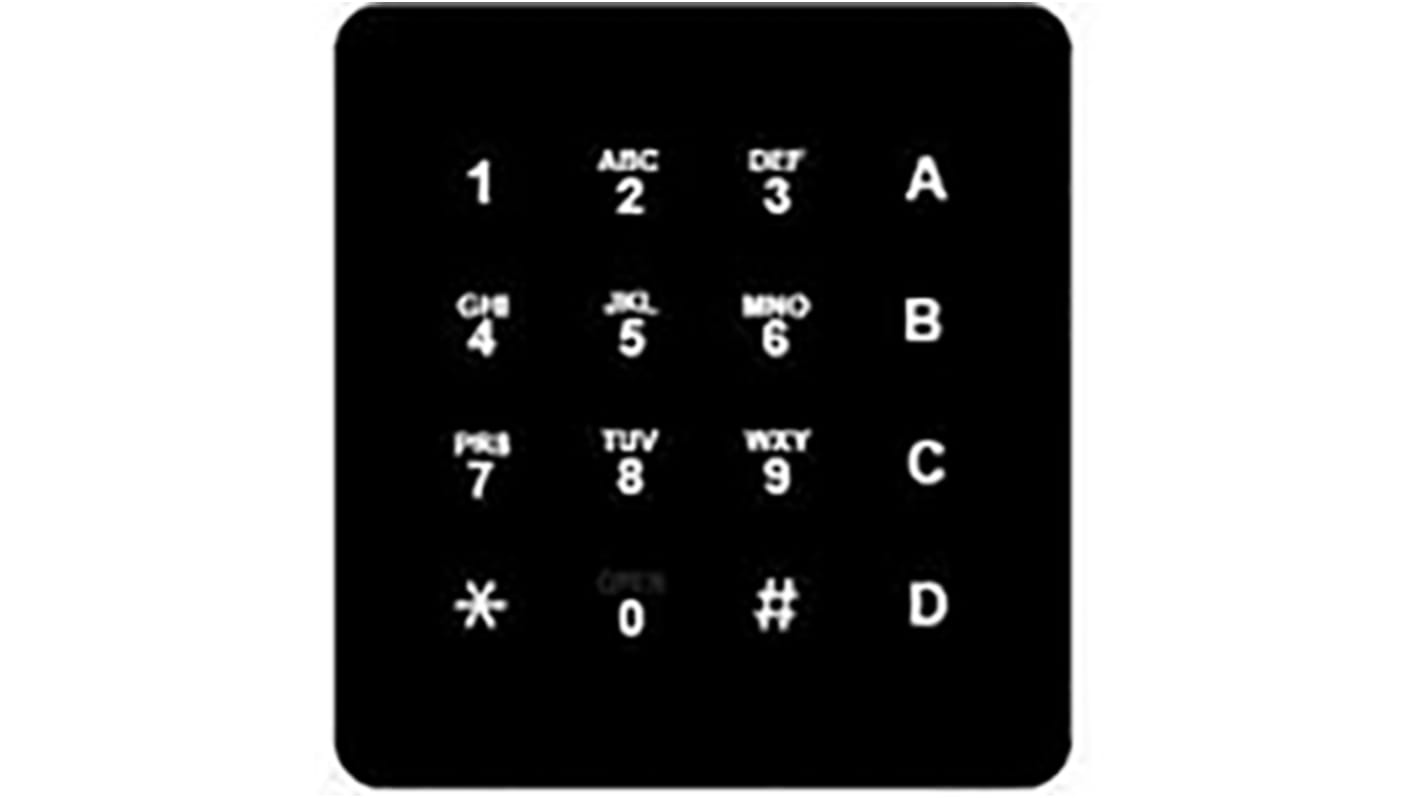

Grayhill 16 Key ABS, Cycolac FR15 Keypad

  • RS Stock No. 877-8619
  • Mfr. Part No. 96BB2-056-RS
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Grayhill 96 Series Standard Keypad, Conductive Rubber

The 96 series keypads have been designed for economy and reliability with a life expectance of 1,000,000 operations per button. This can help reduce maintenance costs. They feature tactile feedback allowing the operator to be sure of when a key has been pressed. These units are compatible with high resistance Logic modules and the terminals mate with standard connectors. They feature matrix circuitry and options include backlit and shielded versions.

Features:
Quality, economical keyboards
Easily customized legends
Matrix circuitry
Backlit and shielded options available
Termination mates with standard connectors
Tactile feedback to operator
1,000,000 operations per button
Compatible with high resistance logic inputs
Operating Temperature: -30 to +80 °C

Specifications
Attribute Value
Keypad Layout 4 x 4
Membrane Operation Yes
Number of Keys 16
Keypad Output Matrix
Case Material ABS, Cycolac FR15
Case Colour Black
Mechanical Life Per Key 1000000Operations
Contact Material Phosphor Bronze
Actuator Colour White
Actuator Material Silicone Rubber
Depth Behind Panel 5.1mm
Minimum Operating Temperature -30°C
Operating Temperature Range -30 → +80°C
Maximum Operating Temperature +80°C
Voltage Rating 12V dc
Available to back order for despatch 11/05/2020
Price Each (In a Pack of 100)
£ 17.219
(exc. VAT)
£ 20.663
(inc. VAT)
Units
Per unit
Per Pack*
100 +
£17.219
£1,721.90
*price indicative
