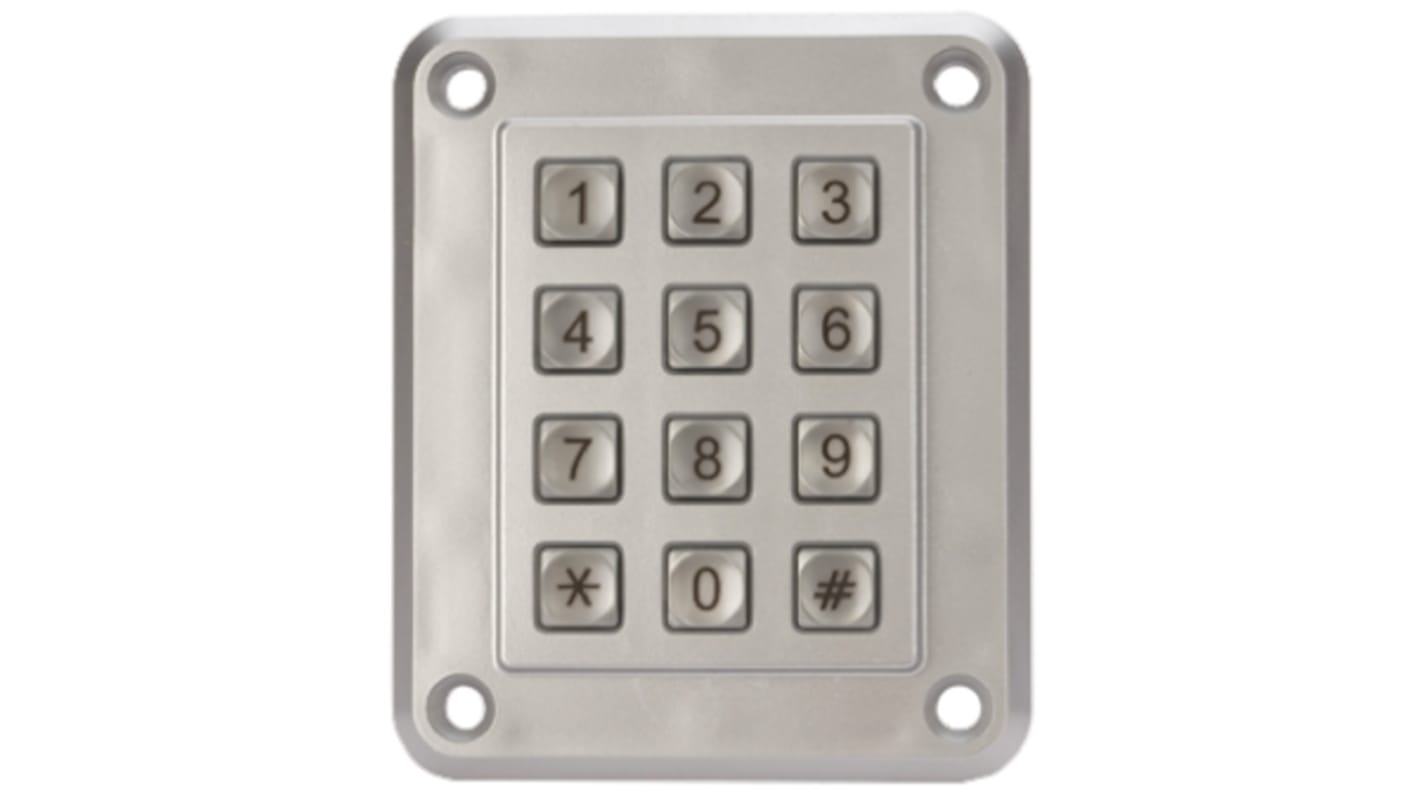

EOZ IP67 12 Key ZAMAK 5 Anti Vandal Keypad

  • RS Stock No. 146-660
  • Mfr. Part No. S.12150.001
  • Brand EOZ
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Metal anti-vandal keypads, IP67, series S

IP67 sealed metal anti-vandal keypads with concave tactile keys.
Keypad (chrome-plated zinc alloy) with zink alloy keys
Front or rear panel mount.
Available illuminated (blue or yellow LED) or non-illuminated.
Available with 12 or 16 keys, and matrix or common point outputs.

Specifications
Attribute Value
Keypad Layout 4 x 3
Number of Keys 12
Keypad Output Matrix
IP Rating IP67
Case Material ZAMAK 5
Mechanical Life Per Key 4000000Operations
Contact Material Carbon
Actuator Colour Chrome
Actuator Material Zinc Aluminium Alloy
Depth Behind Panel 8.6mm
Minimum Operating Temperature -25°C
Operating Temperature Range -25 → +85°C
Maximum Operating Temperature +85°C
39 in stock for FREE next working day delivery
90 available from Europe for delivery within 1 working day(s).
Price Each
£ 66.62
(exc. VAT)
£ 79.94
(inc. VAT)
Units
Per unit
1 - 24
£66.62
25 - 99
£59.30
100 - 249
£53.86
250 - 499
£49.72
500 +
£47.29
