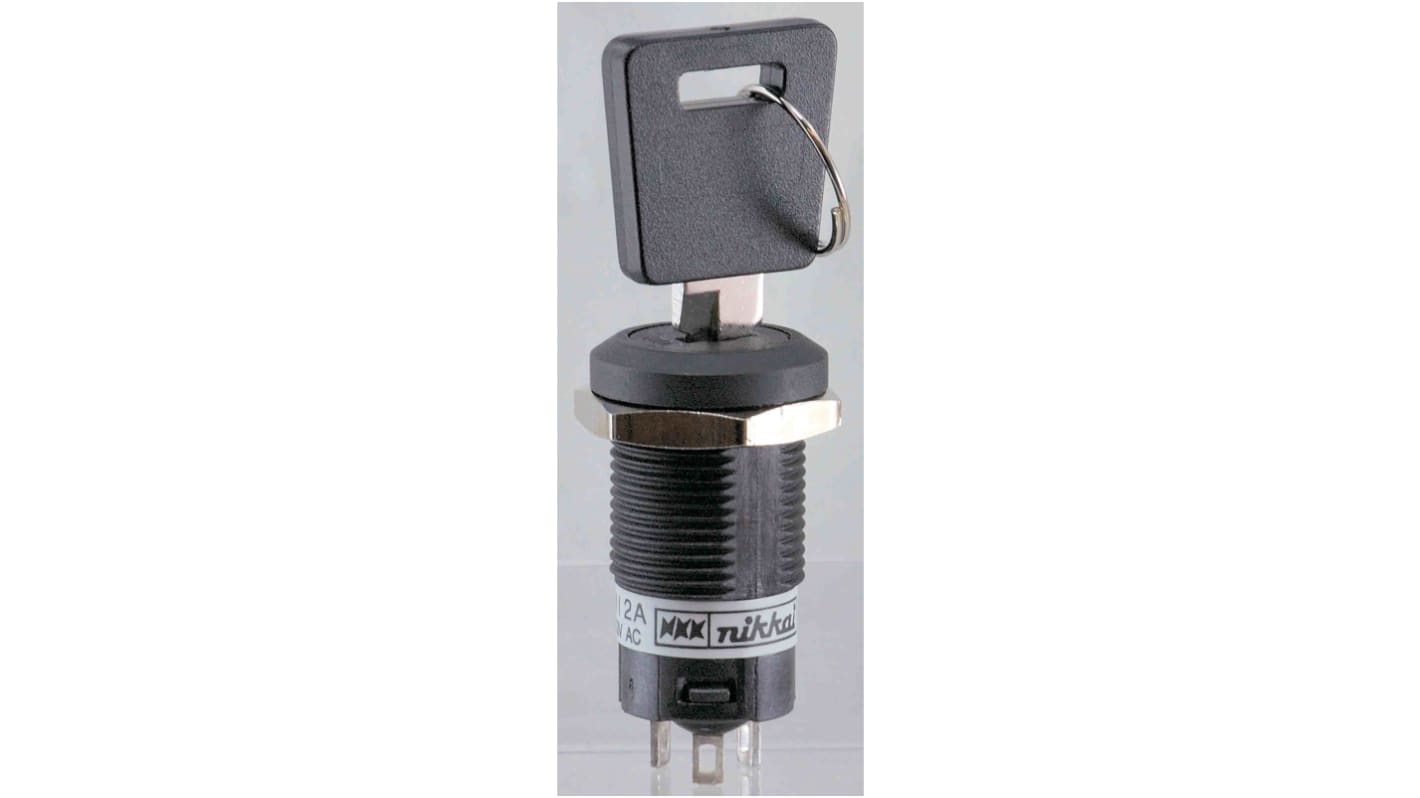

Key Switch, SPDT, 3 A 2-Way, -25 → +70°C

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details
//media.rs-online.com/t_line/LJ197634-01.gif
Product Specification
Contact rating 30 V DC 100 mA
Mechanical service life <5´10 4 times
Test voltage 1000V 1 minute (key terminal)
Index angle 90°
Soldering temperature <185°C to 250°C 3 seconds
Operating temperature range -20°C to +55°C
Specifications
Attribute Value
Number of Positions 2
Switch Operation On-On
Contact Configuration SPDT
Key Trapping Yes
Contact Current Rating 3 A
Terminal Type Solder
Application High Security
Depth Behind Panel 35.2mm
Key Index Angle 90°
Contact Material Silver
Mechanical Life 30000Operations
Minimum Operating Temperature -25°C
Maximum Operating Temperature +70°C
Operating Temperature Range -25 → +70°C
21 In stock for FREE next working day delivery
Price Each
£ 7.42
(exc. VAT)
£ 8.90
(inc. VAT)
Units
Per unit
1 - 9
£7.42
10 - 49
£6.75
50 - 99
£6.18
100 - 249
£5.71
250 +
£5.29
