APEM 2-Axis USB Thumbstick Castle, Conical, Winged Hat, Spring Return, IP68, IP69K
- RS Stock No.:
- 123-5675
- Mfr. Part No.:
- TSAA3S14A
- Brand:
- APEM
View all Joysticks
Available to back order for despatch 04/06/2024
Price Each
£223.60
(exc. VAT)
£268.32
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £223.60 |
| 5 - 9 | £205.71 |
| 10 - 24 | £201.24 |
| 25 - 49 | £183.35 |
| 50 + | £167.70 |
- RS Stock No.:
- 123-5675
- Mfr. Part No.:
- TSAA3S14A
- Brand:
- APEM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

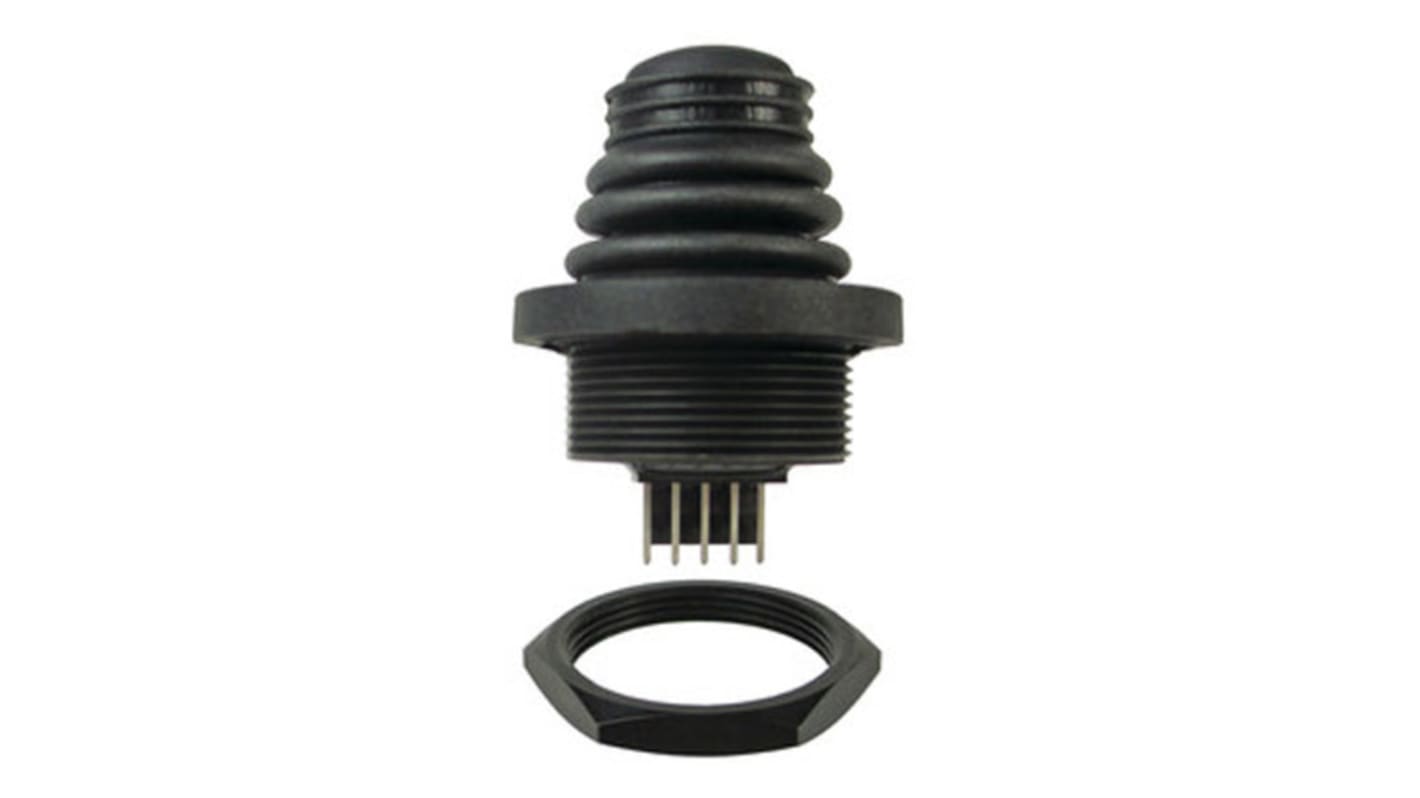

Apem TS Series USB Thumbstick
Apem TS series of proportional hall effect thumbsticks offer a reliable & rugged switching solution. The TS series are a submersible IP68 product, meaning the joystick can be used within both internal & external applications. Constructed from a glass filled nylon body with black oxide plated brass, coupled with a silicone boot.
Features and Benefits
Non-contact hall effect technology.
Can be submerged up to 1 m, rated to IP68.
Optional USB output available.
Thumbsticks
Specifications
| Attribute | Value |
| Number of Axes | 2 |
| Switch Technology | Spring Return |
| IP Rating | IP68, IP69K |
| Handle Type | Castle, Conical, Winged Hat |
| Contact Current Rating | 50 mA |
| Contact Configuration | SPST |
| Contact Material | Brass |
| Joystick Travel | 50 ° |
| Terminal Type | Wire Lead |
| Mechanical Life | 1000000Cycles |
| Depth Behind Panel | 10.27mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -25 → +70°C |
