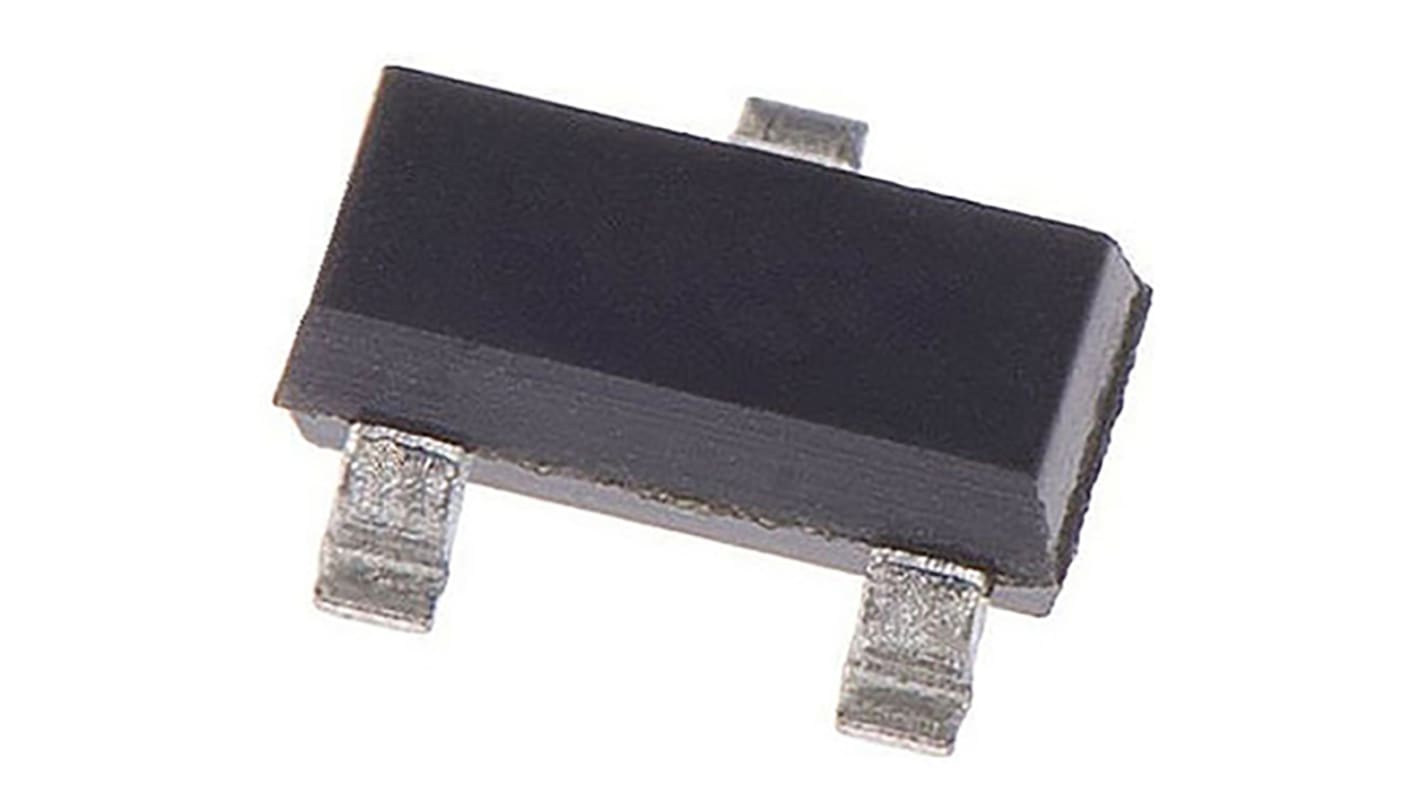

ON Semiconductor 2SK932-24-TB-E N-Channel JFET, 15 V, Idss 14.5 → 24mA, 3-Pin CP

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

N-channel JFET, ON Semiconductor

JFET Transistors

A range of JFET (junction field-effect transistor) and HEMT/HFET (high-electron-mobility transistor/ hetero-junction FET) discrete semiconductor devices.

Specifications
Attribute Value
Channel Type N
Idss Drain-Source Cut-off Current 14.5 → 24mA
Maximum Drain Source Voltage 15 V
Maximum Drain Gate Voltage -15V
Configuration Single
Transistor Configuration Single
Mounting Type Surface Mount
Package Type CP
Pin Count 3
Drain Gate On-Capacitance 10pF
Source Gate On-Capacitance 3pF
Dimensions 2.9 x 1.5 x 1.1mm
Length 2.9mm
Width 1.5mm
Height 1.1mm
Maximum Operating Temperature +150 °C
Available to back order for despatch 09/02/2021
Price Each (On a Reel of 3000)
£ 0.095
(exc. VAT)
£ 0.114
(inc. VAT)
Units
Per unit
Per Reel*
3000 +
£0.095
£285.00
*price indicative
