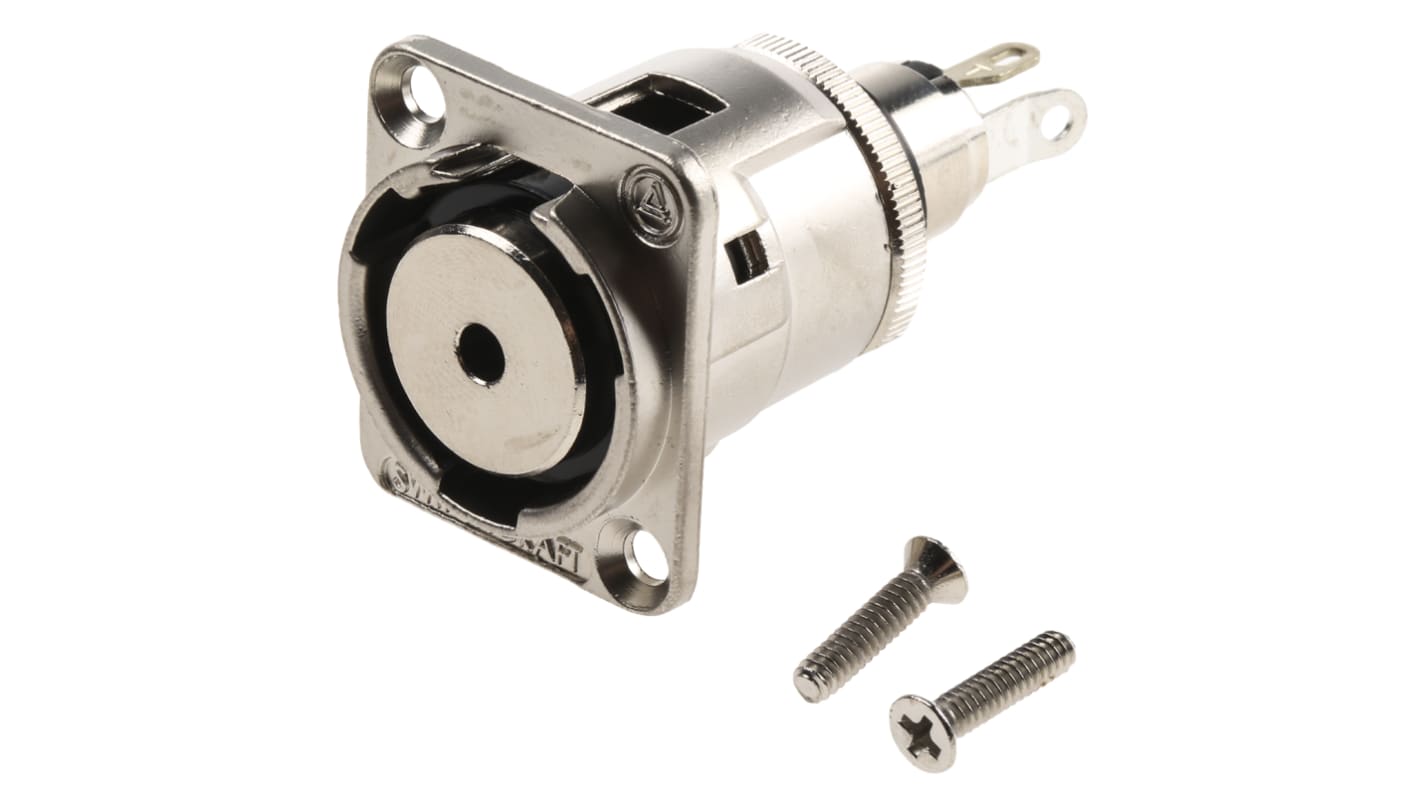

Switchcraft 3.5 mm Panel Mount Mono Jack Socket

  • RS Stock No. 665-9576
  • Mfr. Part No. EH35MMMSCPKG
  • Brand Switchcraft
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

EH Broadcast Series Panel Mount Connectors

Standard XLR housing
Single panel cut-out allows the end user to mount multiple formats
For systems integration, pro audio, A/V and data
Mounts into standard XLR diagonal hole knockouts, this allows the installer to easily combine the different formats into standard pre-knocked plates or racks without having to custom drill

Specifications
Attribute Value
Gender Female
Size 3.5 mm
Mounting Type Panel Mount
Type Mono
Body Orientation Straight
Termination Method Solder
Contact Plating Nickel
Colour Natural
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Price Each
£ 11.64
(exc. VAT)
£ 13.97
(inc. VAT)
Units
Per unit
1 +
£11.64
Not available for guaranteed pre 9am/10am delivery
