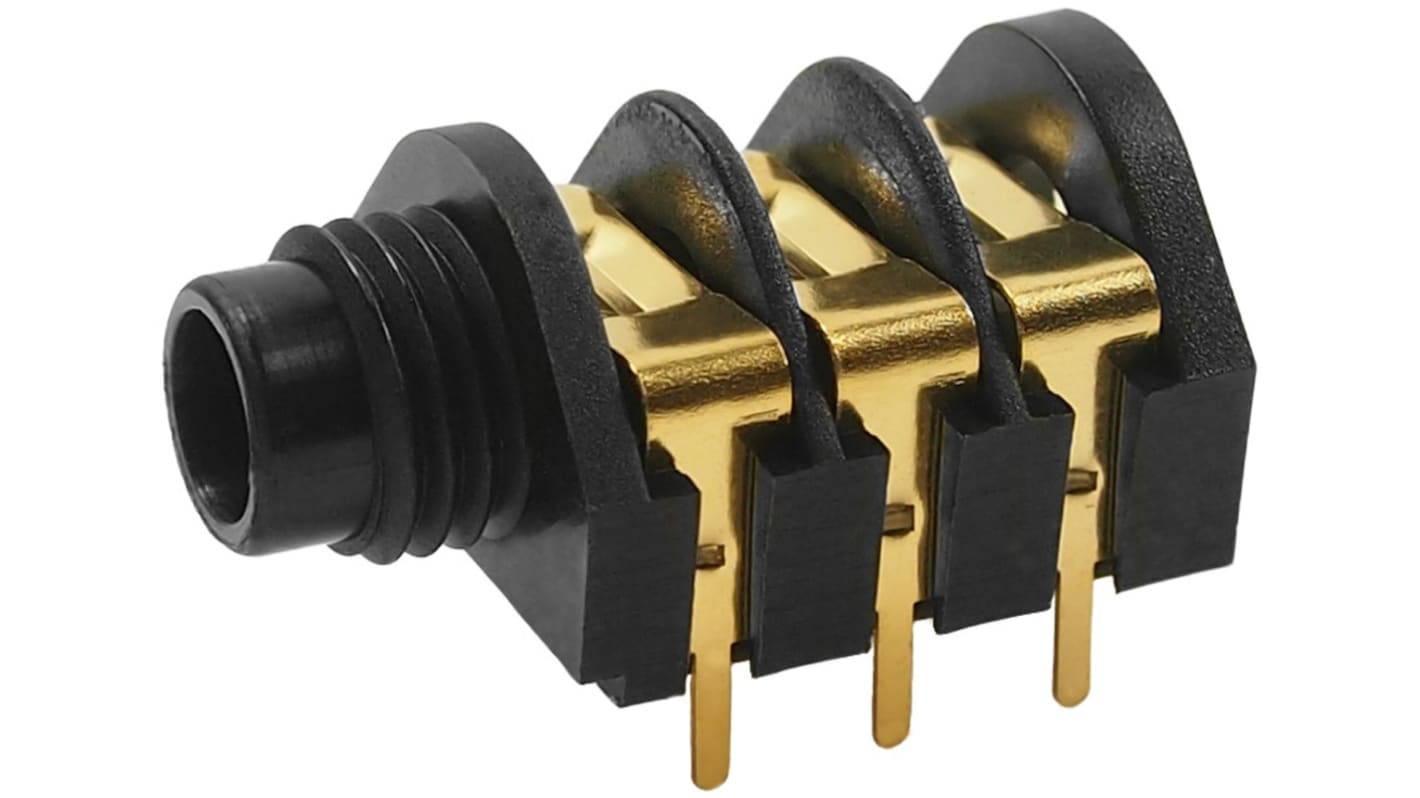

RS PRO 6.35 mm Panel Mount Stereo Jack Socket, 3Pole 5A

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RS Pro Panel Mount Sockets

A series of RS Pro gold jack sockets, each model is superbly designed for optimum quality in both mono and stereo audio. With a minimum life capacity of 10000 operations and a withstand voltage of 2000 V dc, these sockets are suitable for various environments. All models are highly reliable and excellent quality.

Features & Benefits

Panel Mount 6.5 mm amd 3.5 mm versions available

Specifications
Attribute Value
Gender Female
Size 6.35 mm
Mounting Type Panel Mount
Type Stereo
Body Orientation Right Angle
Termination Method Solder
Contact Plating Gold
Current Rating 5A
Housing Material Nylon
Colour Black
Contact Material Silver Alloy
No of Poles/ Way 3
50 In stock - FREE next working day delivery available
Price Each (In a Bag of 5)
£ 2.09
(exc. VAT)
£ 2.51
(inc. VAT)
Units
Per unit
Per Bag*
5 - 20
£2.09
£10.45
25 - 45
£1.988
£9.94
50 - 95
£1.882
£9.41
100 - 245
£1.778
£8.89
250 +
£1.672
£8.36
*price indicative
