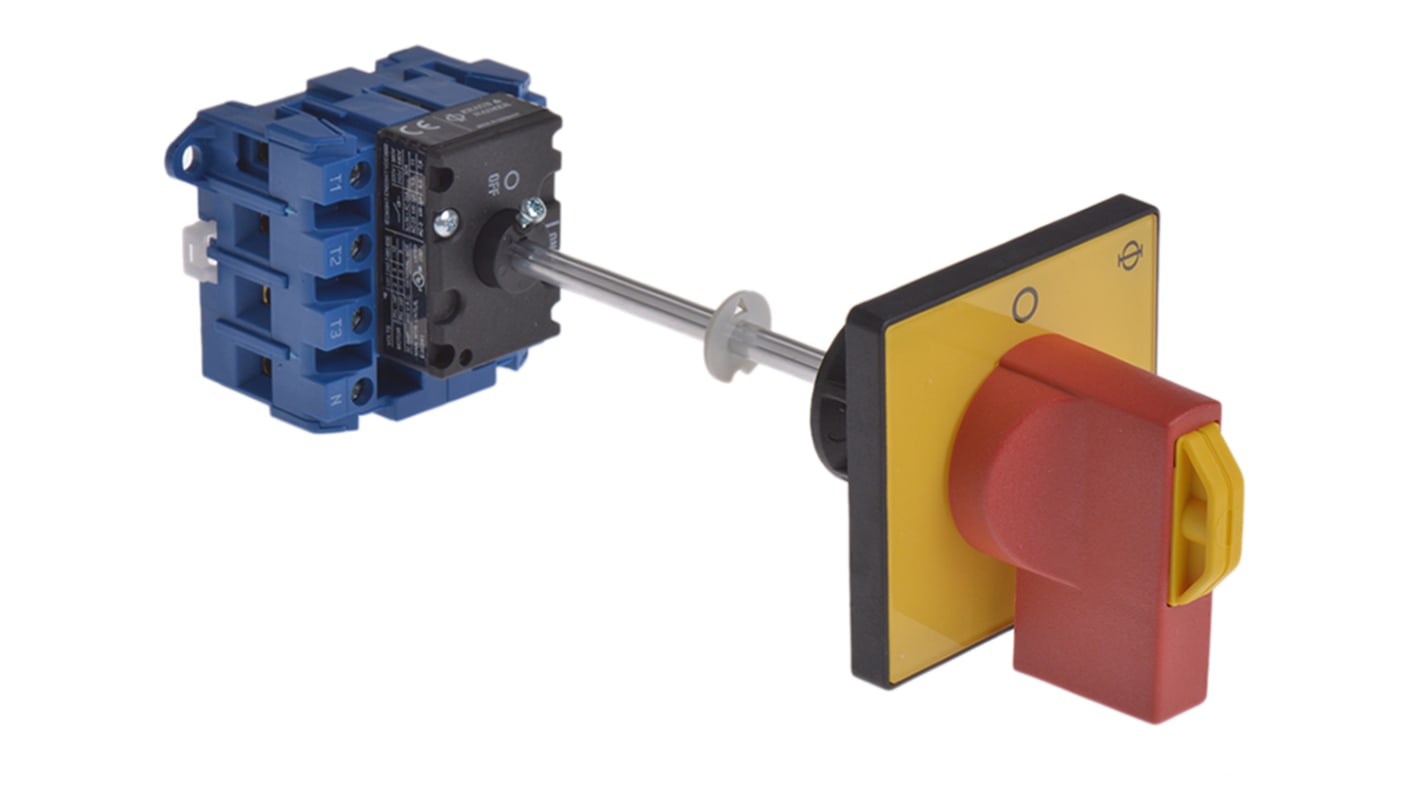

Kraus & Naimer 4P Pole Isolator Switch - 32A Maximum Current, 11kW Power Rating, IP65
- RS Stock No.:
- 381-3900
- Mfr. Part No.:
- KG32B T204/GBA302 VE
- Brand:
- Kraus & Naimer
6 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£40.23
(exc. VAT)
£48.28
(inc. VAT)
| Units | Per unit |
| 1 + | £40.23 |
- RS Stock No.:
- 381-3900
- Mfr. Part No.:
- KG32B T204/GBA302 VE
- Brand:
- Kraus & Naimer
Technical Reference
Legislation and Compliance
Product Details
Single Hole Mounting Operator 3 & 4 Pole Switch-Disconnectors, IP65
Single hole mounting
Handle padlockable (x4) in "OFF" position
Adjustable metal operating shaft, length 120mm
Door interlocked to prevent opening of panel door while switch is in the 'ON' postion
Fingerproof terminal on 25 to 63A switches
Live terminal cover provided for 80A & 100A switches
Nominal voltage: 690V
Side mounting auxiliary contacts can be added, see typically stock no. 319-691
Base mounting via DIN rail or screw to back of panel
Handle padlockable (x4) in "OFF" position
Adjustable metal operating shaft, length 120mm
Door interlocked to prevent opening of panel door while switch is in the 'ON' postion
Fingerproof terminal on 25 to 63A switches
Live terminal cover provided for 80A & 100A switches
Nominal voltage: 690V
Side mounting auxiliary contacts can be added, see typically stock no. 319-691
Base mounting via DIN rail or screw to back of panel
Note
Stated motor rating, Util. Cat. AC23A/AC3, is for 3 phase, 380/440V supply
Standards
BS EN 60947-3, EN 60947-3, IEC 60947-3, VDE 0660, EN 60204-01
Kraus & Naimer
All have a nominal voltage of 690V. The stated motor rating utilisation category AC23A/AC3 is for 3 phase 380/440V supply.
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 4P |
| Maximum Current | 32A |
| IP Rating | IP65 |
| Power Rating | 11kW |
| Voltage Rating | 690V ac |
| Electrical Phase | 3 |
| Accepts Padlocks | Yes |
| Auxiliary Contacts Available | Yes |
| Length | 55.5mm |
| Width | 54mm |
| Depth | 50mm |
| Terminal Type | Wire Lead |
| Maximum Operating Temperature | +55°C |
