- RS Stock No.:
- 261-8524
- Mfr. Part No.:
- 194E-A32-1753-R
- Brand:
- Allen Bradley
- RS Stock No.:
- 261-8524
- Mfr. Part No.:
- 194E-A32-1753-R
- Brand:
- Allen Bradley
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

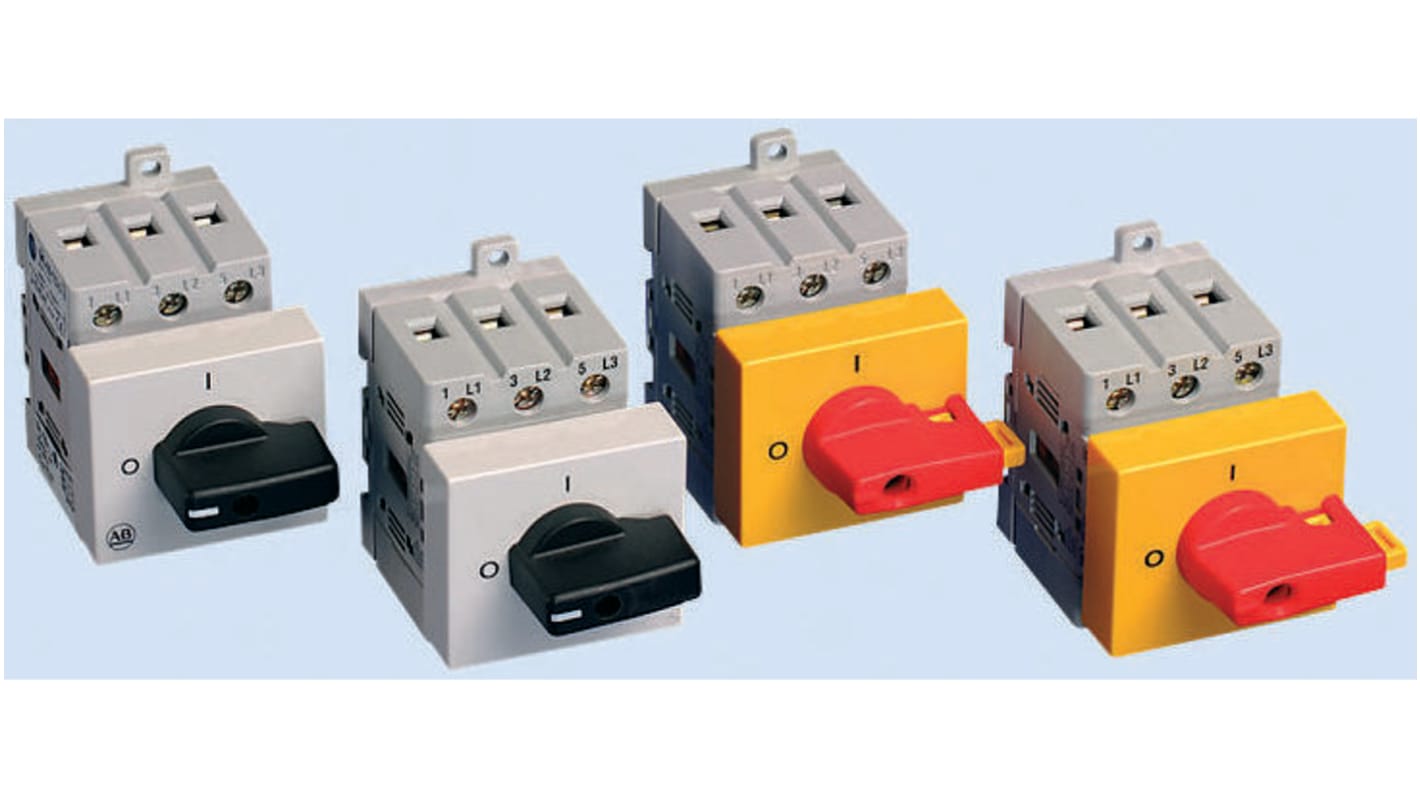

Base Mount Modular Switches
For distribution panels with standard 45mm cut-outs
Uniform overall depth of 60mm
Finger-proof switch body
Surface or DIN rail mounting
Load or emergency switch versions
3-pole (complete)
Uniform overall depth of 60mm
Finger-proof switch body
Surface or DIN rail mounting
Load or emergency switch versions
3-pole (complete)
Standards
IEC 947, VDE 0660
Approvals
UL, CSA
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for Pozidriv or flat blade screwdriver. The switching category is AC23A.
Specifications
Attribute | Value |
---|---|
Number of Poles | 3P |
Maximum Current | 32A |
IP Rating | IP65 |
Power Rating | 15kW |
Voltage Rating | 690V ac |
Electrical Phase | 3 |
Accepts Padlocks | Yes |
Handle Colour | Black/Grey, Red/Yellow |
Switch Rating | 15kA |
Length | 70mm |
Width | 45mm |
Depth | 59mm |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -25°C |
Terminal Type | Wire Lead |
