- RS Stock No.:
- 261-7874
- Mfr. Part No.:
- 194E-A63-1753-6N
- Brand:
- Allen Bradley
22 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£49.01
(exc. VAT)
£58.81
(inc. VAT)
Units | Per unit |
1 + | £49.01 |
- RS Stock No.:
- 261-7874
- Mfr. Part No.:
- 194E-A63-1753-6N
- Brand:
- Allen Bradley
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

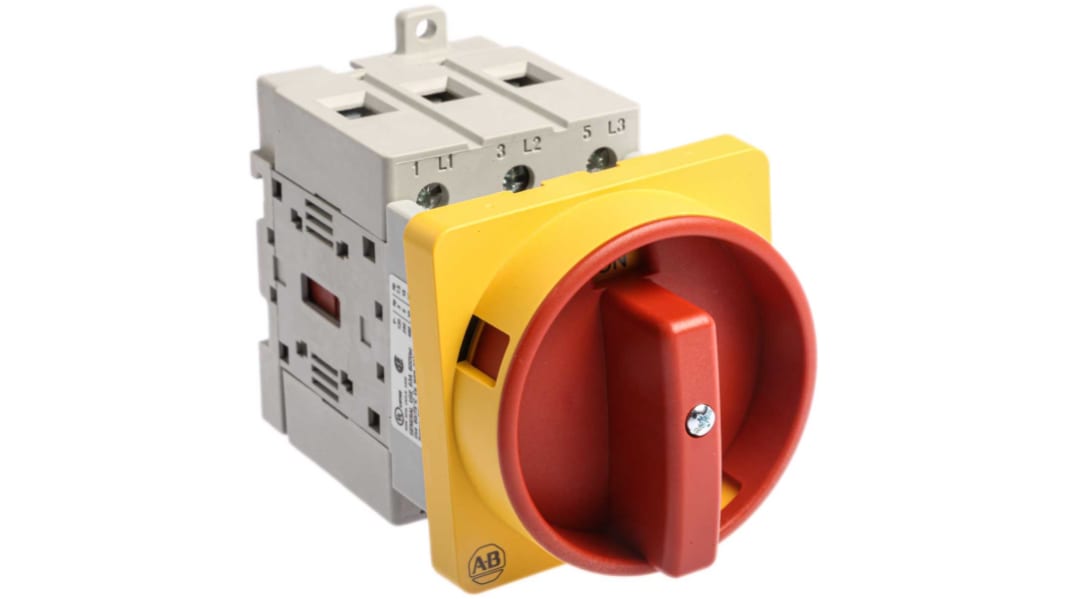

Allen Bradley Switch Disconnectors (Base Mounting)
These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL, CSA approved. They are manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos.
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for Pozidriv or flat blade screwdriver. The switching category is AC23A.
Specifications
Attribute | Value |
---|---|
Number of Poles | 3P |
Maximum Current | 63A |
IP Rating | IP66 |
Power Rating | 22kW |
Voltage Rating | 690V ac |
Electrical Phase | 3 |
Accepts Padlocks | Yes |
Handle Colour | Black/Grey, Red/Yellow |
Switch Rating | 15kA |
Length | 80mm |
Width | 54mm |
Depth | 73mm |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -25°C |
Terminal Type | Wire Lead |
