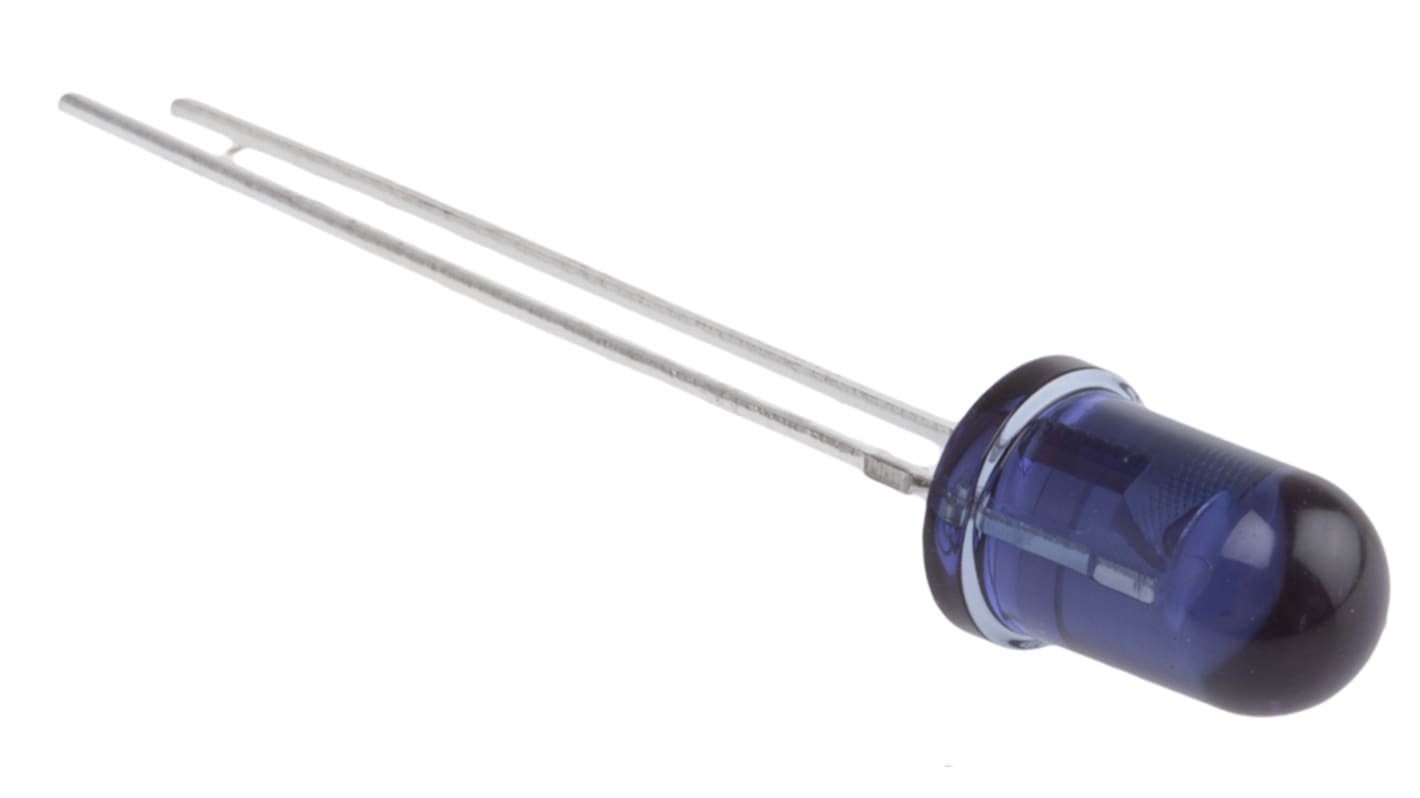

TSAL6200 Vishay, 940nm IR LED, 5mm (T-1 3/4) Through Hole package

  • RS Stock No. 699-7635
  • Mfr. Part No. TSAL6200
  • Brand Vishay
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Vishay TSAL Series IR Emitting Diodes

Vishay Semiconductors' TSAL family consists of through-hole Infrared (IR) emitting diodes. They are available in 3mm (T-1) or 5mm (T-1 3/4) packages. These high power IREDs offer a high radiant power with high radiant intensity.
Suitable applications for the TSAL family includes; IR remote control units, free air transmission systems, IR sources for smoke detectors and IR sources for optical counters and card readers.

Features of the TSAL IR emitters:
Through-hole plastic packages
T-1 (3mm) and T-1 3/4 (5mm) packages
High reliability
High radiant power
High radiant intensity
Low forward voltage
High speed
Variety of peak wavelengths
Range of beam angles

Infrared (IR) Light Emitters, Vishay

Specifications
Attribute Value
Peak Wavelength 940nm
Package Type 5mm (T-1 3/4)
Radiant Flux 40mW
Radiant Intensity 72mW/sr
Mounting Type Through Hole
Angle of Half Intensity 34°
Number of LEDs 1
Number of Pins 2
Dimensions 5 x 8.7mm
Lens Shape Round
LED Material GaAlAs
Available to back order for despatch 23/10/2019
Price Each (In a Pack of 25)
£ 0.196
(exc. VAT)
£ 0.235
(inc. VAT)
Units
Per unit
Per Pack*
25 - 225
£0.196
£4.90
250 - 475
£0.133
£3.325
500 +
£0.098
£2.45
*price indicative
