- RS Stock No.:
- 890-4304
- Mfr. Part No.:
- 25B-A2P5N114
- Brand:
- Allen Bradley
- RS Stock No.:
- 890-4304
- Mfr. Part No.:
- 25B-A2P5N114
- Brand:
- Allen Bradley
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
PowerFlex 525 - Single-phase Inverter Drives
PowerFlex® 525 AC Drives are cost-effective and ideal for networked machines and simple system integration. These inverters provide an innovative, modular design that supports fast and easy installation and configuration. In addition, they offer USB programming, application-specific configuration, and flexible mounting options.
The inverter support a wide range of motor control, offer a compact footprint, and operate at temperatures as high as 70°C.
The inverter support a wide range of motor control, offer a compact footprint, and operate at temperatures as high as 70°C.
1-phase input with EMC filter
Modular design for quick installation and configuration
Embedded EtherNet/IP port allows easy configuration, control, and collection of drive data over the network
Software and tools help simplify programming
An integral human interface module (HIM) supports multiple languages and features descriptive
QuickViewTM, AppViewTM and CustomViewTM for easy operation and parameterisation
Economizer control mode and energy monitoring features can help reduce energy costs
Closed loop feedback with an optional encoder card (stock no. 890-4382)
More I/Os than the PowerFlex 523 series.
Drives operate in ambient temperatures from -20°C to 50°C. With current derating and a control module fan kit, up to 70°C
A range of motor control options support a variety of applications
A compact footprint provides flexible installation options and helps saves space inside of a panel
Modular design for quick installation and configuration
Embedded EtherNet/IP port allows easy configuration, control, and collection of drive data over the network
Software and tools help simplify programming
An integral human interface module (HIM) supports multiple languages and features descriptive
QuickViewTM, AppViewTM and CustomViewTM for easy operation and parameterisation
Economizer control mode and energy monitoring features can help reduce energy costs
Closed loop feedback with an optional encoder card (stock no. 890-4382)
More I/Os than the PowerFlex 523 series.
Drives operate in ambient temperatures from -20°C to 50°C. With current derating and a control module fan kit, up to 70°C
A range of motor control options support a variety of applications
A compact footprint provides flexible installation options and helps saves space inside of a panel

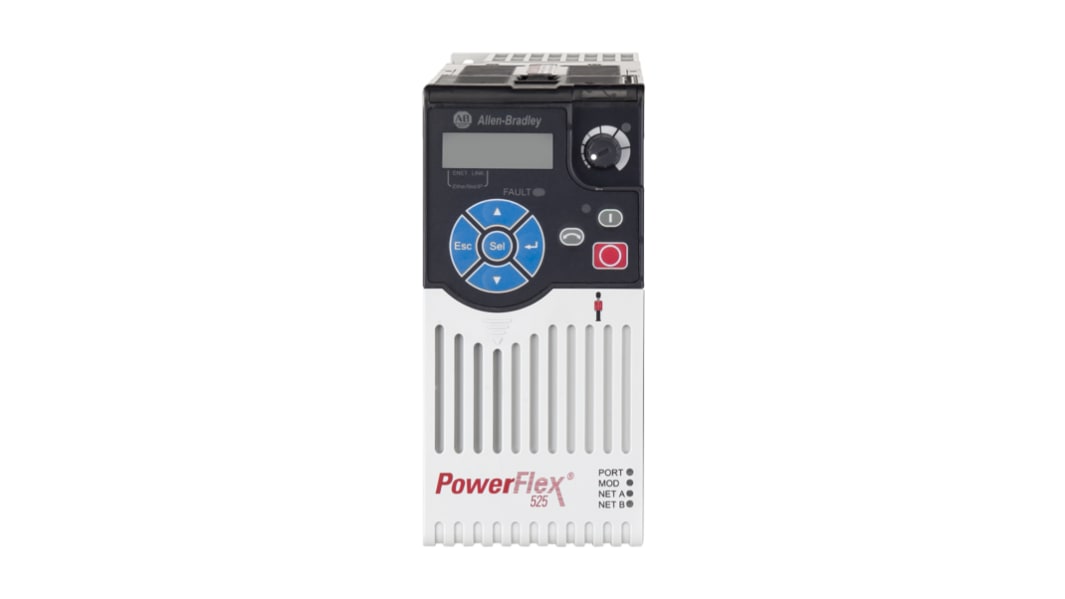

Allen Bradley Inverter Drive, 0.4kW Power Rating, 2.5A Current Rating - PowerFlex 525 Series - 25B-A2P5N114
Adjust the speed or output of your electrical current with this inverter drive from Rockwell Automation's Allen Bradley range. It's typically installed between an electrical supply and a motor to regulate power transmission before it's used, maximising current safety. The inverter drive can convert alternating currents (AC) into direct currents (DC) to better suit your application. Its 2.5A (amperes) current rating is designed for low-powered circuits. You'll find devices like this used with conveyors, pumps and mixers.
Features & Benefits
• Wide operating temperature range between -20°C and +70°C for reliable industrial use
• Quick and easy DIN rail mounting
• IP20 (ingress protection) rating indicates the unit is touch-proof to protect users from the risk of electric shocks
• Quick and easy DIN rail mounting
• IP20 (ingress protection) rating indicates the unit is touch-proof to protect users from the risk of electric shocks
Standards and Certifications
• CE (Conformitè Europëenne)
• ATEX (Explosive Atmospheres)
• UL (Underwriters' Laboratories)
• TUV (Technical Inspection Association)
• ATEX (Explosive Atmospheres)
• UL (Underwriters' Laboratories)
• TUV (Technical Inspection Association)
Is it easy to operate this inverter drive?
This inverter drive is easy to operate thanks to its smart human interface system (HIM). It has multi-lingual QuickView, AppView and CustomView add-ons for accessible operation and parameterisation.
Specifications
Attribute | Value |
---|---|
Power Rating | 0.4 kW |
Phase | 1 |
Supply Voltage | 230 V ac |
Current Rating | 2.5 A |
For Use With | Networked Machine |
Series | PowerFlex 525 |
Field Bus Communication Type | DeviceNet |
IP Rating | IP20, IP30 |
Output Frequency | 500Hz |
STO | Yes |
Drive Type | Vector Control |
Mounting Type | DIN Rail |
Filter Included | Yes |
Control Panel | Yes |
Standards Met | ACS 156, ATEX, CE, CE Marine (RINA), C-Tick, cUL, GOST R, KCC, RoHS, Semi F47, TUV, UL |
Special Features | Enhance Safety, Excellent Reliability, Flexible Control |
Interface | Ethernet |
Hazardous Area Certification | ATEX |
Overall Length | 72mm |
Function | Motor Control |
Overall Depth | 172mm |
Overall Width | 152mm |
