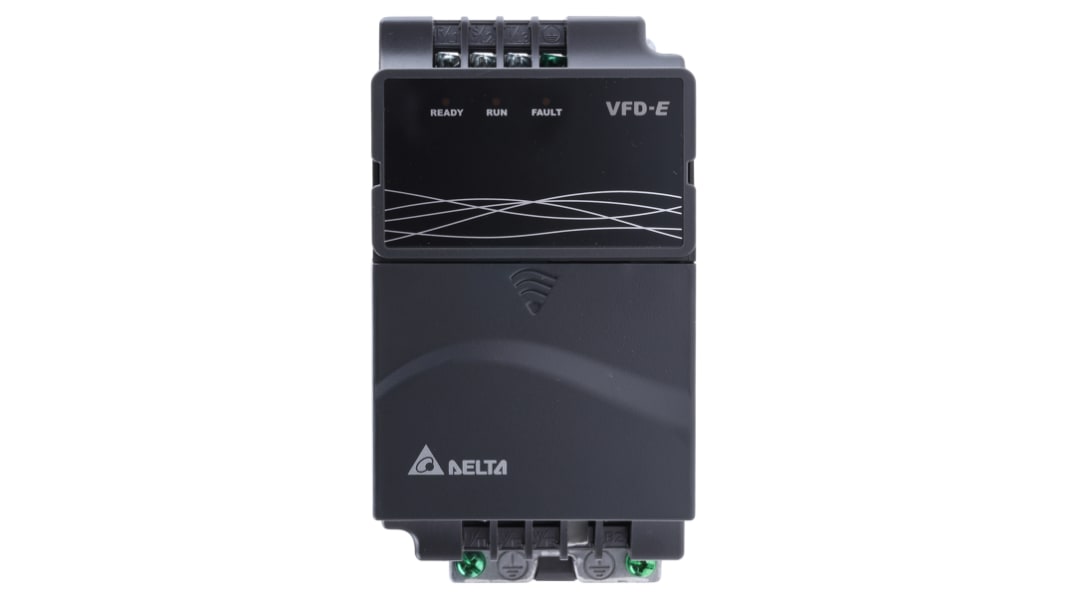

Delta Electronics Inverter Drive, 1.5 kW, 3 Phase, 460 V ac, 4.3 A, VFD-E Series
- RS Stock No.:
- 785-8550
- Mfr. Part No.:
- VFD015E43T
- Brand:
- Delta Electronics
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£389.98
(exc. VAT)
£467.98
(inc. VAT)
| Units | Per unit |
| 1 + | £389.98 |
- RS Stock No.:
- 785-8550
- Mfr. Part No.:
- VFD015E43T
- Brand:
- Delta Electronics
Legislation and Compliance
Non Compliant
Product Details
VFD-E-Series - Three Phase Input
The inverter VFD-E series is a sensorless vector AC micro drive. The VFD-E series represent a low horsepower, constant torque and IP20 rated drive.
Modular in design with flexible extension cards and a built-in PLC function, the VFD-E drive offers the ability to write and to execute simple Ladder Logic programs. This state-of-the-art series meets a full range of application requirements.
Modular in design with flexible extension cards and a built-in PLC function, the VFD-E drive offers the ability to write and to execute simple Ladder Logic programs. This state-of-the-art series meets a full range of application requirements.
Features and benefits
Three phase input
Output frequency 0.1 to 600 Hz
Modular & compact design
Built-in PLC function
Built-in EMI filter
RFI-switch for mains
Easy DC BUS sharing
Flexible extension
Complete Protection
Optional Fieldbus Modules (DeviceNet, Profibus, LonWorks and CANopen)
Drive does not include keypad, please order separately (Stock-no.: 785-8581)
Applications:
Smaller cranes
Washing machines
Grinding machine
Drilling machine
Wood machine
Webbing loom
Air conditioner for large buildings
Water supply system for large buildings
Delta VFD Range
Specifications
Attribute | Value |
|---|---|
| Power Rating | 1.5 kW |
| Phase | 3 |
| Supply Voltage | 460 V ac |
| Current Rating | 4.3 A |
| For Use With | AC Motors |
| Series | VFD-E |
| Field Bus Communication Type | RS485 ModBus |
| IP Rating | IP20 |
| Output Frequency | 0 → 600Hz |
| STO | No |
| Filter Included | Yes |
| Control Panel | Yes |
| Overall Depth | 152mm |
| Overall Width | 72mm |
| Overall Length | 142mm |
