- RS Stock No.:
- 184-5686
- Mfr. Part No.:
- C200-06400350
- Brand:
- Control Techniques
Available to back order for despatch 26/07/2024
Added
Price Each
£1,601.59
(exc. VAT)
£1,921.91
(inc. VAT)
| Units | Per unit |
| 1 + | £1,601.59 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 184-5686
- Mfr. Part No.:
- C200-06400350
- Brand:
- Control Techniques
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

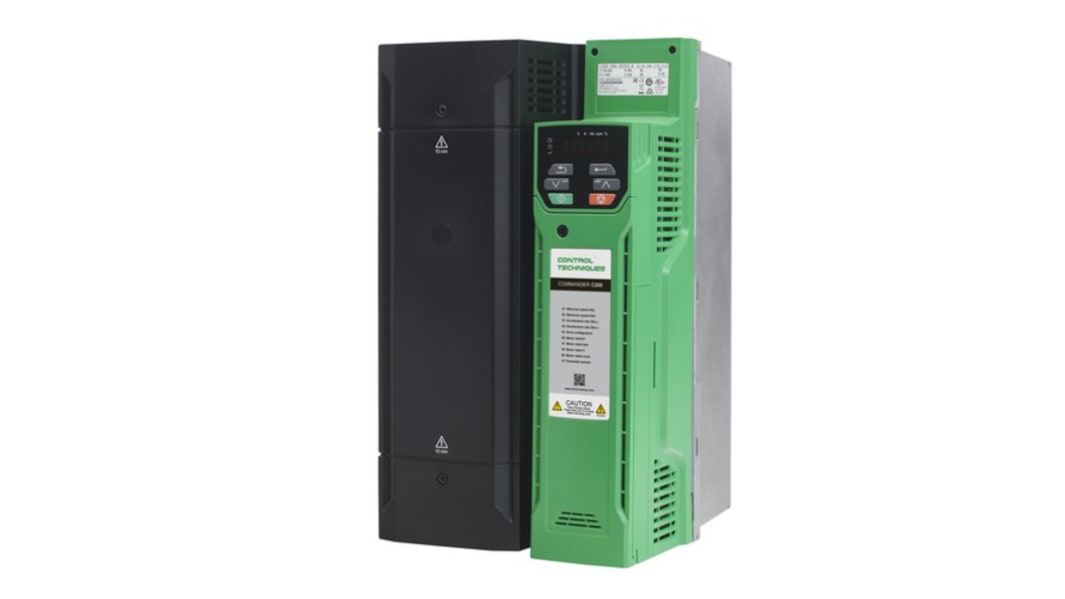

The new Commander C series has been designed to be a simple and compact AC motor speed controller that meets advanced requirements in a wide range of applications and provides optimum user experience.
Set just 4 parameters to get your drive started
Plug-in options for advanced control
Dual Safe Torque Off (STO)
Equipped with the latest energy saving features
Up to 180% overload for high torque applications
On board PLC
Straightforward installation and commissioning
Easy motor pairing and performance control
Robust and reliable design
Plug-in options for advanced control
Dual Safe Torque Off (STO)
Equipped with the latest energy saving features
Up to 180% overload for high torque applications
On board PLC
Straightforward installation and commissioning
Easy motor pairing and performance control
Robust and reliable design
Specifications
Attribute | Value |
|---|---|
| Power Rating | 15 kW |
| Phase | 3 |
| Supply Voltage | 380 → 480 V ac |
| Current Rating | 35 A |
| Series | C200 |
| For Use With | AC Motors |
| Field Bus Communication Type | AI-485 Adaptor, SI-CANopen SI-DeviceNet, SI-EtherCAT, SI-Ethernet, SI-PROFIBUS, SI-PROFINET |
| IP Rating | IP20 |
| Output Frequency | 0 → 550Hz |
| Drive Type | Variable Speed |
| Mounting Type | Panel Mount |
| Better World Product | Yes |
| Control Panel | Yes |
| Better World Claim | Saves energy |
| Overall Width | 227mm |
| Overall Depth | 391mm |
| Function | Motor Control |
| Overall Length | 210mm |
