MPN

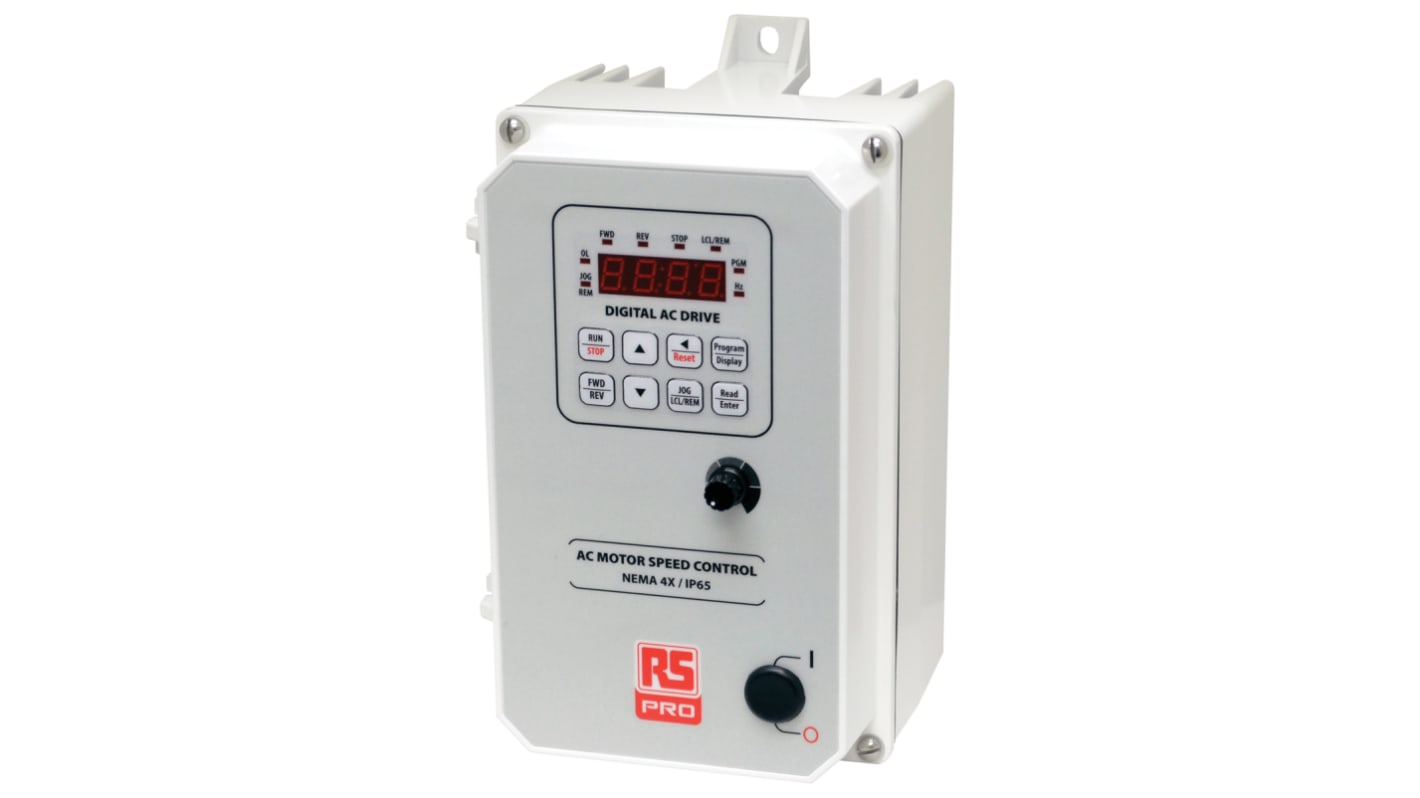

RS PRO Inverter Drive, 1-Phase In, 50 → 60Hz Out 0.75 kW, 230 V ac, 3.6 A


Discontinued product
RS Stock No.:
136-3115
Brand:
RS PRO
COO (Country of Origin):
US

RSDA Inverter


Professional range of RS Pro inverters from the RSDA series. Perfect in situations where a robust and sleek design is necessary. These RS Pro inverters can be used in various applications including conveyors, HVAC and pumps. The RSDA series inverters feature common sense programming (CSP) to organise parameters into easy to understand intuitive groups. All models are highly reliable and excellent quality.


Features and Benefits


Programmable 4-Digit display
Status indicator LEDs

Multi function keypad

Main speed potentiometer

Starting torque: 200%

CSP - Common Sense Programming (Easy Start)


RS Pro Inverter Drives

AttributeValue
Power Rating0.75 kW
Phase1
Supply Voltage230 V ac
Current Rating3.6 A
Output Frequency50 → 60Hz
For Use WithAC Induction Motors
Ambient Temperature0 → +40°C
Overall Width149mm
Overall Length140mm
Overall Depth242mm
Control PanelYes
Drive TypeVector Control
Filter IncludedYes
Mounting TypePanel Mount, Wall Mount
FunctionSensorless Flux Vector Control
IP RatingIP65
SeriesRSDA
Standards MetCE, cULus
Special FeaturesBuilt In Potentiometer, Electronic Inrush Current Limit (EICL) Protection, Holding Torque at Zero Speed, Jog Local/Remote, Multifunction Output Relay, Ride Through
Priced to ClearYes
