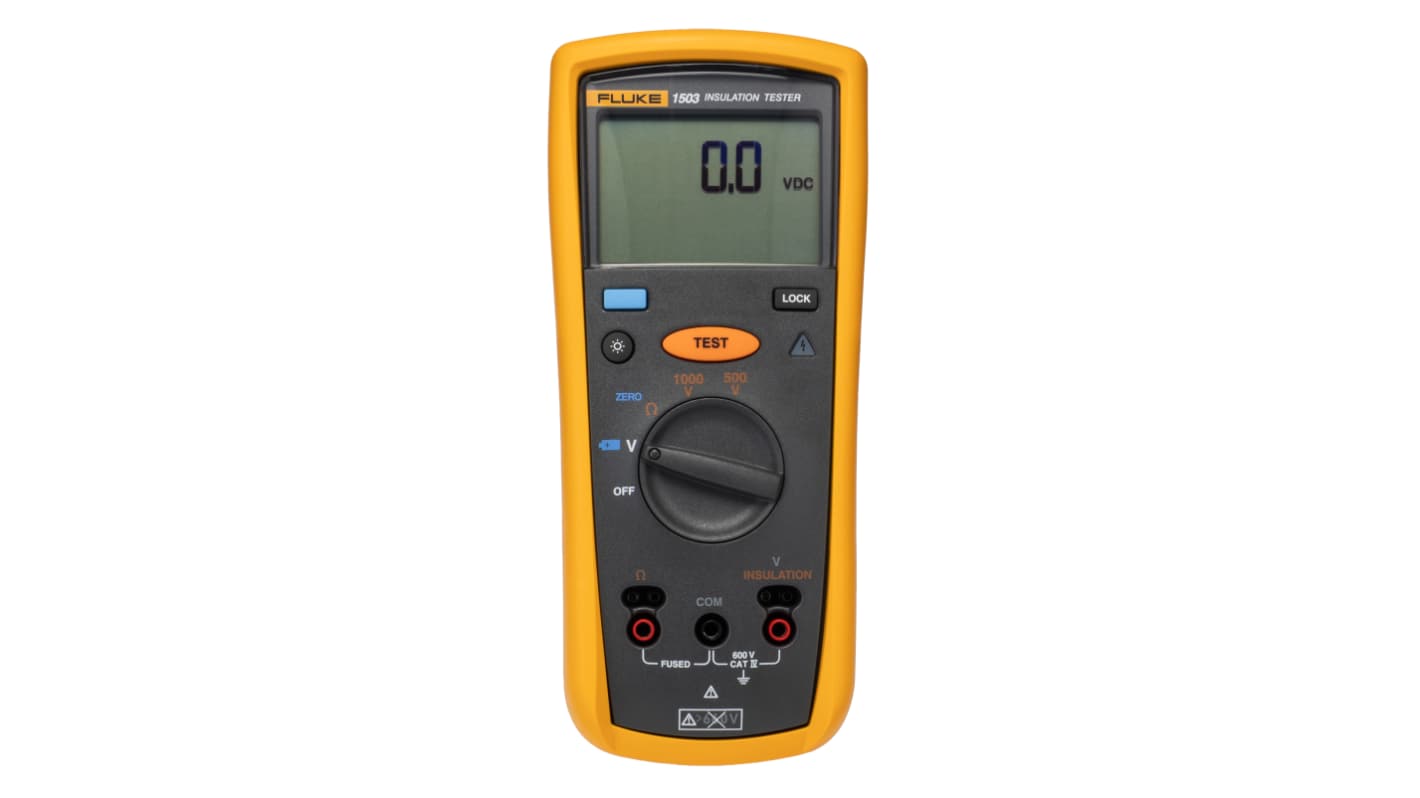

Fluke 1503, Insulation Tester, 1000V, 2GΩ, CAT III 600V UKAS Calibration

  • RS Stock No. 528-9359
  • Mfr. Part No. FLUKE 1503
  • Brand Fluke
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

Fluke 1500 Series Electrical Insulation Testers

Fluke 1507 (10 GΩ) and 1503 (2 GΩ) electrical insulation testers are compact, rugged, reliable and easy-to-use. Their multiple test voltages make them instruments of choice for troubleshooting, commissioning and preventative maintenance applications. The remote probe helps save time and money when performing tests.

Features & Benefits

Insulation test range 0.01 MΩ to 10 GΩ (1507), 0.1 MΩ to 2 GΩ (1503)Insulation test voltages 500 V, 1000 V (1503 only), 50 V, 100 V, 250 V (both models)Automatic calculation of Polarisation Index and Dielectric Absorption Ratio (1507)Compare (Pass/Fail) function (1507)Repetitive or hard-to-reach testing easy with the remote test probeFor added user protection, live circuit detection prevents insulation test if voltage > 30 V is detected Auto-discharge of capacitive voltage for added user protectionAC/DC voltage 0.1 V to 600 V200 mA continuityResistance 0.01 Ω to 20.00 kΩAuto power offLarge, backlit displayCAT IV 600 V overvoltage category ratingRemote probe, test leads, probes and alligator clips included with each testerAccepts optional Fluke TPAK magnetic hanging systemFour AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation te

Supplied with

Remote probe, test leads, test probes, alligator clips, holster, user documentation

Buy Fluke products and claim another Fluke product free.
Between September 1, 2020 and December 15, 2020 customer who purchase a Fluke product (inc. Fluke Networks) have the opportunity to claim a free product through the Fluke website with the original proof of purchase, invoice, or receipt. The product can be claimed by visiting the Fluke website - www.fluke.co.uk/freefluke. There are six levels of free tools to claim. They are separated based on the value of the qualifying purchase, starting at as little as only £100. For each level there is a fixed range of products to claim, based on the value of the original purchase.

Specifications
Attribute Value
Tester Type Insulation Tester
Minimum Test Voltage 500V
Maximum Test Voltage 1000V
Maximum Insulation Resistance Measurement 2GΩ
Display Type Graphic Display - Backlit
Calibrated UKAS
Test Current 200mA
Minimum Operating Temperature -20°C
Maximum Operating Temperature +55°C
Power Source Battery
Safety Category Level CAT III, CAT IV
Safety Category Voltage 600V
Safety Category CAT III 600 V, CAT IV 600V
Length 203mm
Model Number p 1503
Weight 550g
Height 50mm
Battery Type AA
Dimensions 203 x 100 x 50mm
Width 100mm
9 In stock for delivery within 2 working days
Price Each
£ 414.00
(exc. VAT)
£ 496.80
(inc. VAT)
Units
Per unit
1 +
£414.00
Not available for guaranteed pre 9am/10am delivery
