RS PRO RS5505, Insulation Tester, 1000V, 4000MΩ, CAT III 1000V RS Calibration

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

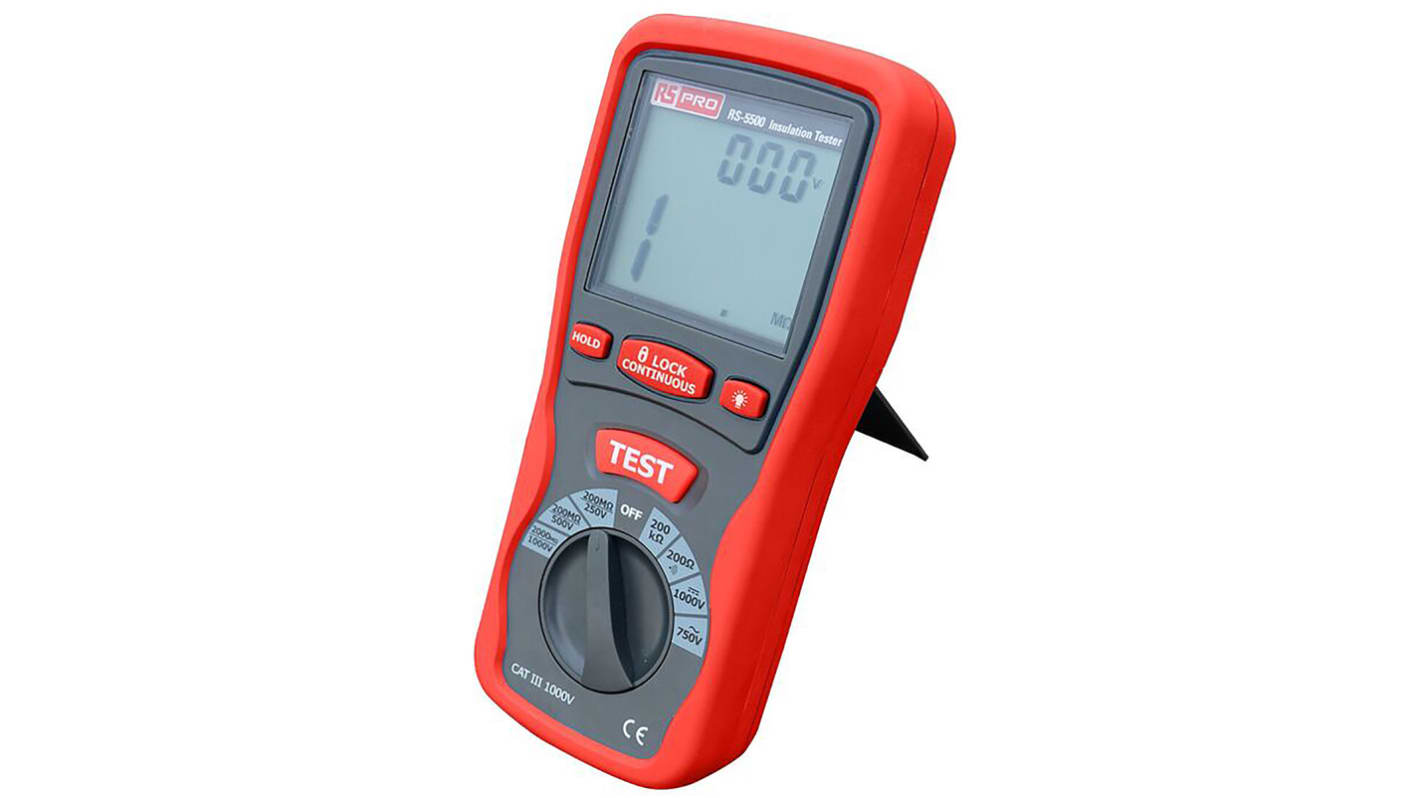

RS PRO RS5505 Insulation and Continuity Tester

Insulation resistance testers are used to ensure the insulation of wiring is safe, or undamaged after electrical work has been carried out. Testers or megohmmeters are vital in preventing tripped fuses, electrical equipment and instrument breakdown, risk of electric shock or fires.

RS5505 is a great value digital insulation tester and continuity tester complying with IEC10101, CAT III for measurements performed in building installations. It features a compact light weight design for continuity and portability. Featuring double-moulded plastic housing providing ultimate protection from harsh environments. Also provided with this purchase are test leads, 6 x AA 1.5 V batteries, a plastic carrying case and user manual.

Features and Benefits:

• Large dual display with backlight
• Live circuit detection prevents insulation test if voltage <30 V is detected (for added user protection)
•AC Voltage (40Hz to 400Hz)
• 200 mA short current continuity range
• Test Hold function for easy operation
• Over range indication
• Low battery indication
• Double-moulded plastic housing
•Weight approximately 700 g includes battery

Dimensions 200 mm x 92 mm x 50 mm

Standards

IEC10101, CAT III 1000 V

Supplied with

Test leads, AA 1.5 V batteries x6, plastic carrying case and user manual

RS Pro Insulation Testers

Specifications
Attribute Value
Tester Type Insulation Tester
Minimum Test Voltage 125V
Maximum Test Voltage 1000V
Maximum Insulation Resistance Measurement 4000MΩ
Display Type LCD
Calibrated RSCAL
Test Current 1mA
Minimum Operating Temperature 0°C
Maximum Operating Temperature +40°C
Power Source Battery
Safety Category Level CAT III
Safety Category Voltage 1000V
Safety Category CAT III 1000V
Model Number p RS5505
Weight 582g
Width 50mm
Height 200mm
Battery Type AA
Dimensions 92 x 50 x 200mm
Length 92mm
139 In stock for delivery within 2 working days
Price Each
£ 191.14
(exc. VAT)
£ 229.37
(inc. VAT)
Units
Per unit
1 +
£191.14
Not available for guaranteed pre 9am/10am delivery
