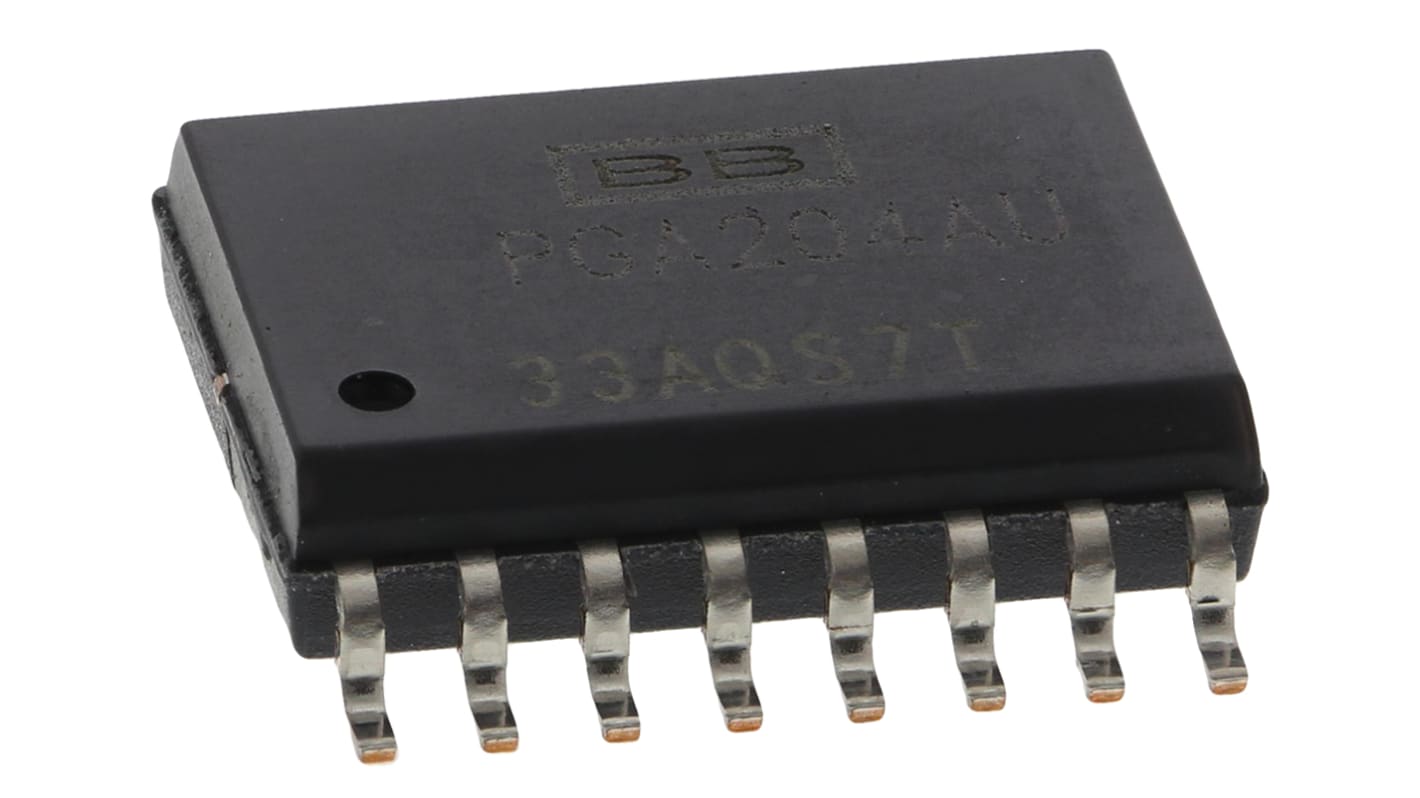

PGA204AU Texas Instruments, Instrumentation Amplifier, 125μV Offset 1MHz, 16-Pin SOIC
- RS Stock No.:
- 121-8274
- Mfr. Part No.:
- PGA204AU
- Brand:
- Texas Instruments
Available to back order for despatch 23/04/2025
Added
Price Each (In a Tube of 40)
£14.802
(exc. VAT)
£17.762
(inc. VAT)
| Units | Per unit | Per Tube* |
| 40 + | £14.802 | £592.08 |
| *price indicative | ||
- RS Stock No.:
- 121-8274
- Mfr. Part No.:
- PGA204AU
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
Product Details
Programmable Gain Amplifiers (PGA), Texas Instruments
Programmable Gain Amplifiers (PGA)
Programmable Gain Amplifiers are Operational, Instrumentation or Differential Amplifiers in which the gain can be programmed or selected, either via hardware (IC pin selection) or software using a serial communications link.
Specifications
Attribute | Value |
|---|---|
| Power Supply Type | Dual |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 16 |
| Typical Dual Supply Voltage | ±15V |
| Maximum Input Offset Voltage | 125µV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Input Resistance | 10GΩ |
| Minimum CMRR | 75dB |
| Typical Gain Bandwidth Product | 1MHz |
| Maximum Supply Current | 7.5 mA |
| Height | 2.35mm |
| Width | 7.52mm |
| Dimensions | 10.28 x 7.52 x 2.35mm |
| Length | 10.28mm |
