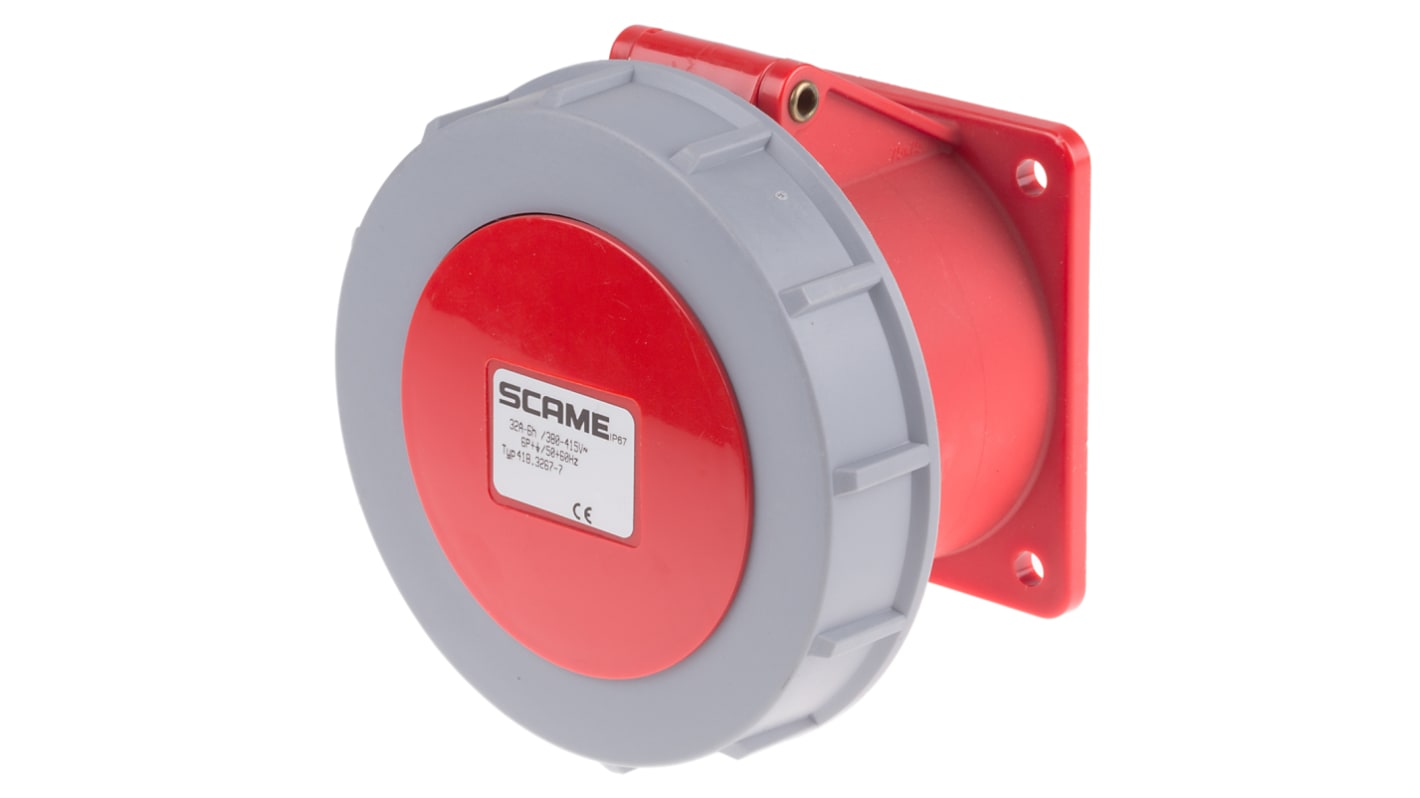

RS PRO IP67 Red Panel Mount 6P+E Industrial Power Socket, Rated At 32A, 415 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Red 6P+E, 6h, IP67 Rated Female Flush Mount Inlet, 16A, and 32A, Optima-Seven

Red 6 pole plus earth female flush mount inlets with hour position 6h, offered in 16A, and 32A versions, voltage rating 346 V to 415 V, and IP67 rated complete with socket cover. These female flush mount inlets are suitable for many electrical distribution applications, motor control star/delta, and monitoring signals. All models are highly reliable and excellent quality.

Features & Benefits

• Flush Mount 6P+E, 6 h
• 16A and 32A versions
• Voltage rating 346 V to 415 V
• IP67 rated

Approvals

EN60309-1, 1/A1, 1/A2, CE

RS Pro - IP67 Plugs and Sockets

Specifications
Attribute Value
Current Rating 32A
Plug/Socket Socket
Pole Format 6P+E
Voltage Rating 415 V
Mounting Type Panel Mount
IP Rating IP67
Colour Red
Gender Female
Body Orientation Straight
Termination Method Crimp
Series Optima
11 In stock for FREE next working day delivery
Price Each
Was £44.09
£ 35.27
(exc. VAT)
£ 42.32
(inc. VAT)
Units
Per unit
1 +
£35.27
