Product Details
Surface Mount Plugs & Sockets

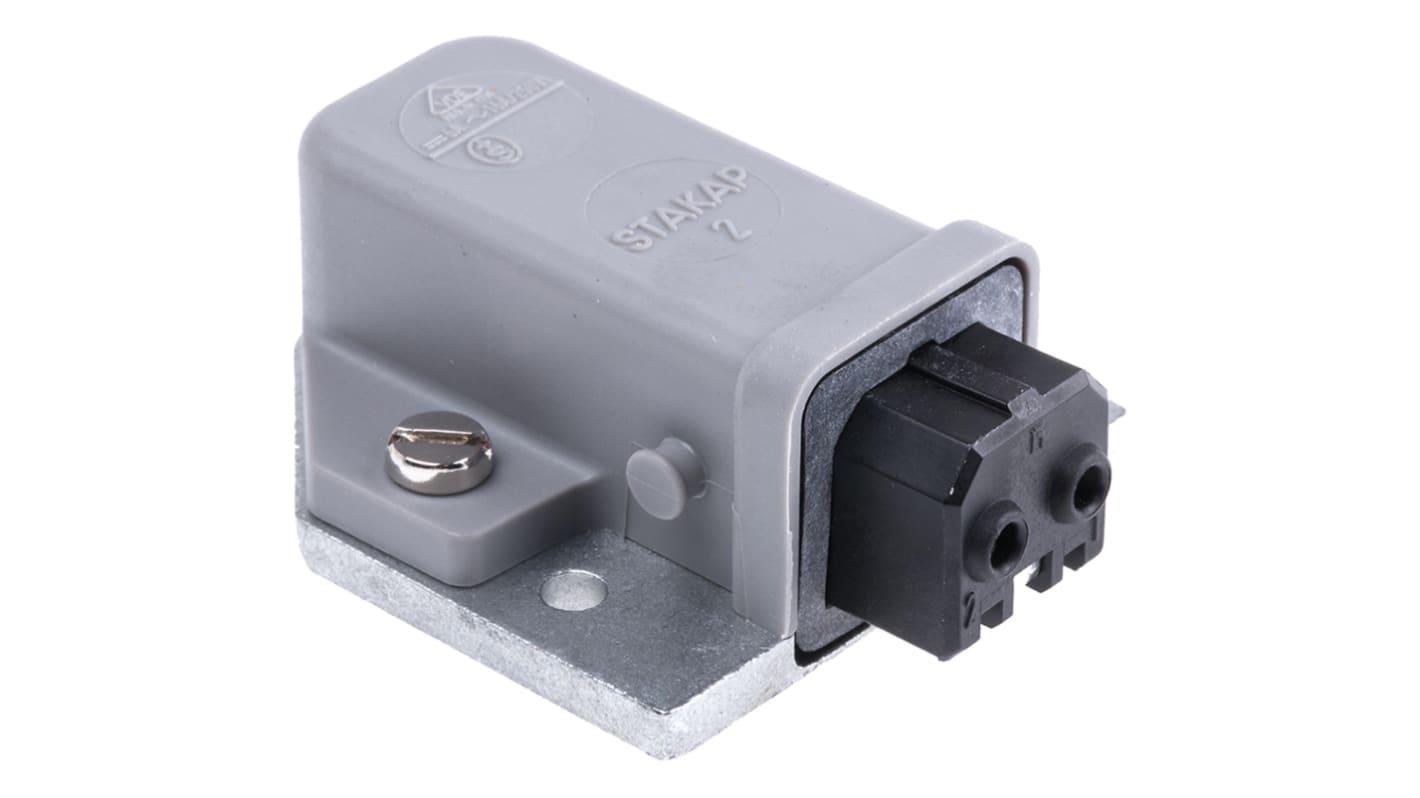

Belden Hirschmann Industrial Power Connector, Female, Screw Down Termination - ST Series - 930329106 STAKAP 2
Looking for a durable power source for your machine tools and equipment? Choose this connector from Belden's Hirschmann range. Its 2-pole configuration means you can use it to control 2 circuits at the same time, reducing your wiring needs. For electrical safety, the unit's body and contacts are housed in polyamide, which provides insulation to protect you from electric shocks. Its integrated latch locking mechanism provides a secure link that can withstand vibration in heavy-duty industrial environments.
Features and Benefits:
Voltage rating of 250V suitable for low-voltage applications
Two flange mounting holes for quick and simple screw mounting
Operating temperature range of -30°C to +90°C for use in challenging settings
Two flange mounting holes for quick and simple screw mounting
Operating temperature range of -30°C to +90°C for use in challenging settings
Applications:
Mining and quarrying
Construction industry
Assembly lines
Construction industry
Assembly lines
Is this plug safe to handle?
Yes, it has an IP20 rating, so it's touch-proof and protected against objects over 12mm in size.
Specifications
Attribute | Value |
---|---|
Current Rating | 16A |
Plug/Socket | Plug |
Pole Format | 2P |
Voltage Rating | 250 V |
Mounting Type | Panel Mount |
Gender | Female |
Body Orientation | Straight |
Termination Method | Screw |
IP Rating | IP20 |
Series | ST |
Colour | Grey |
Cable CSA | 0.25 → 1.50mm² |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +90°C |
