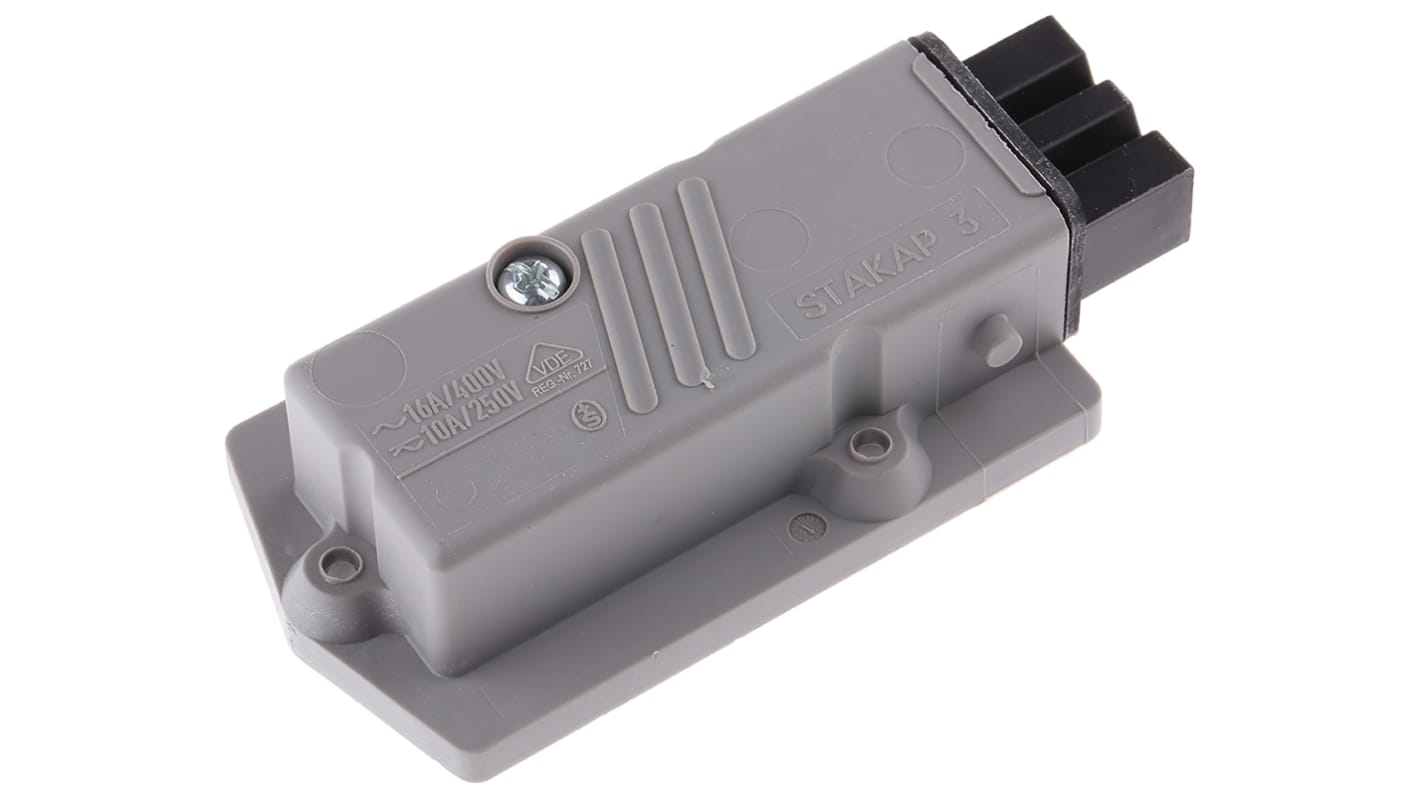

Hirschmann, ST IP54 Grey Panel Mount 3P + E Industrial Power Socket, Rated At 16A, 250 V, 400 V
- RS Stock No.:
- 155-9496
- Mfr. Part No.:
- 932513106 STAKAP 3 N
- Brand:
- Hirschmann
29 In stock - FREE next working day delivery available
5 available from Europe for delivery within 1 working day(s).
Added
Price Each
£10.16
(exc. VAT)
£12.19
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £10.16 |
| 10 - 24 | £9.75 |
| 25 - 49 | £9.35 |
| 50 + | £8.95 |
- RS Stock No.:
- 155-9496
- Mfr. Part No.:
- 932513106 STAKAP 3 N
- Brand:
- Hirschmann
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Surface Mount Plugs & Sockets
Belden Hirschmann Industrial Power Connector, Female, 5m Ohm Contact Resistance - ST Series - 932513106 STAKAP 3 N
Safely energise tools and machinery with this industrial power connector socket from Belden's Hirschmann range. It has copper and zinc contacts that are highly conductive with a low resistance of 5mOhm, giving you a reliable connection. With its 3-pole construction, this unit is a practical choice for 3-phase circuits. An integrated earth pole carries excess current to the ground for electrical safety.
Features and Benefits:
• Screw termination method is simple and doesn't need complex tools
• PA housing for durability and insulation from electric shocks
• Broad operating temperature range of -30ºC to +90ºC for use in challenging conditions
• Tin contact plating for corrosion resistance and long-term performance
• PA housing for durability and insulation from electric shocks
• Broad operating temperature range of -30ºC to +90ºC for use in challenging conditions
• Tin contact plating for corrosion resistance and long-term performance
Applications:
• Machine building
• Measurement equipment and instrumentation
• Measurement equipment and instrumentation
What's the IP rating of this connector?
This connector has an IP54 rating, which means that it can withstand dust and water.
Specifications
Attribute | Value |
|---|---|
| Current Rating | 16A |
| Plug/Socket | Socket |
| Pole Format | 3P + E |
| Voltage Rating | 250 V, 400 V |
| Mounting Type | Panel Mount |
| Gender | Female |
| Body Orientation | Straight |
| Termination Method | Screw |
| Series | ST |
| IP Rating | IP54 |
| Colour | Grey |
| Cable CSA | 0.25 → 1.50mm² |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +90°C |
