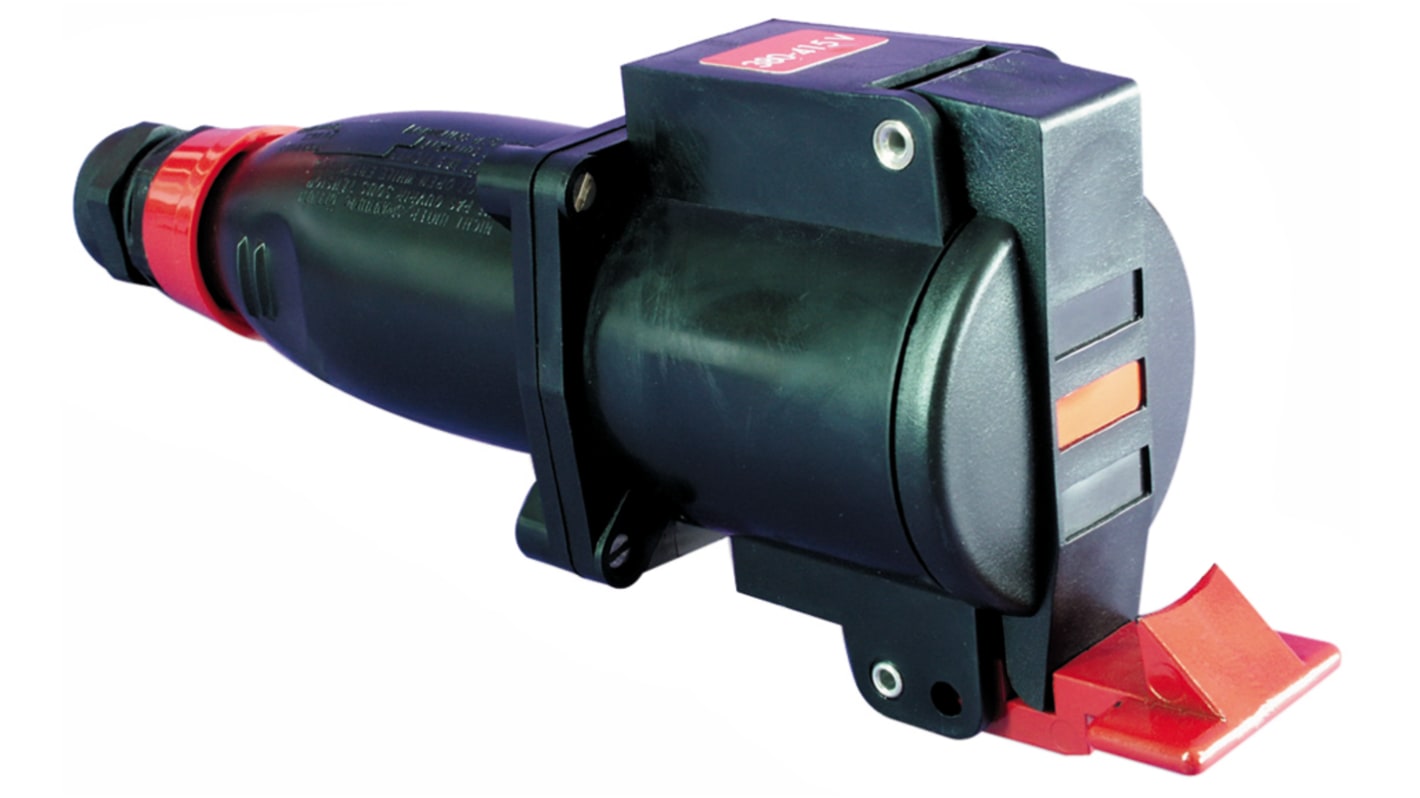

Emerson Network Power PRE Series, IP66 Purple Cable Mount 2P+E Industrial Power Socket, Rated At 16A, 20 → 25 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

PRE Series 16 Amp Plugs and Sockets use a pin and sleeve design to deliver safe power to stationary and portable equipment such as lighting systems, conveyors, heating and air conditioning equipment, compressors, pumps or motor generators. Suitable for use in damp, wet or corrosive environments, PRE plugs and sockets are keyed and colour coded per IEC directives.

Plug and socket system is designed with a safe disconnect mechanism to insure maximum hazardous location protection
The contact separation is in a flameproof chamber
Short circuit protection is 20 kA, while normal reference is 10 kA
Different voltages are colour coded for easy identification
The receptacles are keyed to accept only ATX plugs (other plugs cannot be inserted)
ATX plugs can be used in non-hazardous IEC 309 sockets

Specifications
Attribute Value
Current Rating 16A
Plug/Socket Socket
Pole Format 2P+E
Voltage Rating 20 → 25 V
Mounting Type Cable Mount
IP Rating IP66
Colour Purple
Gender Female
Body Orientation Straight
Termination Method Plug-In
Series PRE
Cable CSA 2 x 4mm²
Maximum Operating Temperature +55°C
Minimum Operating Temperature -40°C
Low Voltage Yes
10 In stock for FREE next working day delivery
Price Each
£ 177.44
(exc. VAT)
£ 212.93
(inc. VAT)
Units
Per unit
1 +
£177.44
