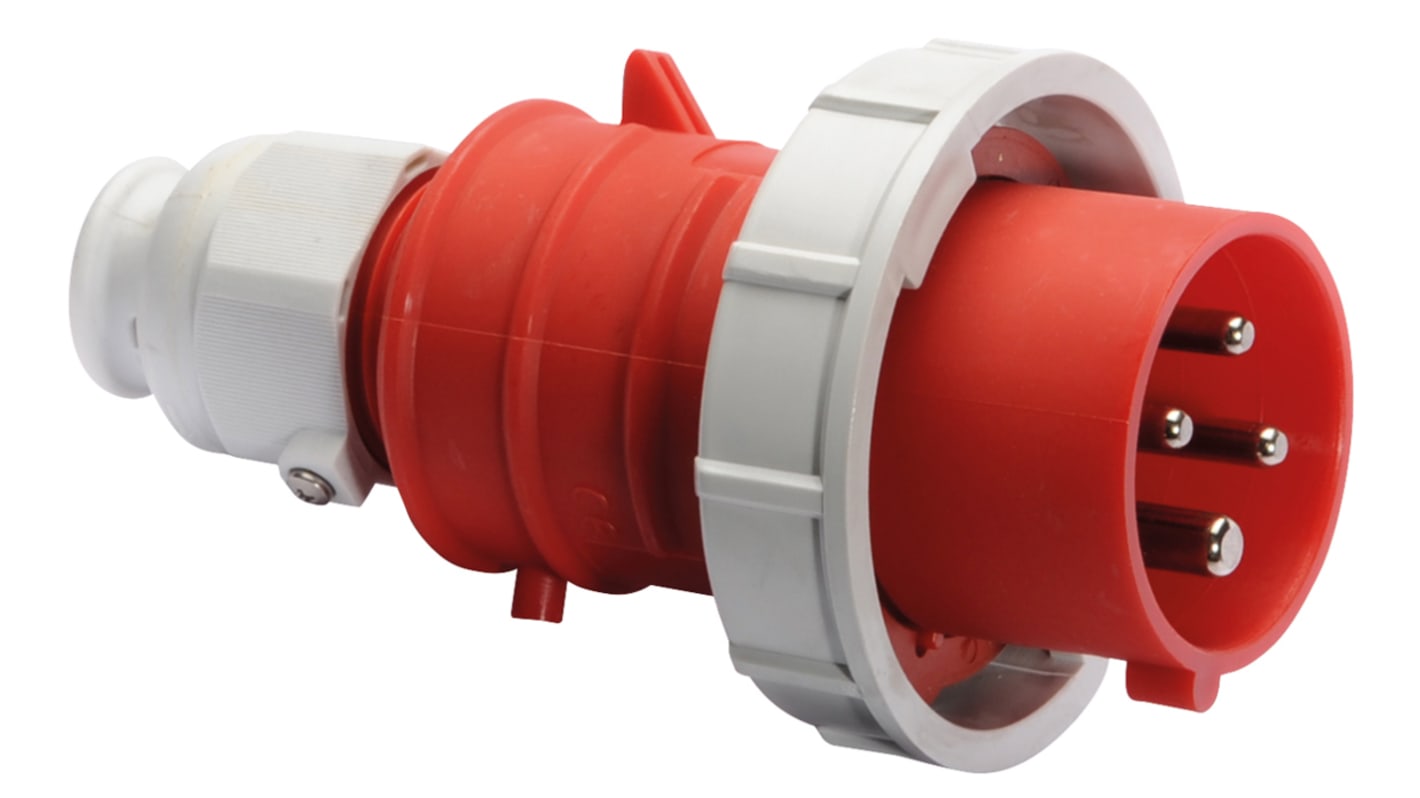

Bals IP67 Red Cable Mount 3P+E Industrial Power Plug, Rated At 32A, 415 V

  • RS Stock No. 136-5713
  • Mfr. Part No. 21351
  • Brand Bals
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Bals Quick Connect Cable Plug with Multi-Grip IP67

Bals cable mount plugs with Quick-Connect screwless connection and Multi-Grip cable gland system. The cable mount plugs offer IP67 protection in a robust housing design. The Multi-Grip cable gland system feature an integrated strain relief and a rubber seal to achieve high environmental protection. The Quick-Connect system is based on the cage clamp principle and offers maintenance free shock, vibration and temperature fluctuation resistance.

Features and Benefits

Multi-Grip cable gland Quick-Connect screwless connection
VDE tested
IP67 rated

Bals Industrial Connectors

Specifications
Attribute Value
Current Rating 32A
Plug/Socket Plug
Pole Format 3P+E
Voltage Rating 415 V
Mounting Type Cable Mount
IP Rating IP67
Colour Red
Gender Male
Body Orientation Straight
Termination Method Quick Connect
Cable CSA 6mm²
Available to back order for despatch 22/01/2020
Price Each
£ 29.26
(exc. VAT)
£ 35.11
(inc. VAT)
Units
Per unit
1 +
£29.26
