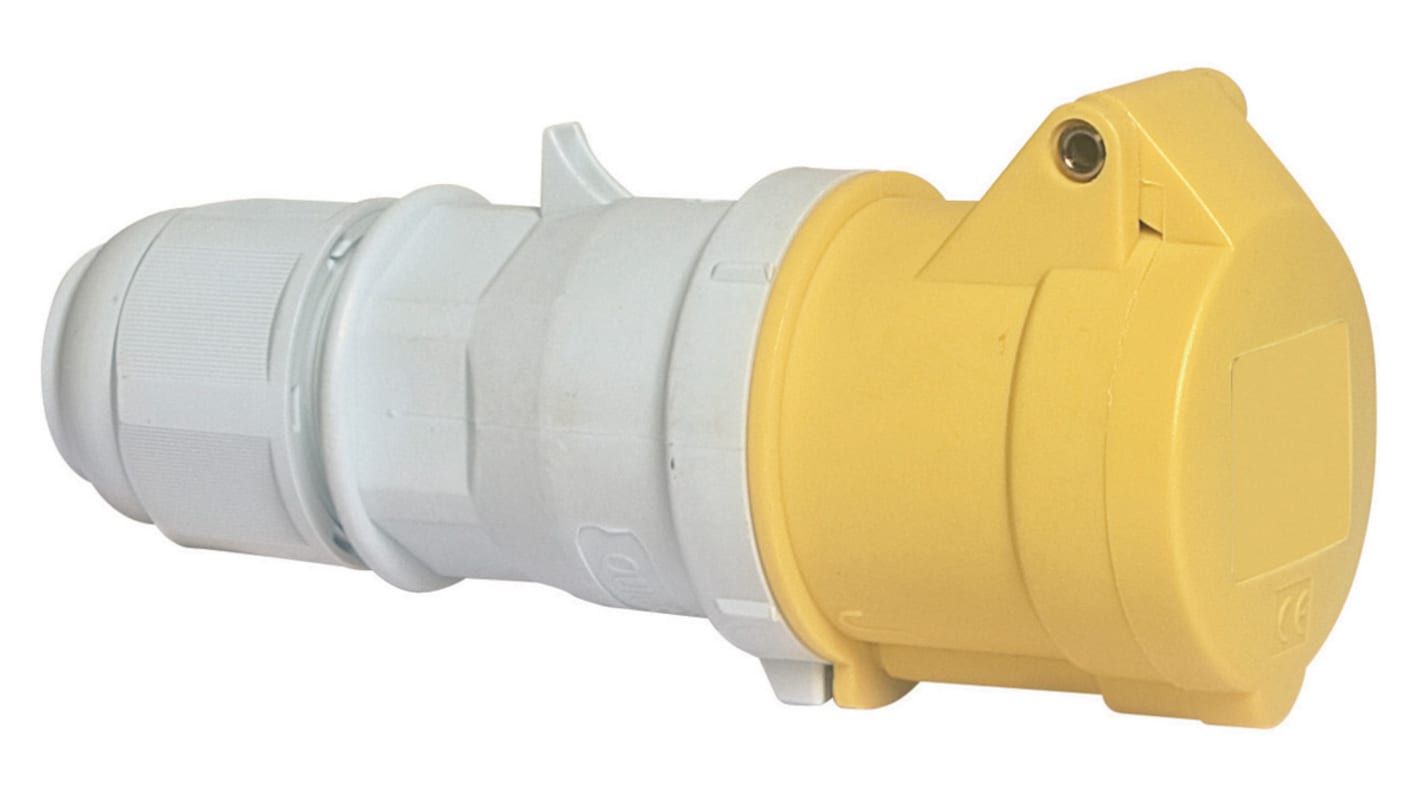

Bals IP44 Yellow Cable Mount 2P+E Industrial Power Socket, Rated At 32.0A, 110.0 V

  • RS Stock No. 136-5690
  • Mfr. Part No. 3137
  • Brand Bals
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Bals Quick Connect Socket with Multi-Grip IP44

Bals cable mount sockets with Quick-Connect screwless connection and Multi-Grip cable gland system. The cable mount sockets offer IP44 protection in a robust housing design. The Multi-Grip cable gland system feature an integrated strain relief and a rubber seal to achieve high environmental protection. The Quick-Connect system is based on the cage clamp principle and offers maintenance free shock, vibration and temperature fluctuation resistance.

Features and Benefits

Multi-Grip cable gland Quick-Connect screwless connection
VDE tested
IP44 rated

Bals Industrial Connectors

Specifications
Attribute Value
Current Rating 32.0A
Plug/Socket Socket
Pole Format 2P+E
Voltage Rating 110.0 V
Mounting Type Cable Mount
IP Rating IP44
Colour Yellow
Body Orientation Straight
Termination Method Quick Connect
Cable CSA 6.0mm²
6 In stock - FREE next working day delivery available
Price Each
Was £15.65
£ 14.09
(exc. VAT)
£ 16.91
(inc. VAT)
Units
Per unit
1 +
£14.09
