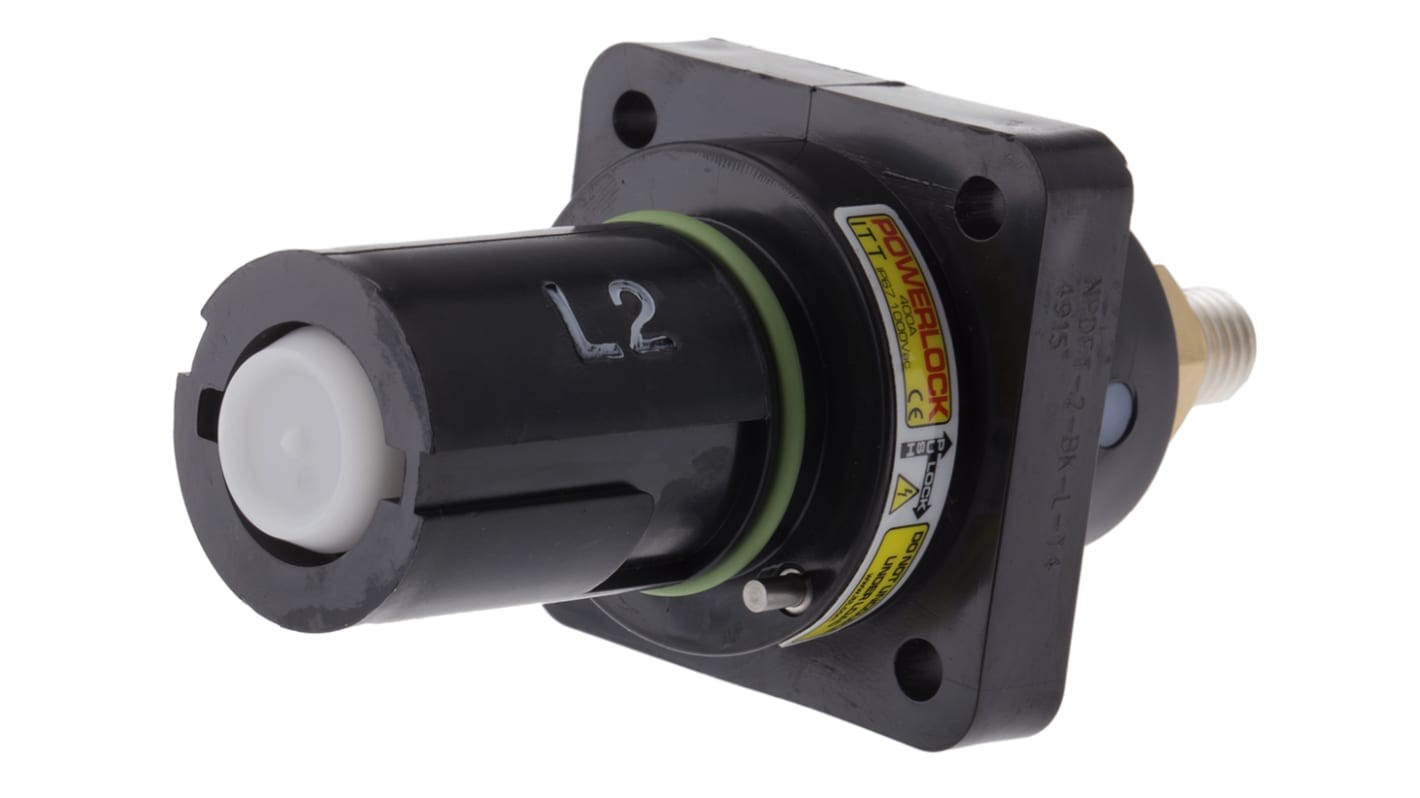

ITT Cannon Veam Powerlock Series, Panel Mount Industrial Power Socket, Rated At 400A, 1 kV ac

  • RS Stock No. 288-005
  • Mfr. Part No. NPDFT-2-BK-L-T4
  • Brand ITT Cannon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Panel Drain Connectors 400A

ITT VEAM PowerLock panel drain connectors are field installable power distribution connectors which serve a broad industry base including generator distribution connectors at carnivals, outdoor concerts, sporting events and many other heavy industry applications that require a robust and hard wearing power connector.ITT VEAM PowerLock panel drain connectors are single pole connectors that accept line source connectors of the same colour coding as part of the power supply daisy chain.

Supplied with female contact.
Rigid IP2Xspring loaded finger proof nose
O Ring to guarantee IP67 when mated

Note

Never attempt to uncouple a connector when under load. 400 and 600 amp connectors are interconnectable, which is not advisable in a power network, caution must be applied when building a network to ensure the power handling capabilities of connectors are not exceeded.

Approvals

IP67, UL94-V0, IP2X

//media.rs-online.com/t_line/L0287995-01.gif

Veam Powerlock

The Veam Powerlock connector series for field installable power distribution systems which offers the ultimate in safety and reliability under the most severe operating systems.,Typical applications include three phase motors, generators, load banks, lighting distribution panels and in-house supplies.

Specifications
Attribute Value
Current Rating 400A
Plug/Socket Socket
Voltage Rating 1 kV ac
Mounting Type Panel Mount
Body Orientation Straight
Minimum Operating Temperature -30°C
Maximum Operating Temperature +125°C
Series Veam Powerlock
7 In stock for FREE next working day delivery
Price Each
£ 37.00
(exc. VAT)
£ 44.40
(inc. VAT)
Units
Per unit
1 +
£37.00
