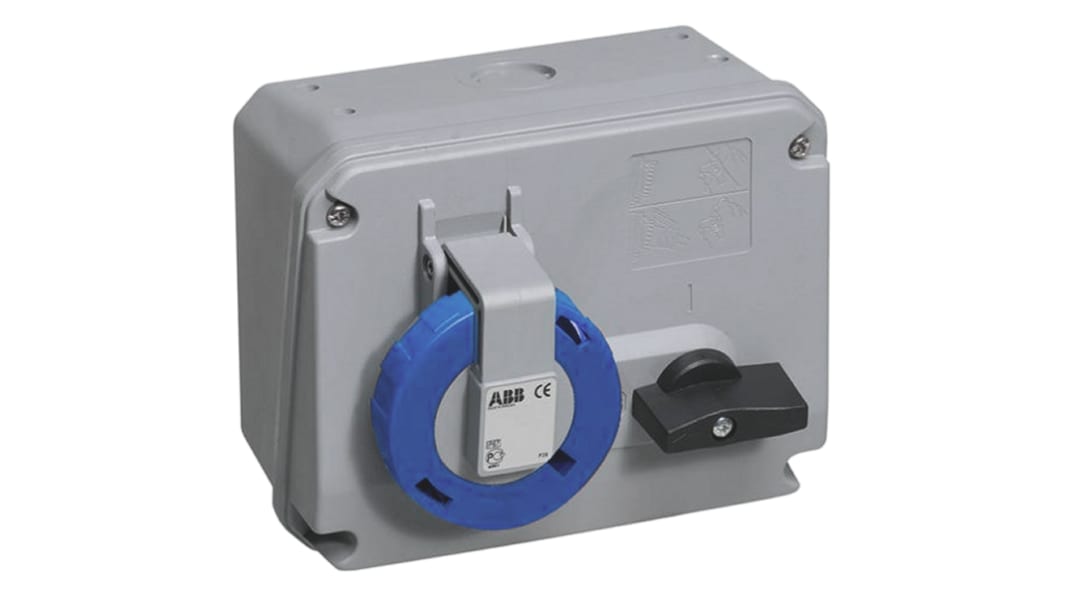

ABB Horizontal Switchable IP67 Industrial Interlock Socket 2P+E, 32A, 200 → 250 V

  • RS Stock No. 830-5287
  • Mfr. Part No. 2CMA167848R1000 - 232MHS6W
  • Brand ABB
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

ABB Critical and Safe Switched Interlock Socket Outlets, Horizontal, IP67

ABB Critical Safe range of horizontal interlocked socket outlet connectors available in 2P+E, 3P+E, 3P+N+E earth versions with 16A, 32A and 63A ratings as specified. All contacts are self cleaning and calibrated to maintain accurate contact pressure over time, waterproof IP67 rating. Critical & Safe is ideal for applications with high demands on safety, durability and performance. Ideal for applications with frequent connection and disconnection and for use in public areas, heavy industry, chemical industry, airports, hospitals and many others.

Durable plastic housing
Stainless steel screws

Standards

IEC 60 309-2,-4

ABB Critical and Safe Industrial Connectors

Specifications
Attribute Value
Plug/Socket Socket
Pole Format 2P+E
Switchable Yes
Colour Blue
IP Rating IP67
Voltage Rating 200 → 250 V
Current Rating 32A
Series Critical & Safe
Body Orientation Horizontal
Dimensions 168 x 136 x 129mm
Body Material PBT
Depth 129mm
Length 168mm
Width 136mm
2 In stock for FREE next working day delivery
Price Each
£ 183.38
(exc. VAT)
£ 220.06
(inc. VAT)
Units
Per unit
1 - 4
£183.38
5 - 9
£174.21
10 - 24
£165.04
25 - 49
£155.87
50 +
£146.70
