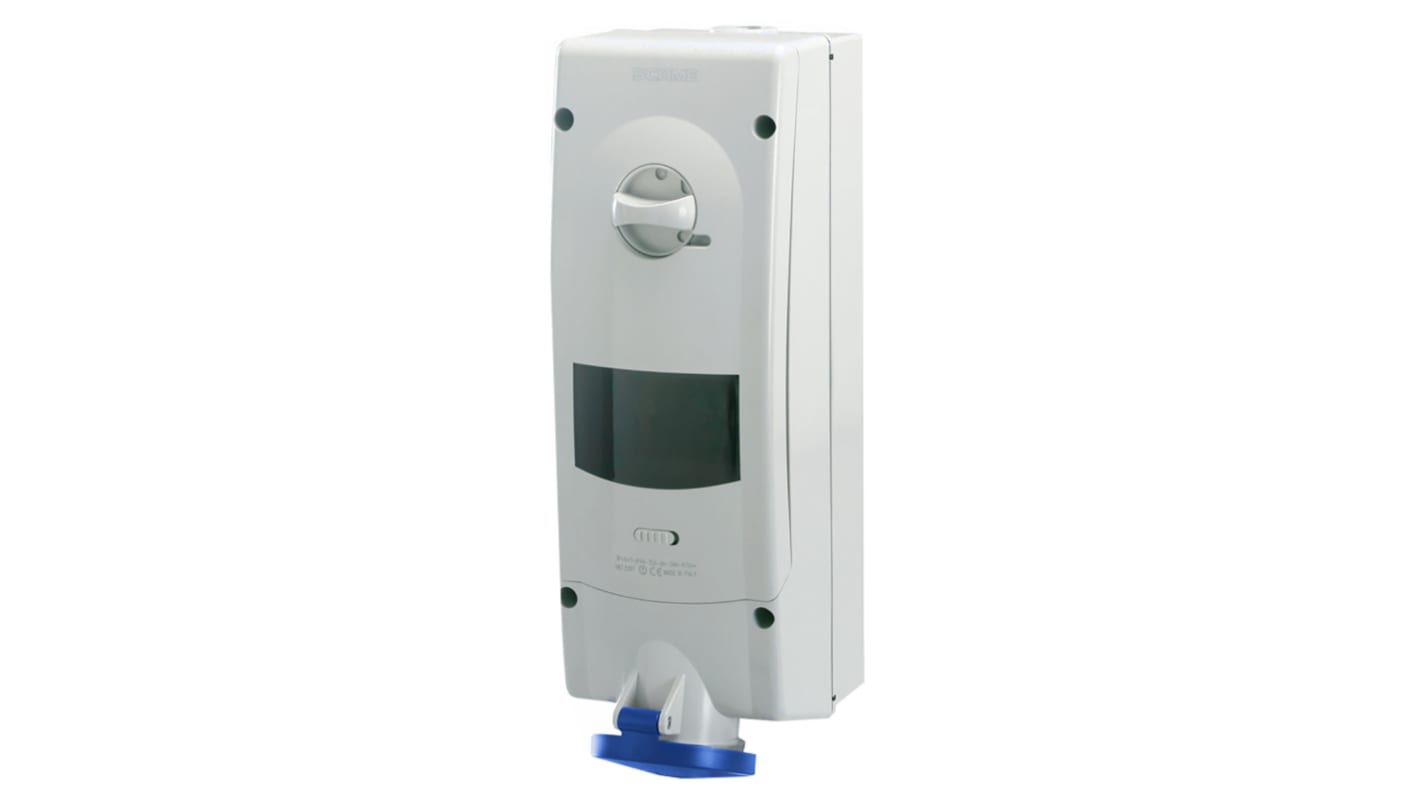

Scame Switchable IP44 Industrial Interlock Socket 2P+E, Earthing Position 6h, 32A, 230 V
- RS Stock No.:
- 125-4389
- Mfr. Part No.:
- 567.3283-R
- Brand:
- Scame
Available to back order for despatch 14/05/2024
Added
Price Each
£463.37
(exc. VAT)
£556.04
(inc. VAT)
| Units | Per unit |
| 1 + | £463.37 |
- RS Stock No.:
- 125-4389
- Mfr. Part No.:
- 567.3283-R
- Brand:
- Scame
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
Vertical - RCD Protected
Scame surface mounted RCD protected interlocked sockets feature hard plastic housing and a covered socket. They are designed for industrial use, but may also be suitable for a commercial environment.
Designed with safety in mind, this range features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.
These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)
Designed with safety in mind, this range features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.
These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)
Specifications
Attribute | Value |
|---|---|
| Plug/Socket | Socket |
| Pole Format | 2P+E |
| Switchable | Yes |
| Colour | Blue |
| IP Rating | IP44 |
| Voltage Rating | 230 V |
| Current Rating | 32A |
| Body Orientation | Straight |
| Dimensions | 136 x 199 x 513mm |
| Earthing Position | 6h |
| Body Material | Plastic |
| Depth | 513mm |
| Length | 136mm |
| Width | 199mm |
