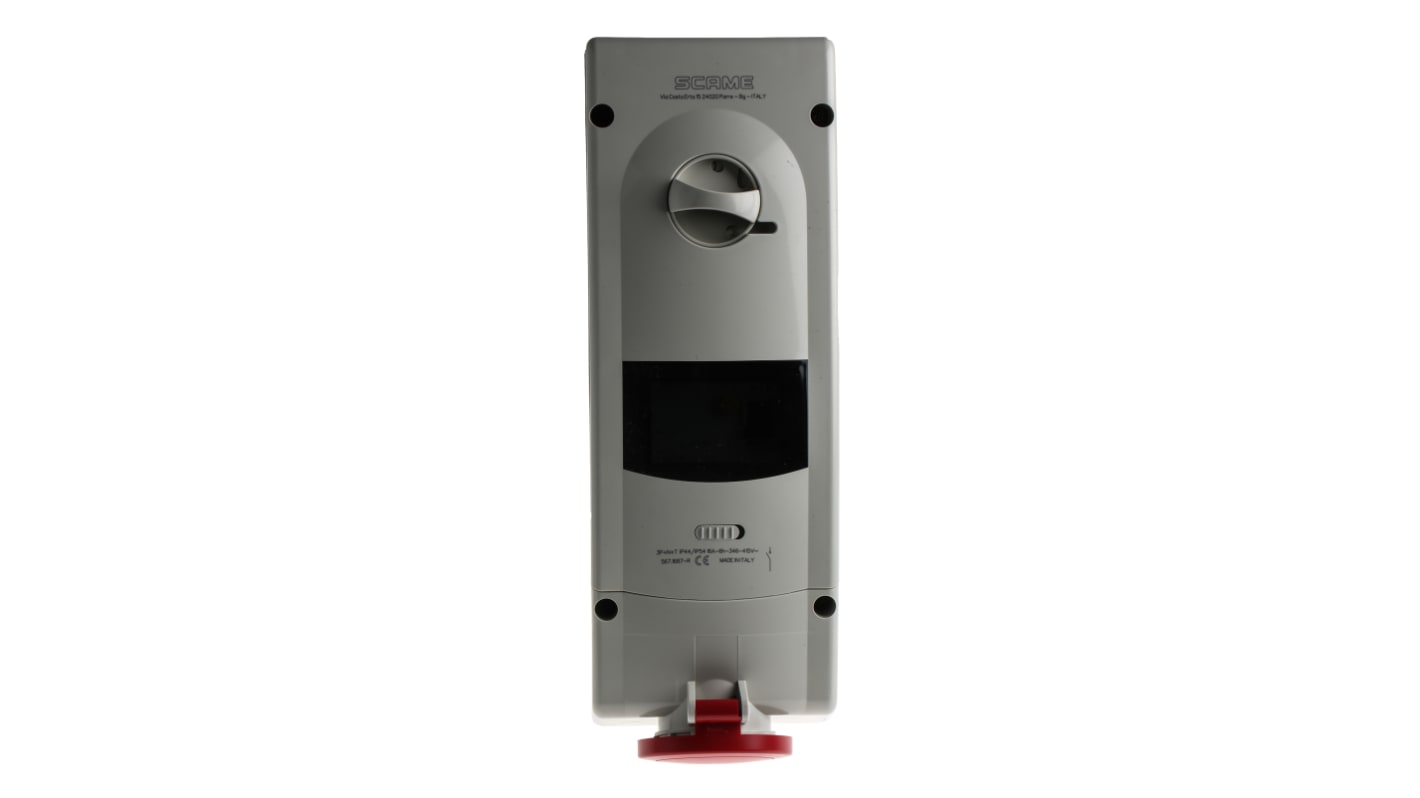

RS PRO Switchable IP44 Industrial Interlock Socket 3P+N+E, Earthing Position 6h, 16A, 400 V

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Vertical - RCD Protected

RS pro surface mounted RCD protected interlocked sockets feature hard plastic housing and a covered socket. They are designed for industrial use, but may also be suitable for a commercial environment.

Designed with safety in mind, this range features a mechanical interlock that prevents the switch from closing if the plug is not inserted, the extraction of the plug if the switch is closed, and the opening of the socket outlet cover if the switch is closed.

These outlets are available as protected to either IP44 (splash proof) or IP67 (watertight.)

Specifications
Attribute Value
Plug/Socket Socket
Pole Format 3P+N+E
Switchable Yes
Colour Red
IP Rating IP44
Voltage Rating 400 V
Current Rating 16A
Body Orientation Straight
Dimensions 136 x 190 x 506mm
Earthing Position 6h
Body Material Plastic
Depth 506mm
Length 136mm
Width 190mm
15 In stock - FREE next working day delivery available
Price Each
£ 164.80
(exc. VAT)
£ 197.76
(inc. VAT)
Units
Per unit
1 +
£164.80
