3XSERIAL-CH TO ETHERNET MODULE, POE

  • RS Stock No. 708-0053
  • Mfr. Part No. XP3002000-01R
  • Brand Lantronix
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

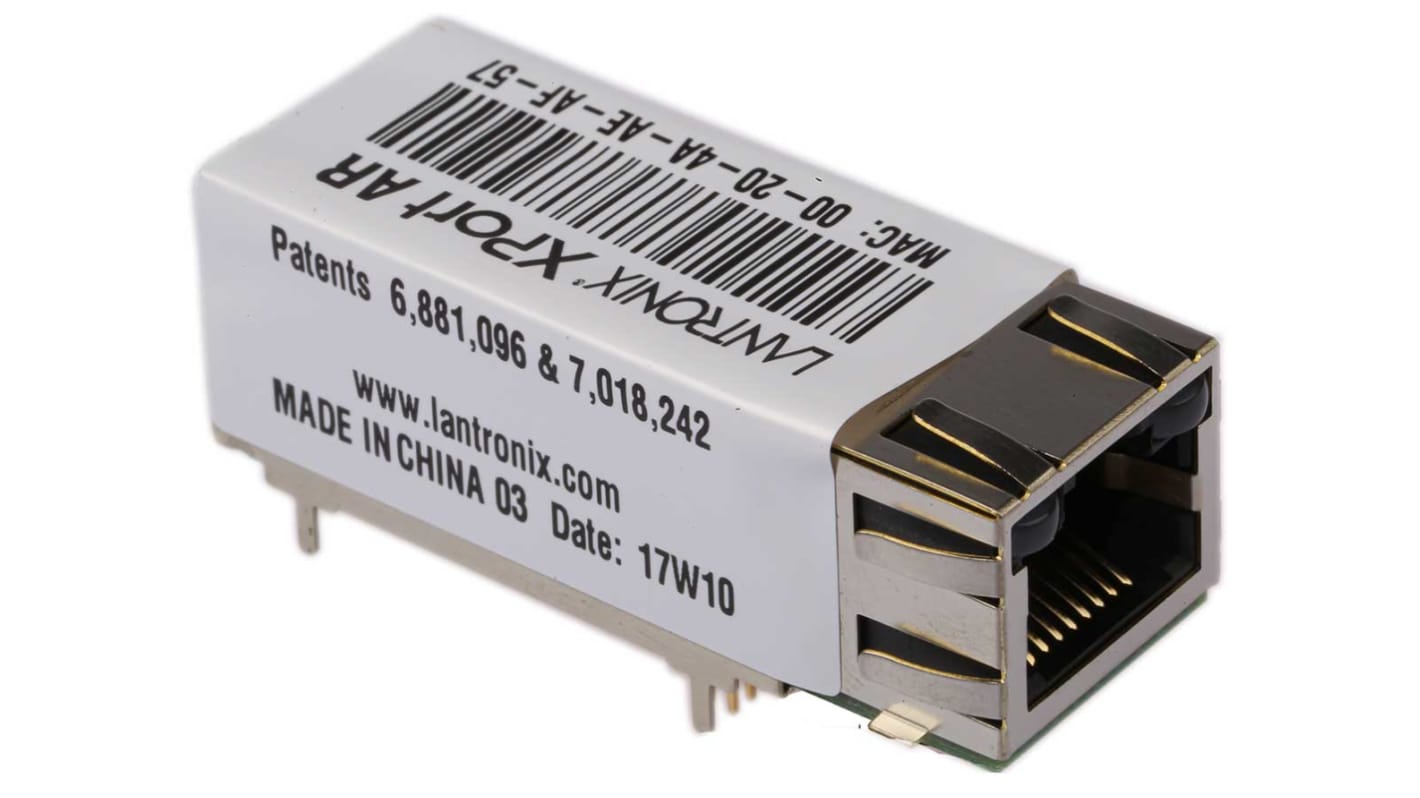

XPort AR Ethernet Embedded Network Processor Module

XPort Architect (AR) includes all the computing and networking features necessary to enable a networked device to operate autonomously in a Machine-to-Machine' (M2M) or 'Internet-of-Things' environment. When embedded into an application device, XPort AR enables the gathering, processing and communication of data over a traditional corporate or enterprise Ethernet network.

Ethernet 10Base-T or 100Base-TX (Auto-sensing) via RJ45 connector
Layer 3 Protocols: TCP, UDP, IP, ARP, ICMP, SSH, SSL, XML, HTTP, PPP, PAP, CHAP, DNS, SMTP, RSS, DHCP, BOOTP, AutoIP, SNMP, FTP, TFTP, Telnet, CGI
Management: Cisco-CLI, Internal Web Server, XML, Serial, Telnet, SSH, SSL,RSS, SNMP
Security: SSH Client & Server, SSL, 128/256/512/1024-bit AES (Rijndael), 3DES and RC4 Encryption,Public/Private-keys and Password Protection
SHA-1,MD5 Hashing Algorithms, Base-64 & Digest Authentication, User Access Lists, Hardened OS and Protocol Stacks
Internal Web Server: Fully brandable, 1.25MB internal directory-/file-based file system, CGI/CSS based, SSL supported
Based on the DSTni-EX Enhanced 16-bit x86 architecture with 4MB Flash memory, 1.25MB SRAM
Device interface: 3 x serial UART channels with DSR/CTS/RTS flow control
Data Rate: 300bps to 230.4kbps
Ethernet activity LEDs
IEEE 802.3af compliant pass-through Power-over-Ethernet (PoE) to device
Power supply: +3.3Vdc
Operating temperature range: -40 to +85°C
Package format: Extended RJ45 PCB-mounting socket
Dimensions: 45.7 x 16.51 x 17.8mm
Included Software: Evolution 3.0 Network Operating System, Windows-based DeviceInstaller, Com Port Redirector"
Applications: Asset tracking/accounting (Sarbanes-Oxley compliance), Workflow improvement/monitoring/reporting, Proactive maintenance services, Pre-emptive diagnosis, Fulfilment services

170 In stock for FREE next working day delivery
Price Each
£ 80.76
(exc. VAT)
£ 96.91
(inc. VAT)
Units
Per unit
1 - 4
£80.76
5 +
£75.25
