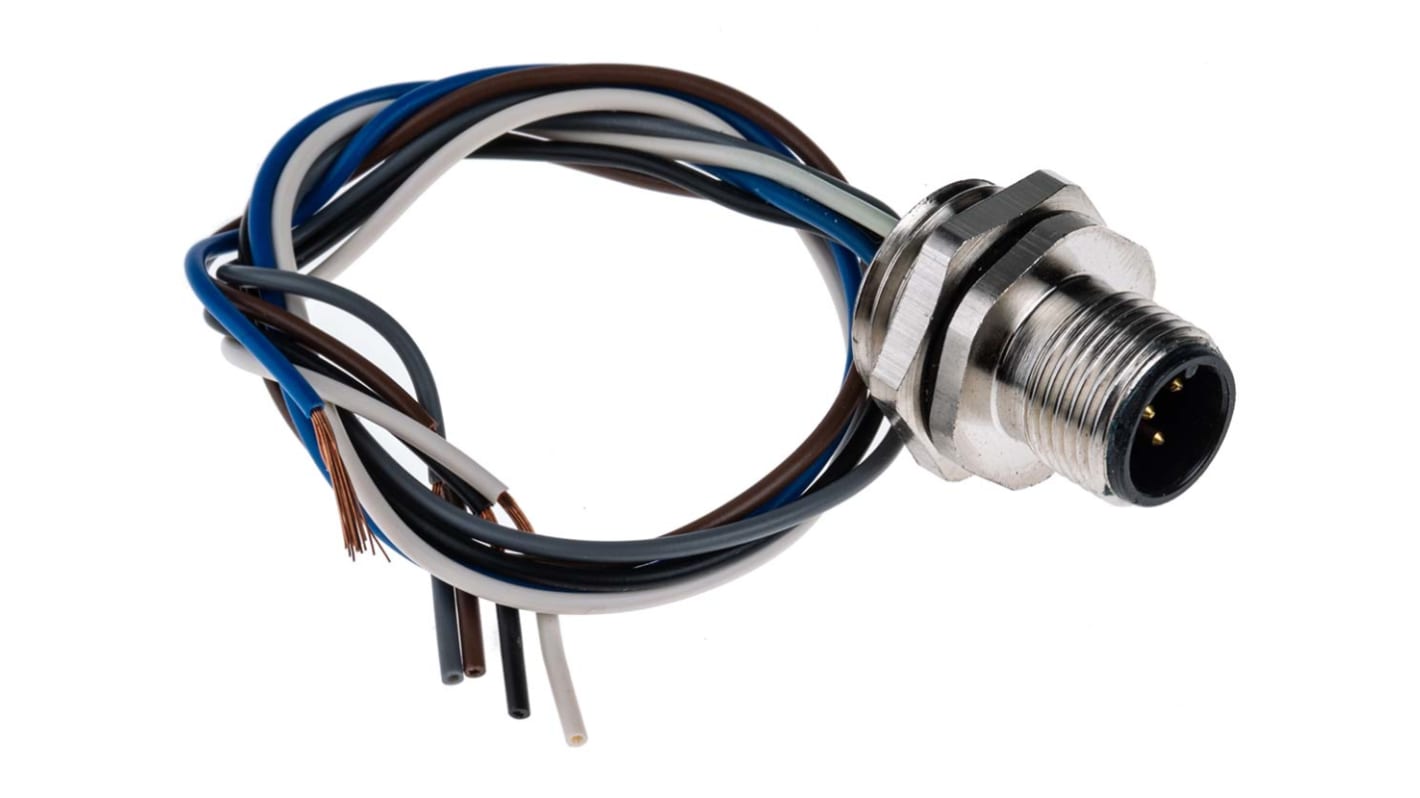

RS PRO Connector, 5 contacts Panel Mount M12 Plug, Pre-Wired IP67

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

RS Pro M12 Panel Mount Connectors

From RS PRO, a selection of M12 circular connectors designed for panel mounting. The sensor style connectors have an M12 threaded interface and industry standard A coding preventing miss-mating. Conveniently pre-terminated with partially stripped wires the RS PRO range are easy to incorporate into any automation or sensory application. With an IP67 ingress rating, the RS PRO panel mount connectors are ideally suited to harsh environments that demand a more rugged connection solution.

Features & Benefits

• IP67
• Neoprene O-ring
• Nylon 66 contact carrier
• PG9 clamp nut
• Pre-wired with 100, 200, 300, or 400 mm partially stripped cable
• Straight plugs and sockets
• 4, 5, 8 and 12 pole versions

Applications

The RS PRO series of M12 panel mount connectors are generally used in industrial applications. They are typically used when connecting to sensors and actuators. Some of the most popular areas are

• Instrumentation
• Process control
• Robotics
• Assembly lines
• Factory automation
• Industrial automation

Environment

This series of pre-wired circular connectors have an IP67 ingress rating and waterproof when plugged in. This means they are sealed from dust and are protected from jets of water from all directions.

FAQ

Q - Are the connectors easy to terminate?
A – Yes, the RS PRO M12 connectors come terminated with partially stripped wire.
Q – How robust are the connectors?
A – This range of panel mount connectors are manufactured from high-grade materials and are robust and extremely reliable.

Specifications
Attribute Value
Number of Contacts 5
Mounting Type Panel Mount
Plug/Socket Plug
Connector Size M12
Termination Method Pre-Wired
Current Rating 4.0A
IP Rating IP67
Contact Gender Male
Voltage Rating 60.0 V
Mating Type Threaded
Body Orientation Straight
Housing Material Nickel
Contact Plating Gold
Contact Material Copper
191 In stock - FREE next working day delivery available
Price Each
£ 8.82
(exc. VAT)
£ 10.58
(inc. VAT)
Units
Per unit
1 - 4
£8.82
5 - 9
£8.36
10 - 49
£7.93
50 +
£7.04
