Amphenol Industrial Circular Connector, 17 Contacts, Cable Mount, M23 Connector, Plug, Male, IP67, MotionGrade Series
- RS Stock No.:
- 696-4313
- Mfr. Part No.:
- MA1EAP1700
- Brand:
- Amphenol Industrial
Available to back order for despatch 13/08/2024
Added
Price Each
£8.54
(exc. VAT)
£10.25
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £8.54 |
| 5 - 24 | £8.31 |
| 25 - 49 | £8.08 |
| 50 + | £7.87 |
- RS Stock No.:
- 696-4313
- Mfr. Part No.:
- MA1EAP1700
- Brand:
- Amphenol Industrial
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

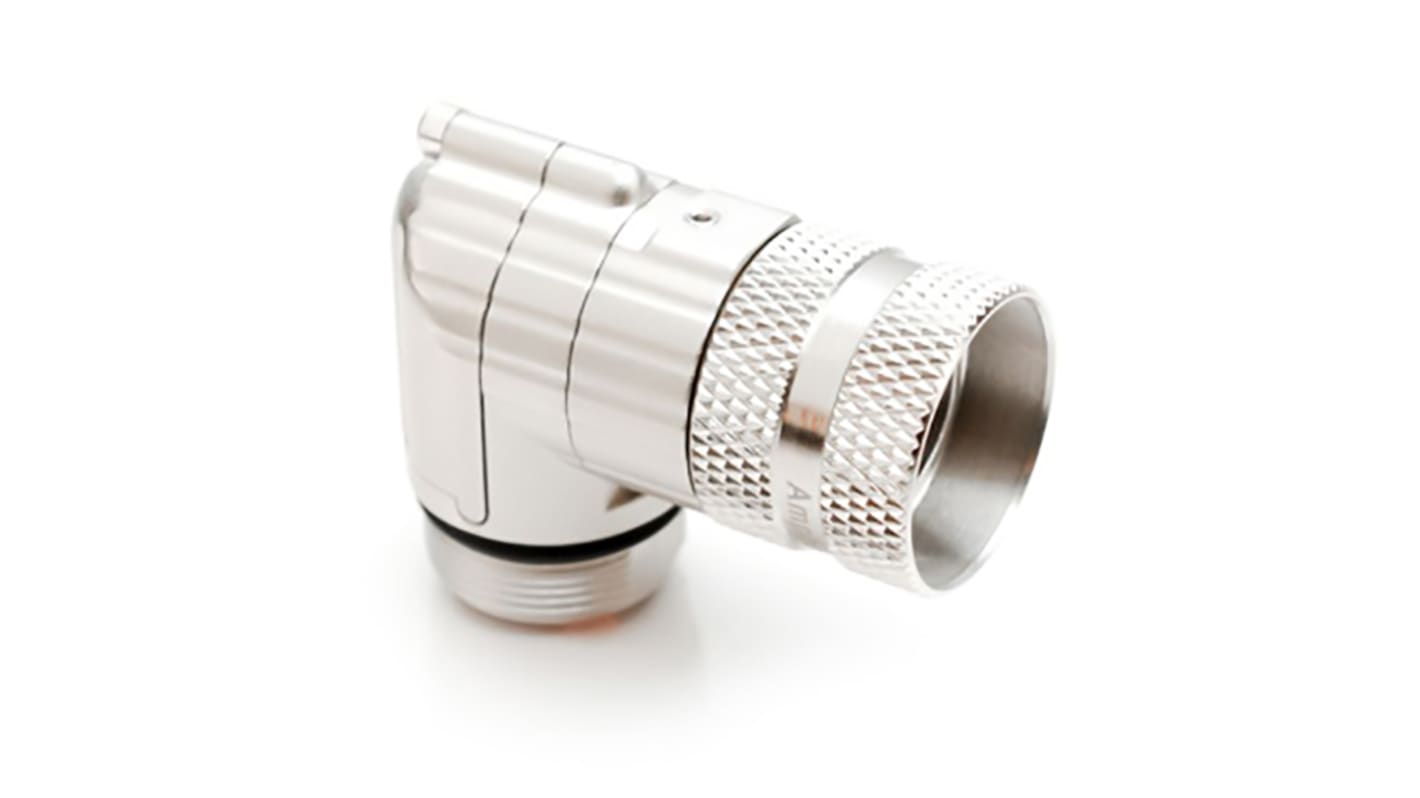

MotionGrade M23 A Right Angle Plug
Note
Supplied without crimp contacts. See 696-4461 and range.
Amphenol MotionGrade Series
The Amphenol MotionGrade offers superior shielding quality components coupled with a simplistic design provide maximum EMI/RFI shielding capabilities while reducing assembly preparation times.
The overall design construction allows for one-step process of contact extraction.
An integrated contact locking system ensures ease of use and definitive contact integrity upon insertion.
The contacts offer a 360° mating surface around the pin.
Amphenol's RockSolid contact ensures longer contact life, lower contact resistance, immunizes against shock and vibration all while maintaining low insertion and extraction forces.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 17 |
| Mounting Type | Cable Mount |
| Connector Size | M23 |
| Plug/Socket | Plug |
| Contact Gender | Male |
| Termination Method | Crimp |
| IP Rating | IP67 |
| Series | MotionGrade |
| Body Orientation | Right Angle |
| Voltage Rating | 125 V |
| Housing Material | Zinc |
| Contact Plating | Gold |
| Maximum Operating Temperature | +130°C |
| Minimum Operating Temperature | -20°C |
| Contact Material | Brass |
