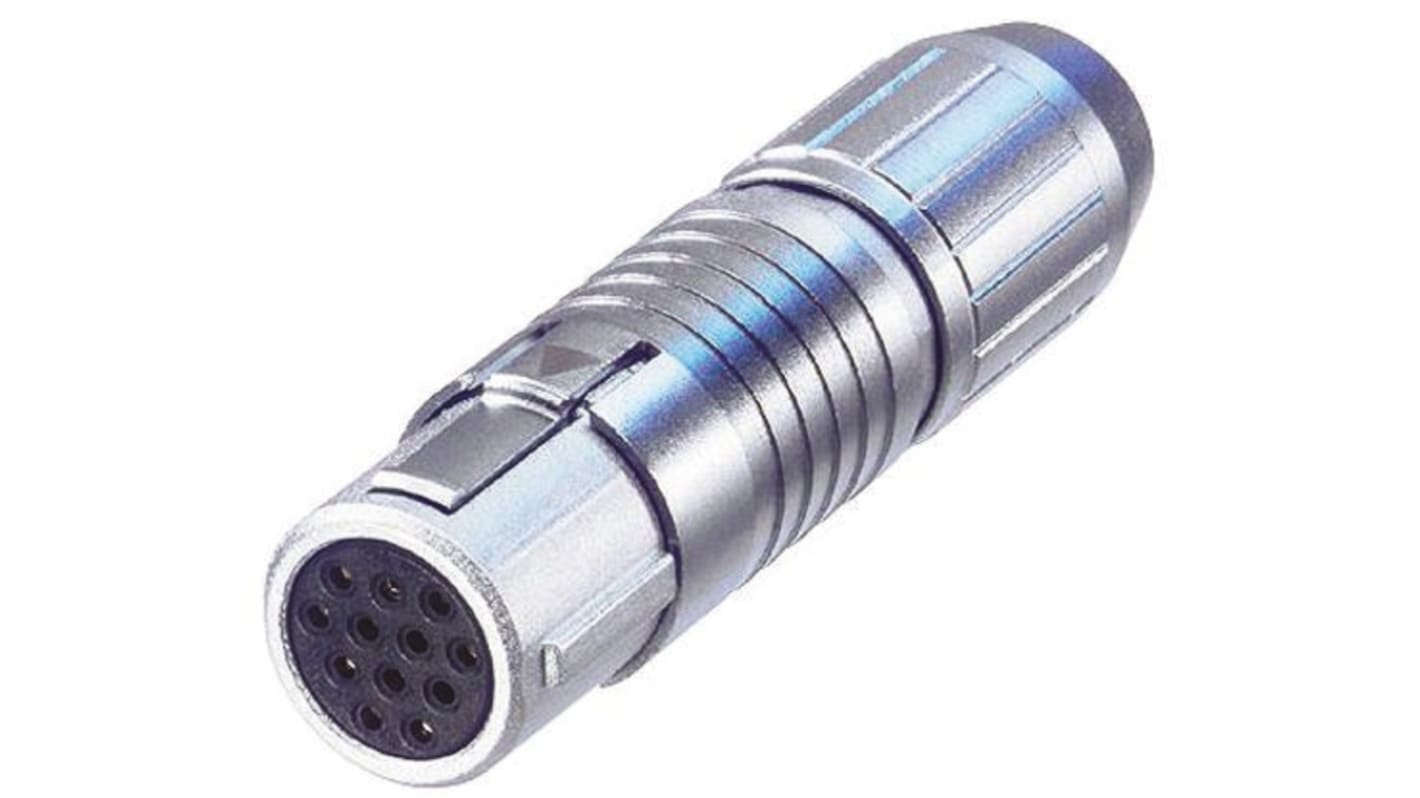

Neutrik Circular Connector, 12 Contacts, Cable Mount, Miniature Connector, Socket, Female, miniCon Series
- RS Stock No.:
- 696-3929
- Mfr. Part No.:
- MSCF12
- Brand:
- Neutrik
Available to back order for despatch 25/07/2024
Added
Price Each
£15.10
(exc. VAT)
£18.12
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £15.10 |
| 10 - 49 | £14.63 |
| 50 - 99 | £14.18 |
| 100 - 249 | £13.77 |
| 250 + | £13.38 |
- RS Stock No.:
- 696-3929
- Mfr. Part No.:
- MSCF12
- Brand:
- Neutrik
Legislation and Compliance
- COO (Country of Origin):
- LI
Product Details
Neutrik Circular Connector
The Neutrik MSCF series 12-contacts female cable circular connector has a socket in-line connection. This cable mount connector has a voltage rating is 50VAC with a current rating of 3A per contact. This connector features a push-pull locking system for an easy and secure connection with an excellent cost/performance ratio. It is made from brass/zinc die-cast with gold-plated chuck type strain relief contacts. The miniCON with its flexible and compact design is perfectly suitable for multipin/industrial applications.
Note:
Cable-Ø 3mm-5mm (grey chuck), 5mm-7mm (white chuck)
Note:
Cable-Ø 3mm-5mm (grey chuck), 5mm-7mm (white chuck)
Features and Benefits
Straight body orientation
Solder termination
Easy assembly
Operation temperature ranging between -30°C and 80°C
Rugged and precisely machined all metal design
Wire size is 20AWG
Solder termination
Easy assembly
Operation temperature ranging between -30°C and 80°C
Rugged and precisely machined all metal design
Wire size is 20AWG
Applications
Communication systems
Telecommunication
Test equipment and measurement
Telecommunication
Test equipment and measurement
Certifications
IEC 68-2-20
IP5x rated
UL approved
IP5x rated
UL approved
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 12 |
| Mounting Type | Cable Mount |
| Connector Size | Miniature |
| Plug/Socket | Socket |
| Contact Gender | Female |
| Termination Method | Solder |
| Current Rating | 3.0A |
| Series | miniCon |
| Body Orientation | Straight |
| Voltage Rating | 50.0 V |
| Mating Type | Push-Pull |
| Housing Material | Brass, Zinc |
| Strain Relief | Yes |
| Contact Plating | Gold |
| Contact Material | Bronze |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -30°C |
