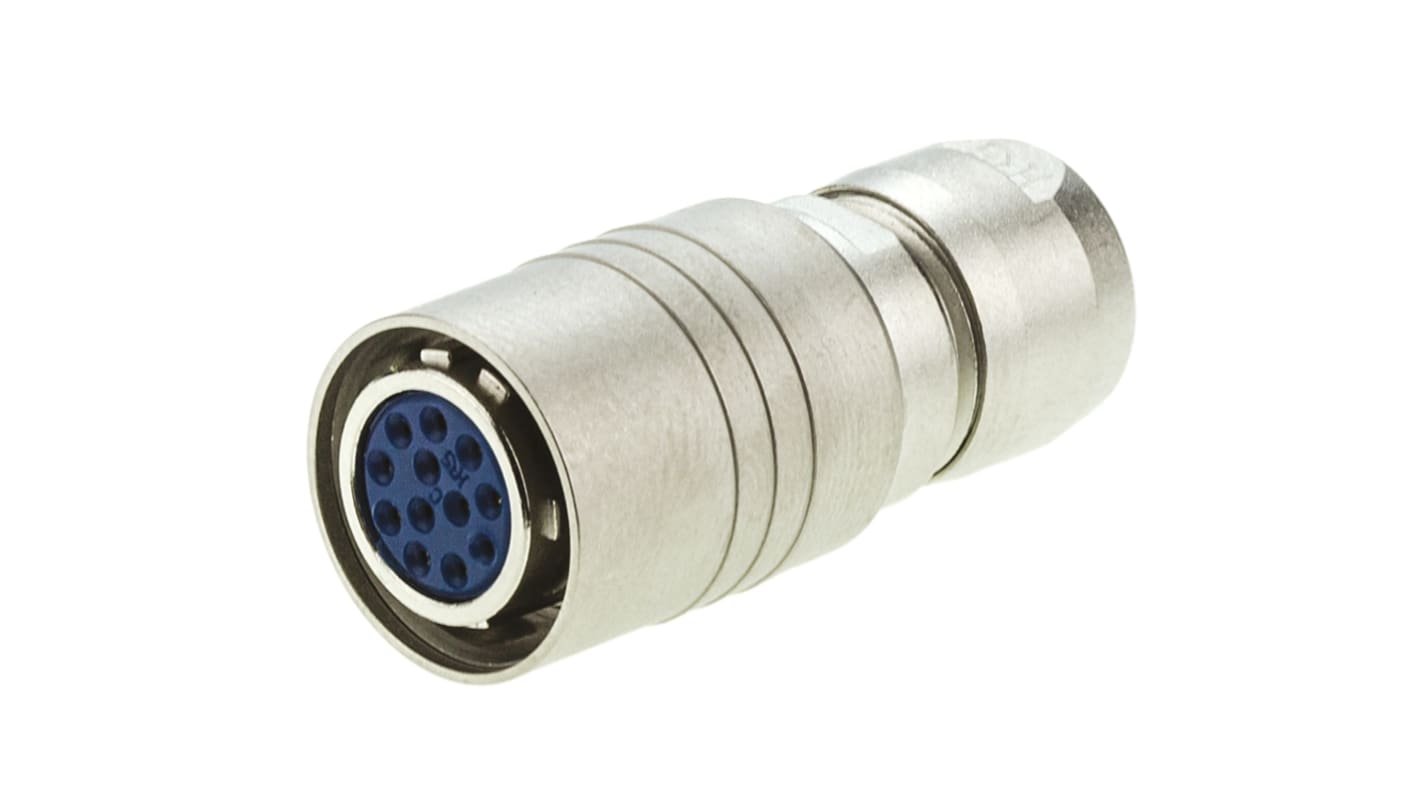

Hirose Circular Connector, 12 Contacts, Cable Mount, Miniature Connector, Plug, Female, HR10 Series

RS Stock No.:: 608-0232
Mfr. Part No.:: HR10-10P-12S (73)
Brand:: Hirose

Hirose Circular Connector, 12 Contacts, Cable Mount, Miniature Connector, Plug, Female, HR10 Series

126 In stock - FREE next working day delivery available

Added

Price Each

£29.69

(exc. VAT)

£35.63

(inc. VAT)

Units	Per unit
1 - 4	£29.69
5 - 24	£28.51
25 - 49	£27.41
50 - 99	£26.40
100 +	£25.45

RS Stock No.:: 608-0232
Mfr. Part No.:: HR10-10P-12S (73)
Brand:: Hirose

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Push-Pull Connectors

A highly durable and reliable range of compact, subminiature connectors featuring easy action "push-pull" latching mechanism for quick connecting and disconnecting. A five key polarisation system helps prevent misconnections. Solder bucket contacts.

Note

A cable mounting socket will mate with a jack plug or panel mounting plug. A cable mounting plug will mate with a jack socket or panel mounting socket.

Video Connectors

Specifications

Attribute	Value
Number of Contacts	12
Mounting Type	Cable Mount
Connector Size	Miniature
Plug/Socket	Plug
Contact Gender	Female
Termination Method	Solder
Current Rating	2.0A
Body Orientation	Straight
Series	HR10
Voltage Rating	100 V
Shell Size	10
Mating Type	Push-Pull
Housing Material	Brass, Zinc
Contact Plating	Gold
Contact Material	Bronze
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
