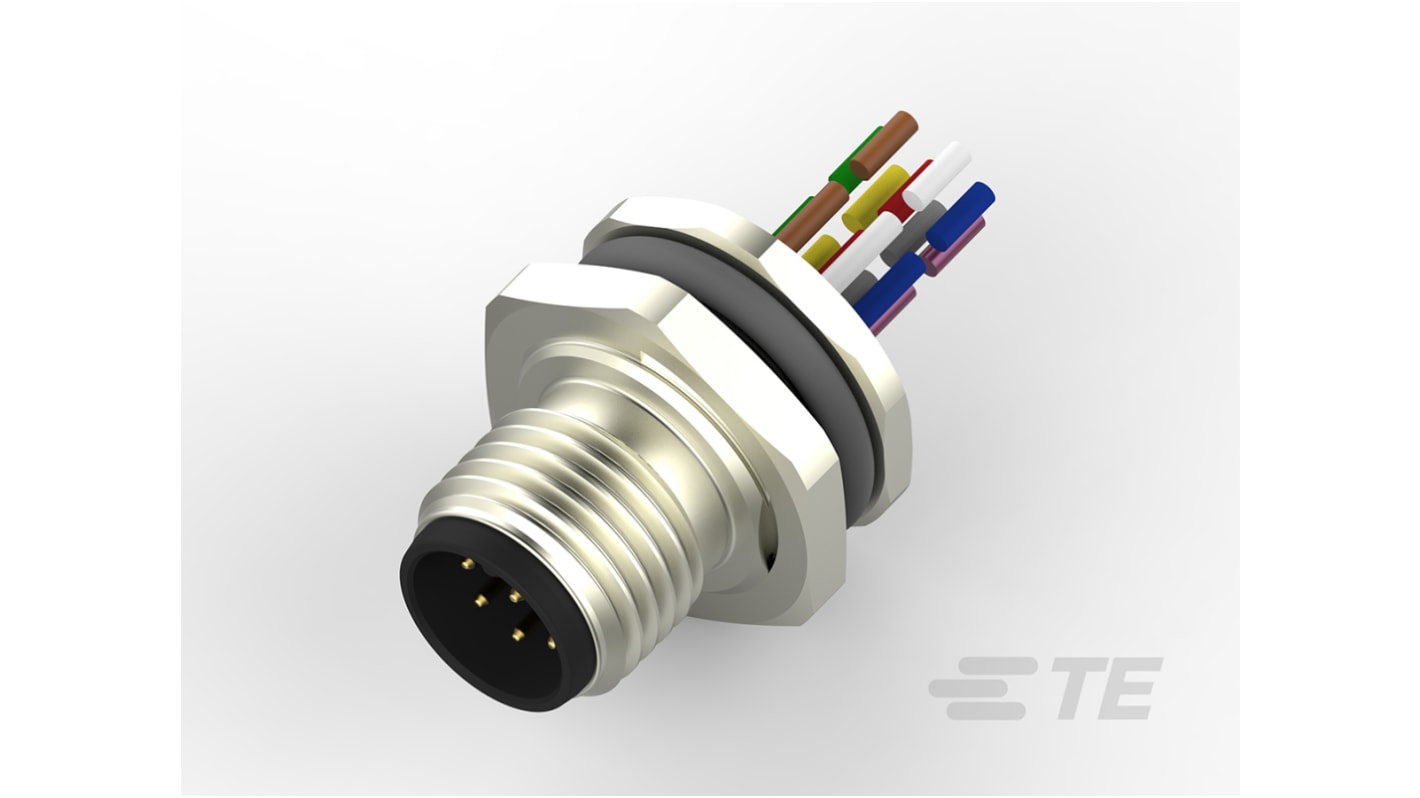

TE Connectivity Circular Connector, 8 contacts Panel Mount M12 Plug, Wire Lead IP67

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity extends its M12 connector portfolio with 8 and 12 positions for direct mounting onto PCBs and panels to complement field-installable connector and cable assembly solutions. The new plug-in PCB connectors are easy to install and help to increase production efficiency and decrease installation cost for installers in industrial automation, machinery, industrial ethernet, sensors, and other areas where IP67 protection is needed. The high pin density on the 12-pin connector, in particular, provides customers with a very compact design. Adding this product series to our portfolio allows us to better serve our customers and accommodate their needs for higher signal and data transmission in harsh industrial environments.

Compact design with high density connection
Plug-&-Play mating for easy and fast installation
Quick and reliable connection for PCB and panel mount
Available for 8 & 12 positions
Dust-tightness and water-proof for at least 1m
Application
Machinery
Automation Integration
Vision System
Semiconductor manufacturing
Factory automation machines

Specifications
Attribute Value
Number of Contacts 8
Mounting Type Panel Mount
Plug/Socket Plug
Connector Size M12
Termination Method Wire Lead
Shell Size 18
Current Rating 2.0A
IP Rating IP67
Contact Gender Male
Voltage Rating 30.0 V
Mating Type Keyed
Housing Material Nylon
Contact Material Copper
Pole Format 8P
37 In stock - FREE next working day delivery available
Price Each
£ 8.65
(exc. VAT)
£ 10.38
(inc. VAT)
Units
Per unit
1 - 9
£8.65
10 +
£7.90
