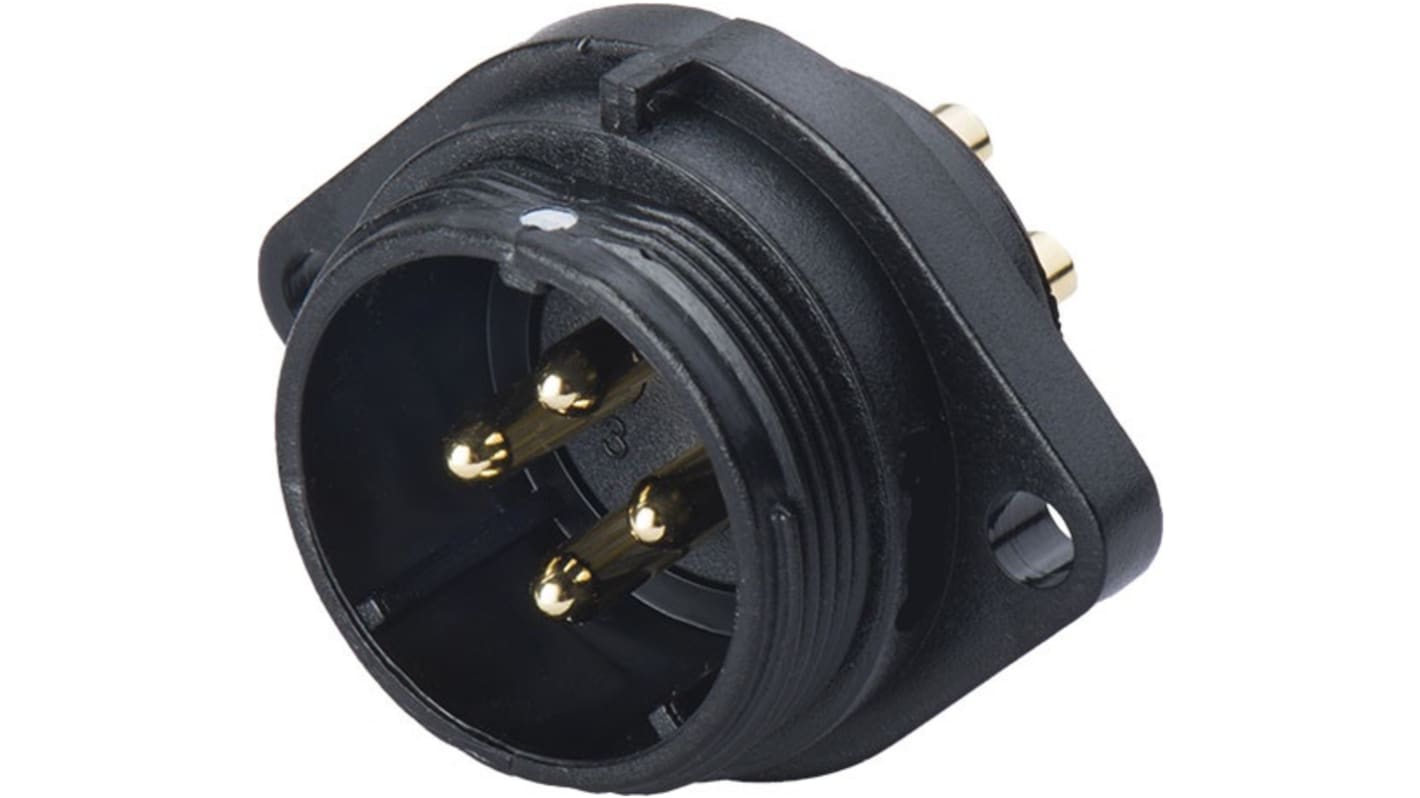

RS PRO Circular Connector, 3 Contacts, Panel Mount, Plug, Male, IP68

RS Stock No.:: 124-6681
Brand:: RS PRO

RS PRO Circular Connector, 3 Contacts, Panel Mount, Plug, Male, IP68

4 In stock - FREE next working day delivery available

Added

Price Each

£18.77

(exc. VAT)

£22.52

(inc. VAT)

Units	Per unit
1 - 9	£18.77
10 - 49	£17.83
50 - 99	£16.89
100 +	£15.97

RS Stock No.:: 124-6681
Brand:: RS PRO

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

2 Hole Flange Mount Plug 25A Circular Connectors (Threaded) IP68

From RS Pro, these threaded plugs are serious contenders for your application. This particular model has a bigger and stronger shell complimented by its 2 hole flange-mounted connection. That coupled with the IP68 rating, makes sure that this industrial connector excels in harsh environments. When choosing a male connector, this version should really be one you consider.

Features and Benefits

2 way, 3 way and 5 way available
Cable outer diameter acceptance: 4.5 mm - 7 mm
Screw contact termination
High-quality Nylon66 shell
Panel hole cutout diameter: 21 mm

Specifications

Attribute	Value
Number of Contacts	3
Mounting Type	Panel Mount
Connector Size	Standard
Plug/Socket	Plug
Contact Gender	Male
Termination Method	Screw
IP Rating	IP68
Current Rating	10A
Body Orientation	Straight
Voltage Rating	500 V
Mating Type	Threaded
Housing Material	Polymer
Pole Format	3P
Contact Plating	Gold
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-25°C
Contact Material	Brass
