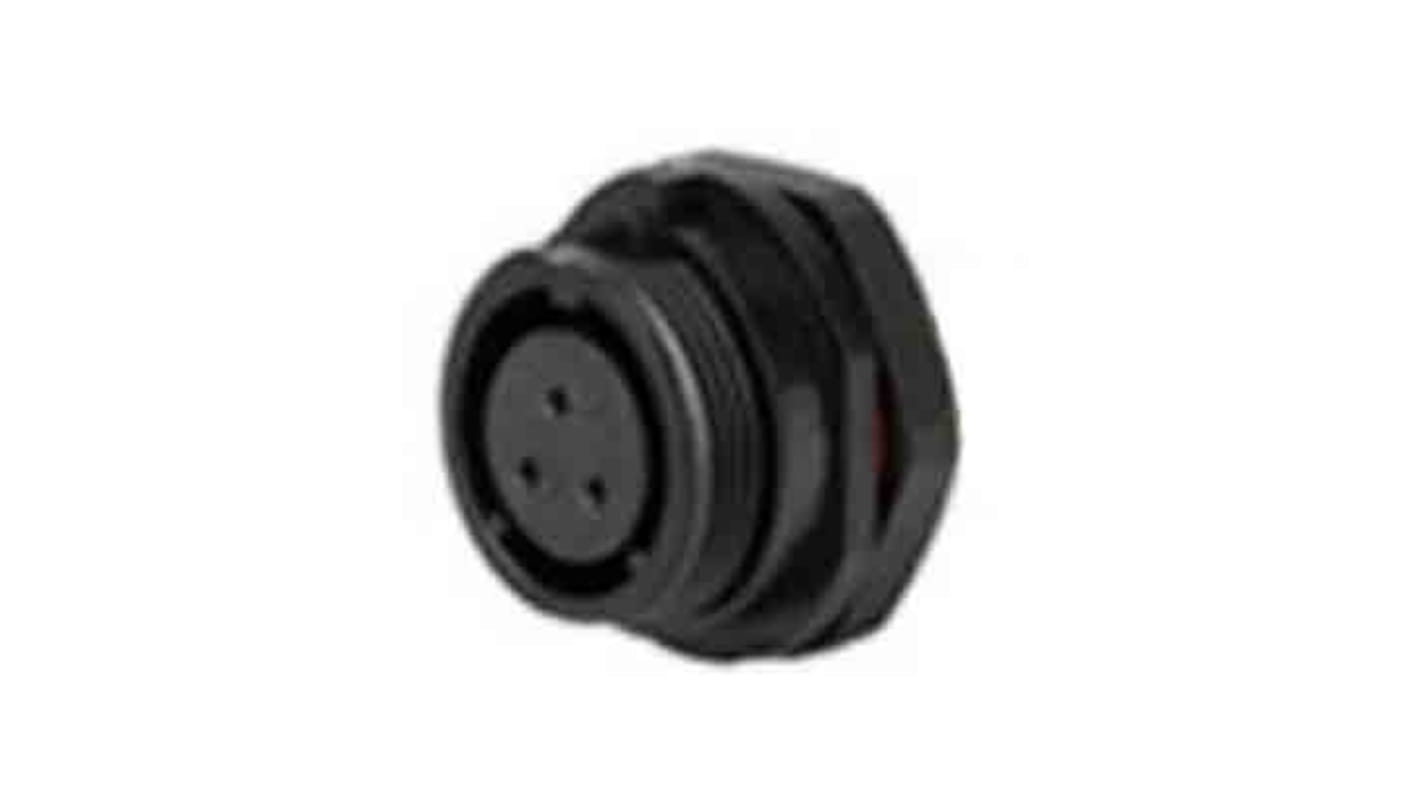

RS PRO Connector, 3 contacts Panel Mount Socket, Crimp IP68

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Front Mount Socket 10A/5A Circular Connectors (Threaded) IP68

From RS Pro, these threaded sockets are serious contenders for your application. This particular model has a bigger and stronger shell. That coupled with the IP68 rating excels in harsh environments. When choosing a female connector, this version should really be one you consider.

Features & Benefits

• 2 way, 3 way and 4 way available
• Cable outer diameter acceptance: 6 mm - 10 mm
• AWG 14
• Crimp contact termination
• High-quality Nylon66 shell
• Panel hole cutout diameter: 17 mm
• Front mounted for your convenience

RS Pro (Threaded)

The RS Pro series of threaded IP68 connectors are perfect for your application. These robust connectors can be used for both cable to cable (inline) and cable to panel-mount connections. With its IP68 rating, each product is excellent within harsh environments, giving you peace of mind. All models are highly reliable and excellent quality.

Specifications
Attribute Value
Number of Contacts 3
Plug/Socket Socket
Mounting Type Panel Mount
Connector Size Standard
Termination Method Crimp
Current Rating 10.0A
IP Rating IP68
Contact Gender Female
Voltage Rating 500.0 V
Mating Type Threaded
Body Orientation Straight
Housing Material Polymer
Contact Plating Gold
Contact Material Brass
Pole Format 3P
21 In stock - FREE next working day delivery available
Price Each
£ 4.42
(exc. VAT)
£ 5.30
(inc. VAT)
Units
Per unit
1 - 9
£4.42
10 - 49
£4.18
50 - 99
£3.98
100 +
£3.74
