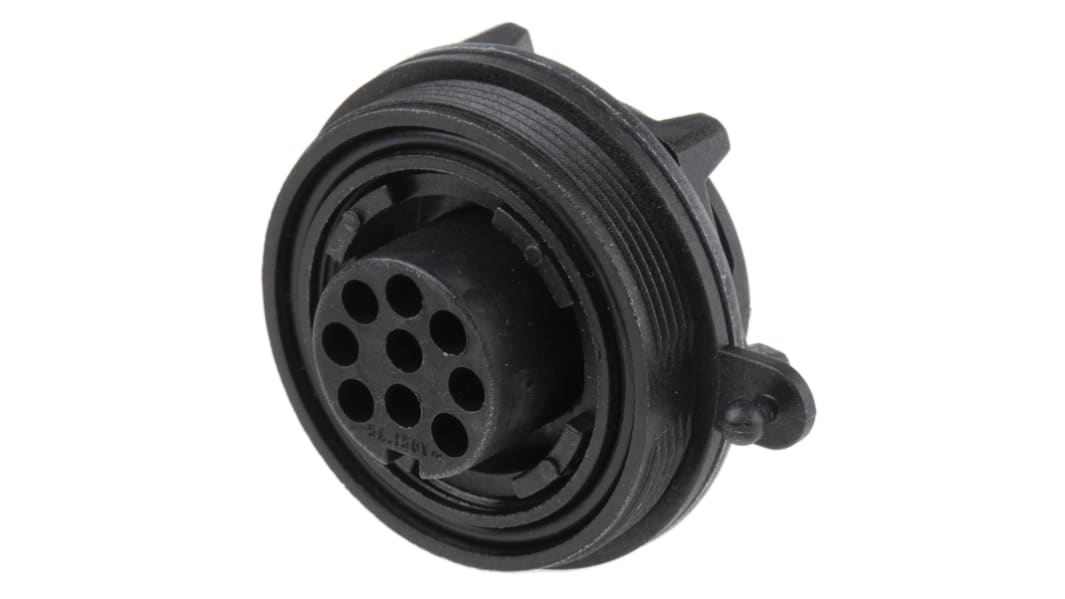

Bulgin Circular Connector, 9 Contacts, Panel Mount, Socket, Female, IP68, Standard Buccaneer Series
- RS Stock No.:
- 452-114
- Mfr. Part No.:
- PX0727/S
- Brand:
- Bulgin
Available to back order for despatch 14/08/2024
Added
Price Each
£19.20
(exc. VAT)
£23.04
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £19.20 |
| 10 - 49 | £17.63 |
| 50 - 99 | £16.61 |
| 100 + | £15.32 |
Alternative
This product is not currently available. Here is our alternative recommendation.
Bulgin Circular Connector, 9 Contacts, Flange Mount, Socket, Female, IP68, Standard Buccaneer Series
- RS Stock No.
- 147-3055
Price Each
£18.92
(exc. VAT)
£22.70
(inc. VAT)
- RS Stock No.:
- 452-114
- Mfr. Part No.:
- PX0727/S
- Brand:
- Bulgin
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
Bulgin Buccaneer Standard Sealed Power Connectors, Rear Panel Mounting
From Bulgin, the Buccaneer Standard Series of low profile panel connectors are robust and versatile connectors for power management solutions. With a screw locking mating system that ensures a secure connection, these compact connectors are ideal for use in challenging conditions.
With no special tooling needed for termination, the Buccaneer Standard series connectors are easy to assemble, even in the field. The panel connectors have a single hole fixing with an easy to use jam nut.
The connectors also feature a positive locking mating system which means the connector cannot be mis-matched.
With no special tooling needed for termination, the Buccaneer Standard series connectors are easy to assemble, even in the field. The panel connectors have a single hole fixing with an easy to use jam nut.
The connectors also feature a positive locking mating system which means the connector cannot be mis-matched.
Environment
The Standard Series of Buccaneer connectors are protected to IP68 when mated. This means they are dust tight, and resistant against particle ingress such as dust and sand. They are also waterproof, meaning they are protected from liquid ingress up to the point of submersion for a limited time.
Features and Benefits
• IP68
• UL94HB Housing
• Insulation Resistance of >104 MΩ @ 500 V dc
• Positive locking keyways
• Front Panel Mounting
• UL94HB Housing
• Insulation Resistance of >104 MΩ @ 500 V dc
• Positive locking keyways
• Front Panel Mounting
Applications
Due to their excellent environmental resistance properties, Buccaneer connectors are ideal for harsh industrial environments and automotive applications. Their excellent resistance to liquid ingress also makes them suitable for marine applications.
FAQ
Q: Are there accessories available for this connector?
A: There are connector caps available for Standard Buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly.
Q: How durable is the connector?
A: The Standard Buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oils and saltwater.
Q: What are the mating requirements of this connector?
A: The Buccaneer standard series panel connectors mate with corresponding flex cable connectors.
Q: Are contacts supplied with this connector?
A: Panel connectors with 2 to 9 poles are supplied with contacts. The 12 to 25 pole connectors are supplied without contacts.
A: There are connector caps available for Standard Buccaneer connectors, which maintain the IP68 sealing when mated pairs are uncoupled. The cap can also be used as a tool to aid the removal and refitting of inserts during assembly.
Q: How durable is the connector?
A: The Standard Buccaneer series of power connectors feature glass filled polyamide moulded housing that is resistant to dust, oils and saltwater.
Q: What are the mating requirements of this connector?
A: The Buccaneer standard series panel connectors mate with corresponding flex cable connectors.
Q: Are contacts supplied with this connector?
A: Panel connectors with 2 to 9 poles are supplied with contacts. The 12 to 25 pole connectors are supplied without contacts.
Approvals
CSA; UL; VDE
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 9 |
| Mounting Type | Panel Mount |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Contact Gender | Female |
| Termination Method | Crimp |
| IP Rating | IP68 |
| Current Rating | 5.0A |
| Body Orientation | Straight |
| Series | Standard Buccaneer |
| Voltage Rating | 150.0 V |
| Mating Type | Threaded |
| Shell Size | 38 |
| Housing Material | Polymer |
| Contact Plating | Tin |
| Strain Relief | No |
| Contact Material | Copper |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
- RS Stock No.:
- 452-114
- Mfr. Part No.:
- PX0727/S
- Brand:
- Bulgin
