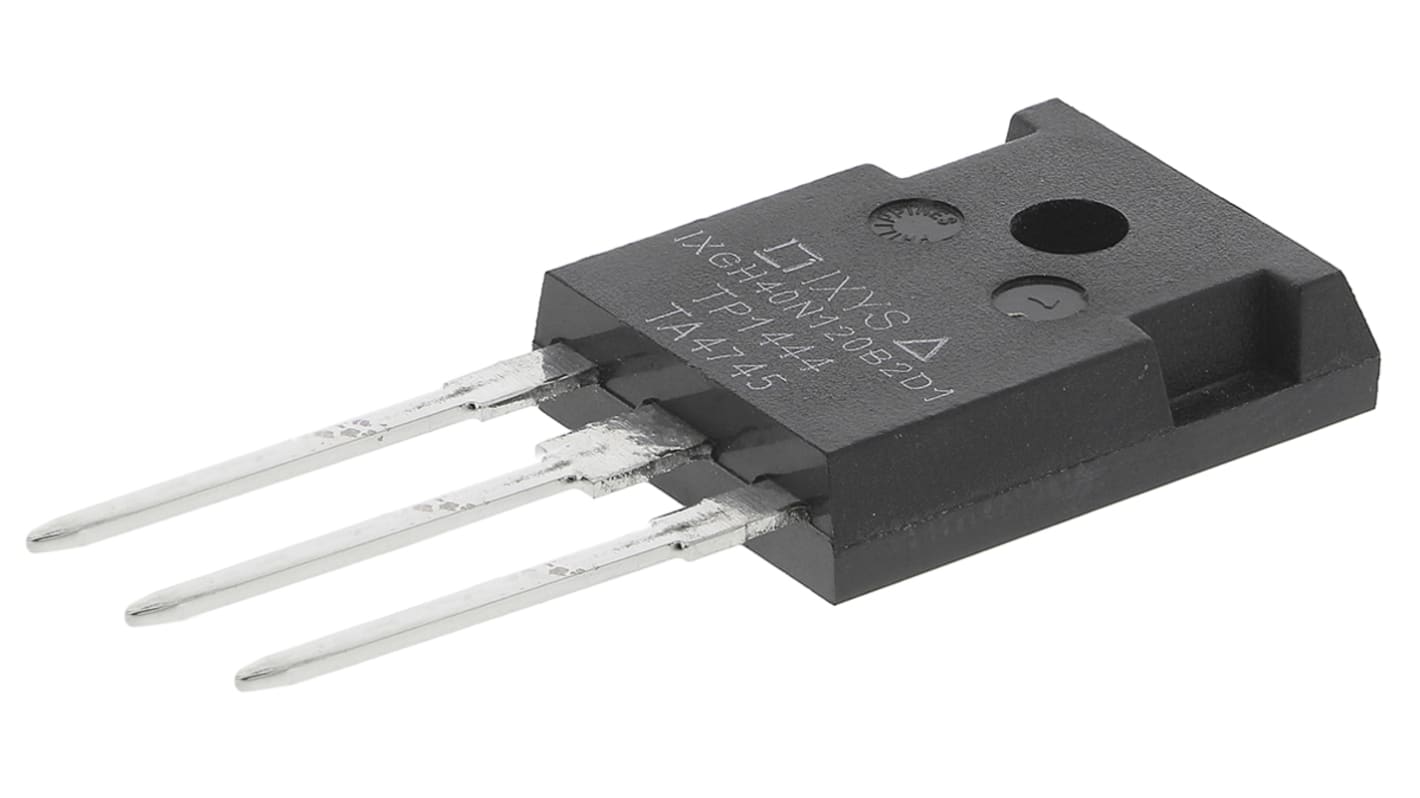

IXYS IXGH40N120B2D1 IGBT, 75 A 1200 V, 3-Pin TO-247

  • RS Stock No. 192-988
  • Mfr. Part No. IXGH40N120B2D1
  • Brand IXYS
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

IGBT Discretes, IXYS

IGBT Discretes & Modules, IXYS

The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.

Specifications
Attribute Value
Maximum Continuous Collector Current 75 A
Maximum Collector Emitter Voltage 1200 V
Maximum Gate Emitter Voltage ±20V
Package Type TO-247
Mounting Type Through Hole
Channel Type N
Pin Count 3
Transistor Configuration Single
Dimensions 16.26 x 5.3 x 21.46mm
Maximum Operating Temperature +150 °C
Minimum Operating Temperature -55 °C
19 In stock - FREE next working day delivery available
Price Each
£ 11.46
(exc. VAT)
£ 13.75
(inc. VAT)
Units
Per unit
1 - 4
£11.46
5 - 19
£10.89
20 - 49
£10.42
50 - 99
£9.08
100 +
£8.84
